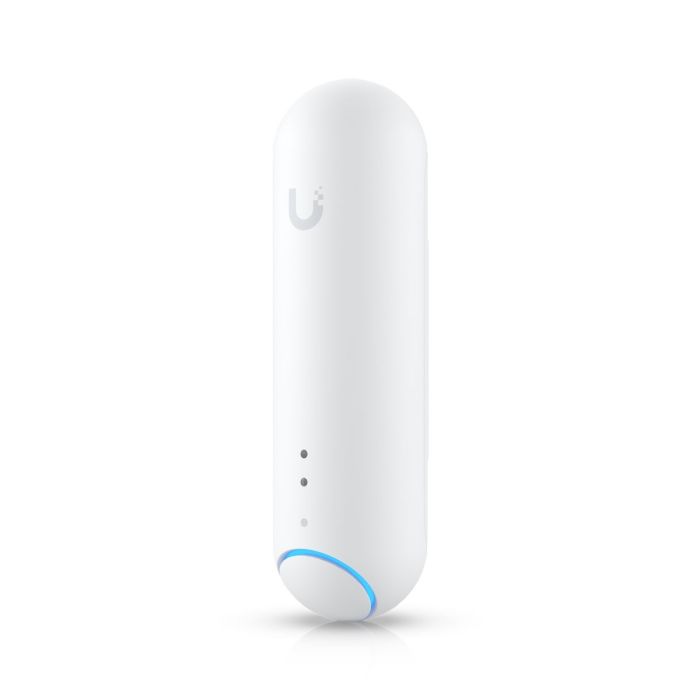

Ubiquiti All-In-One Sensor - Multifunction motion, door opening and temperature sensor for UniFi Protect (UP-Sense)
Ubiquiti All-In-One Sensor is a wireless UniFi Protect sensor for detecting motion, opening, temperature, humidity and light. It supports Bluetooth 5.0/BLE as well as alarm sound and water detection.
Ubiquiti All-In-One Sensor – Multifunction sensor for UniFi Protect
Ubiquiti All-In-One Sensor (UP-SENSE) is a battery-powered sensor for monitoring motion, door and window opening, and changes in environmental conditions in UniFi Protect. The device uses Bluetooth 5.0/BLE and can communicate with or a compatible Bluetooth-enabled UniFi Access Point in indoor installations.
UP-SENSE has motion, temperature, humidity and light sensors, as well as alarm sound detection. The magnetic sensor detects the opening and closing of doors or windows, while the built-in accelerometer can monitor the position of a garage door. The device also supports water detection (the flood sensor adapter is available only in the 3-Pack).
The enclosure is made of polycarbonate. The sensor measures ⌀24 × 83,5 mm and weighs 50,2 g. It can be installed on a flat surface or in a corner using the included mounts with adhesive backing. Management and event handling are provided through UniFi Protect on the web and in the iOS and Android apps. BLE coverage in long-range mode is comparable to Wi-Fi coverage.
The product is also available in a set .
Technical specifications
| Sensor functions | Motion sensor Magnetic sensor for door or window opening/closing Accelerometer for detecting garage door opening/closing Temperature sensor Humidity sensor Ambient light sensor Alarm sound sensor Water sensor |
| Additional components | Magnet Water sensor (3-pak version only) |
| Network interface | Bluetooth 5.0, BLE |
| BLE connectivity | Connection via SuperLink or a UniFi access point indoors Requires a connection to a current Bluetooth-enabled UniFi access point |
| Antennas | (1) 2,4 GHz |
| LED indicators | R/B/W |
| Buttons | (1) Factory reset |
| Web application | UniFi Protect |
| Mobile application | UniFi Protect iOS™ and Android™ |
| Dimensions | ⌀24 × 83,5 mm (⌀0,9 × 3,3″) |
| Weight | 50,2 g (1,8 oz) |
| Enclosure material | Polycarbonate |
| Mounting material | Flat surface mount: polycarbonate, adhesive backing Corner mount: polycarbonate, adhesive backing |
| Operating temperature | From 0 to 45°C (from 32 to 113°F) |
| Operating humidity | From 10 to 90%, non-condensing |
| NDAA compliance | Yes |
| Certifications | FCC, IC, CE, Anatel: 08492-22-08356 |
| Manufacturer SKU | UP-Sense |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 60 |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
