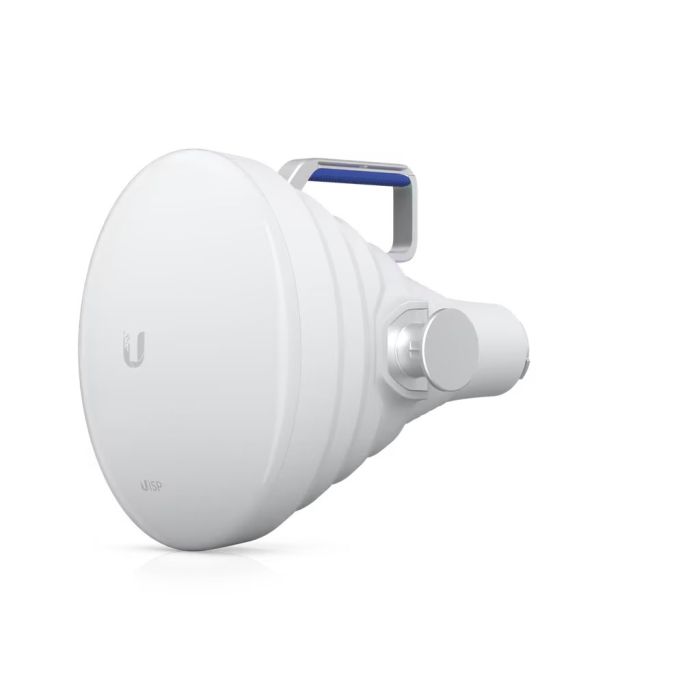

Ubiquiti UISP Horn - Point-to-Multipoint horn antenna (UISP-Horn)
| Manufacturer SKU | UISP-Horn |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 1 |
The Ubiquiti UISP Horn is a high-isolation PtMP horn antenna operating in the wide 5.15–6.875 GHz band. With a narrow beam (30°) and exceptionally high F/B ratio (up to 50 dB), it effectively eliminates interference in dense mast installations, ensuring stable transmission in challenging environments (IPX6).
Accessories and add-ons:
Ubiquiti UISP Horn – High-Isolation Point-to-Multipoint (PtMP) Horn Antenna
The Ubiquiti UISP Horn (UISP-Horn) is a horn antenna designed for building efficient Point-to-Multipoint (PtMP) base stations. The device operates over a wide operating frequency range from 5.15 GHz to 6.875 GHz. Thanks to its precise main beamforming, which is 30° wide in azimuth and 25° wide in elevation, the antenna performs well in environments with high levels of radio noise. This characteristic enables the installation of a large number of devices on a single telecommunications mast, minimizing the risk of mutual interference (co-location interference).
The device features highly effective signal isolation and a high front-to-back radiation ratio (F/B Ratio), typically reaching values between 45 and 50 dB. A maximum standing wave ratio (VSWR) of 2:1 guarantees stable transmission and high efficiency. The housing is made of aluminum alloy and polycarbonate with an IPX6 sealing rating. The design ensures full resistance to extreme weather conditions, including wind gusts of up to 200 km/h (90N load).
Key features:
-
Frequency range: 5.15 – 6.875 GHz.
-
Beam width (6 dB): 30° (azimuth), 25° (elevation).
-
Front-to-back isolation (F/B ratio): Typically 45–50 dB.
-
Maximum VSWR: 2:1.
-
Ingress protection class: IPX6.
-
Wind resistance: Up to 200 km/h (90 N load).
Compatible devices
Technical Specifications
| Frequency Range | 5.15 to 6.875 GHz |
| Beamwidth | Azimuth: 30° (6 dB) Elevation: 25° (6 dB) |
| Electrical Downtilt | 0° |
| Maximum VSWR | 2:1 |
| Front/Back Ratio (F/B) Ratio) | Typical: 45 to 50 dB Min.: 40 dB |
| NDAA Compliant | Yes |
Other |
|

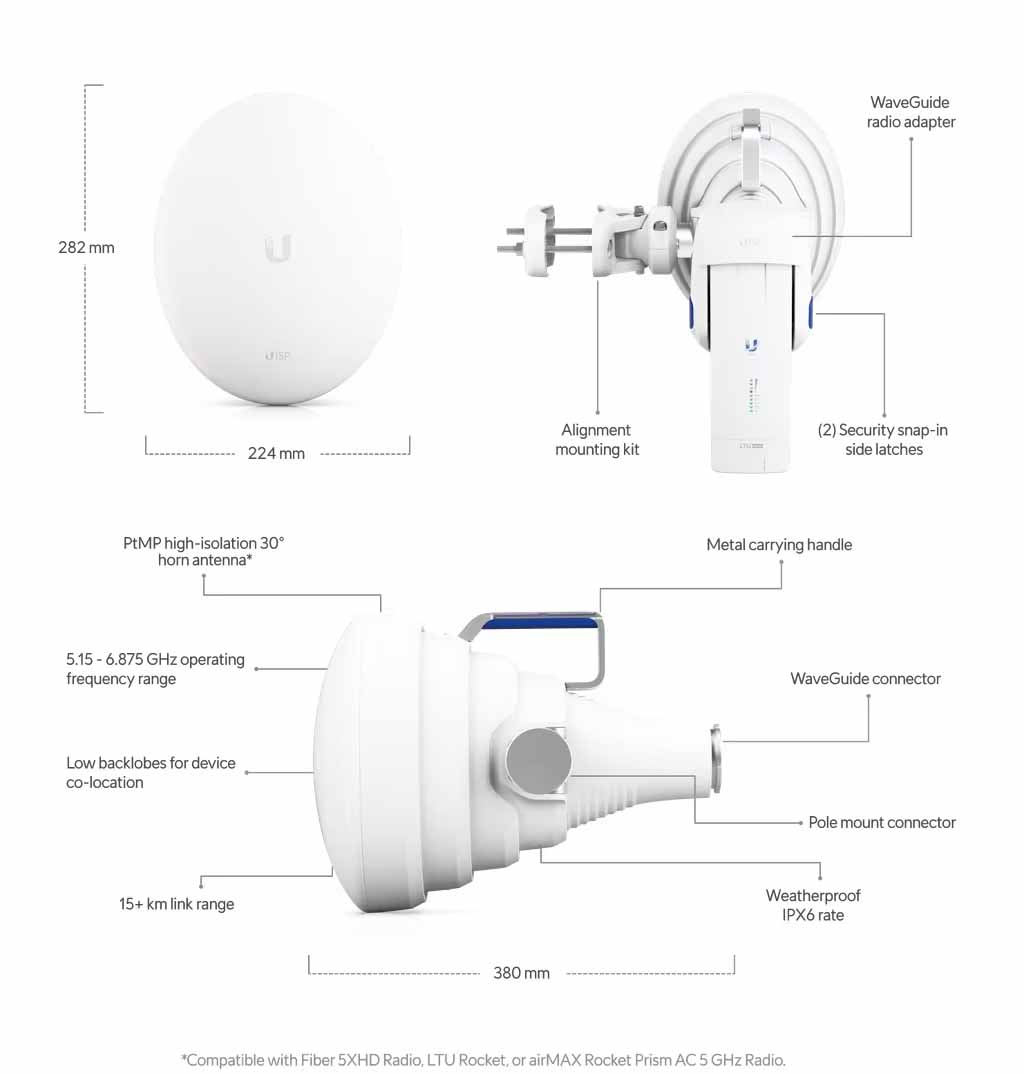

| Dimensions | 282 x 224 x 380 mm |
| Weight | Device: 3.06 kg Handle: 925 g |
| Material Housing | UV-stabilized polycarbonate, aluminum alloy |
| Wind resistance | Up to 200 km/h |
| Wind load | 90 N at 200 km/h |
| Mounting | Pole mount Alignment bracket (included) |
| Mechanical adjustment | Elevation: ±20° Azimuth: ±25° |
| Mounting diameter on pole | ⌀1 to 3" (⌀25 to 70 mm) |
| Ingress Protection Class | IPX6 |
| Manufacturer SKU | UISP-Horn |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 1 |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
