Ubiquiti Retrofit PSU 12V - UACC-Retrofit-PSU-12V
Ubiquiti UACC-Retrofit-PSU-12V Retrofit PSU 12V AC/DC power supply for UniFi Access Retrofit Hub 2, 12V DC @ 5A output, supports 12V SLA backup battery with built-in charger, compact design with LED status indicators
Ubiquiti Retrofit PSU 12V (UACC-Retrofit-PSU-12V)
Retrofit PSU 12V is a dedicated AC/DC power supply with a 12 V output voltage, designed to work with the UniFi Access Retrofit Hub 2 (UA-Retrofit-Hub-2) door controller. The device provides stable 12 V DC power with a maximum load of 5 A for access control system components, while also supporting connection of an optional 12 V SLA backup battery to maintain system operation during mains power outages.

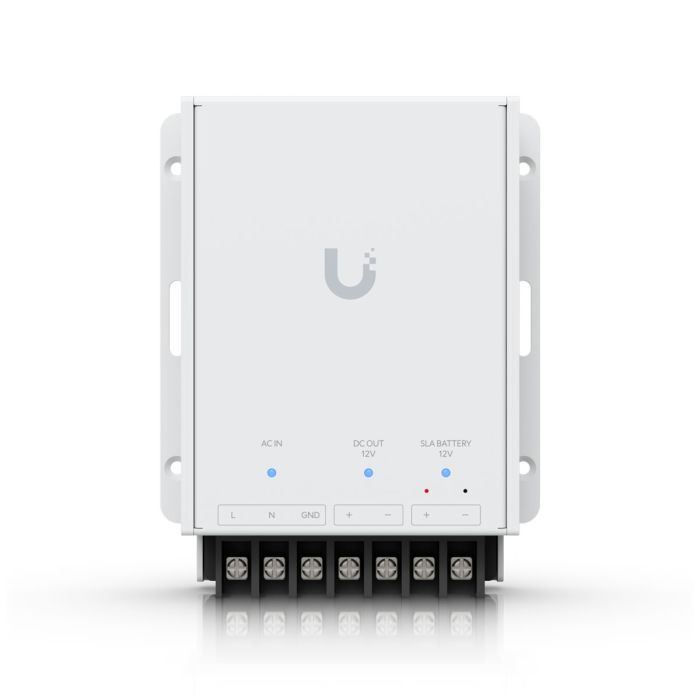

The Retrofit PSU 12V is equipped with dedicated connection terminals: a separate AC mains input, a DC output port for powering the Retrofit Hub, and an additional battery terminal for the SLA battery. The built-in charging circuit supplies a regulated charging current (0.5 A), keeping the connected battery in a fully charged state. The device features compact dimensions (127 × 76 × 35 mm) and includes three status LEDs for monitoring system power conditions.
Key Features
- Dedicated 12 V DC power supply for the UniFi Access Retrofit Hub 2 (UA-Retrofit-Hub-2).
- Universal input: 100–240 V AC, 50/60 Hz (compatible with global electrical systems).
- DC output: 12 V DC with a maximum load of up to 5 A (sufficient power for the hub and connected devices).
- Support for 12 V SLA backup battery for emergency power (integrated charging module – charging current up to 0.5 A).
- Separate connectors: (1) AC input, (1) DC output to hub, and (1) additional DC input/output for battery – simplified system cabling.
- Built-in 3 status LEDs for real-time monitoring of the device's power status.
Technical Specifications
Interfaces
| AC Power Input | (1) AC input |
| DC Power Output | (1) 12 V DC output (to Retrofit Hub) |
| Battery Connector | (1) 12 V DC input/output (for SLA battery) |
| Status LEDs | (3) status |
Hardware Specifications
| Dimensions | 127 × 76 × 35 mm (5 × 3 × 1.4″) |
| Weight | 350 g (12.3 oz) |
| Operating Temperature | -10 °C to 40 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 10 % to 90 % non-condensing |
| NDAA Compliance | Yes |
| Certifications | CE, FCC, IC |
Power
| Power Input Method | 100–240 V AC, 50/60 Hz (input) |
| Backup Battery | 12 V SLA (charging current 0.5 A) |
| DC Output | 12 V DC @ 5 A |
| Maximum Power Consumption | 80 W |
| Efficiency | 85 % |
UACC-Retrofit-PSU-12V – Frequently Asked Questions (FAQ)
Does the Retrofit PSU 12V work without a backup battery?
Yes. The Retrofit PSU 12V can operate without a backup battery, but only as a DC power supply—backup and battery charging features will be disabled.
How does the SLA battery interface work?
When AC power is available, the Retrofit PSU 12V powers the device and charges the SLA battery. If AC power is lost, the SLA battery automatically supplies the DC output, maintaining system operation.
What type of SLA battery is supported?
The Retrofit PSU 12V supports 12 V sealed lead-acid (SLA) batteries.
Does the Retrofit PSU 12V protect the battery from overcharging?
Yes. The charging circuit in the Retrofit PSU 12V includes overcharge protection, enhancing battery safety and prolonging service life.
| Manufacturer SKU | UACC-Retrofit-PSU-12V |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 10 |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
-
