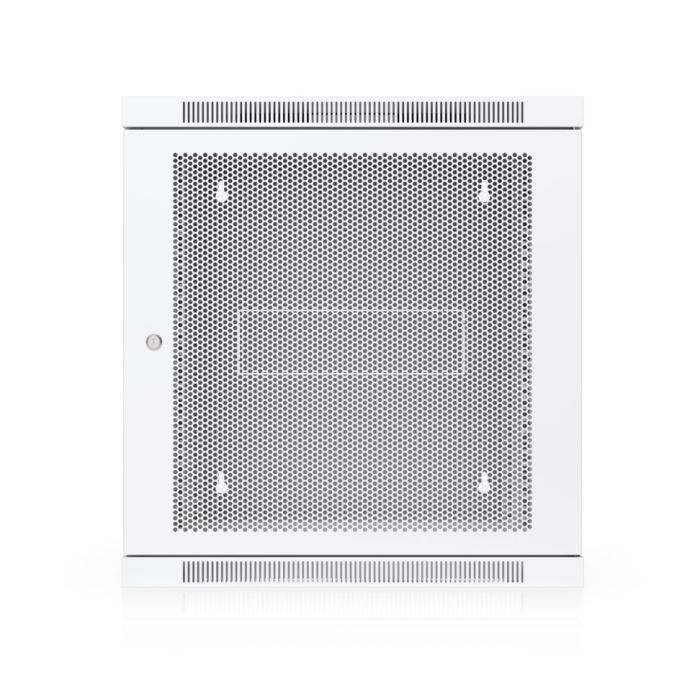

Ubiquiti 12U Rack Cabinet - 12U 19" perforated rack cabinet (UACC-Rack-12U-Wall-SW-P)
| Manufacturer SKU | UACC-Rack-12U-Wall-SW-P |
|---|---|
| Manufacturer | Ubiquiti |
The Ubiquiti 12U Rack Cabinet Swing is a two-section 19-inch wall-mounted cabinet with a load capacity of up to 80 kg. It has a perforated front door and a swing-out rear cover. The cabinet is equipped with adjustable rails (434–559 mm), security locks, numerous cable entries, and two built-in 120 mm AC fans.
Accessories and add-ons:
Ubiquiti 12U Rack Cabinet Swing - Assembled, two-section, wall-mounted 12U rack cabinet with perforated doors
Ubiquiti 12U Rack Cabinet Swing (UACC-Rack-12U-Wall-SW-P) is a wall-mounted, two-section rack cabinet designed for mounting and organizing network infrastructure. The design is based on a 4-post frame (square holes) made of 2mm SPCC steel, while the main structure and side panels are 1.2mm thick. The entire unit is finished with a white powder coat. The maximum load capacity is 80kg, allowing for the safe installation of heavier switches, UPSs, or IP surveillance recorders. The two-section design with a swing-out rear section provides users with direct access to cabling and rear device ports without the need to disassemble them. The cabinet is shipped fully assembled.
Two integrated 120 mm AC fans provide airflow, generating noise levels of up to 50 dB(A). A perforated, lockable front door further enhances passive cooling of hot equipment. Two solid, removable panels are located on the sides. Access to the equipment is secured by independent locks on the front door, swing-out module, and side panels. Cable entry is facilitated by a system of cable entries located in the rear wall and in the top and bottom panels (complete with knock-out blanking plates). The internal mounting rails have adjustable mounting depths from the default 434 mm to a maximum of 559 mm (in 25 mm increments).
Key Features
-
Height and Type: 12U, 4-post, two-section wall-mounted cabinet (swing-out rear section, perforated door).
-
Load Capacity and dimensions:Maximum load up to 80 kg; cabinet dimensions 600 x 700 x 639 mm; Net weight 25.8 kg.
-
Working depth: Mounting rails adjustable from 434 mm to 559 mm (25 mm increments).
-
Cooling: Two pre-installed 120 mm AC fans (noise level ≤ 50 dB(A)) and ventilation through the front panel.
-
Physical Security: Front door lock, rear hinged section lock, 4 side panel locks (2 keys included).
Technical Specifications
Rack Design and Features |
|
| Rack Type and Height | Height: 12U Rack Type: 4-Post Closed Enclosure |
| Hole Openings and Depth Mounting Hole Type: Square Default Mounting Depth: 434 mm (17.1") Maximum Mounting Depth: 559 mm (22") Adjustment Stroke: 25 mm (1") |
|
| Doors and Side Panels | Front Door: Perforated, default opening to the left (reversible) Rear Door (Hinged Section): Solid, Opening (Swing-out) Side Panels: (2) Solid, Removable, and Lockable |
| Security and Locks | (1) Front Door Lock (1) Rear Hinged Section Lock out) (4) Side Panel Locks (2) Keys Included |
| Active Cooling | (2) Pre-installed AC Fan Modules (120 x 120 x 38 mm) Noise Level: ≤ 50 dB(A) |
| Cable Grommets and Grounding | (1) Back Wall: 350 x 100 mm (13.8 x 3.9") (2) Top: 235 x 62 mm (9.3 x 2.4") + (4) knockout holes: 35 mm (1.4") (1) Bottom: 235 x 62 mm (9.3 x 2.4") + (4) knockout holes: 35 mm (1.4") Grounding Connectors: Yes |
| NDAA Compliant | Yes |
Other |
|
| Dimensions | Rack: 600 x 700 x 639 mm (23.6 x 27.6 x 25.2") Package: 725 x 840 x 735 mm (28.5 x 33.1 x 28.9") |
| Weight | Rack: 25.8 kg (56.9 lb) With packaging: 31.8 kg (70.1 lb) |
| Materials (Steel thickness) | SPCC steel Doors / side panels: 1.2 mm (0.05") Main body: 1.2 mm (0.05") Mounting posts (Posts): 2 mm (0.08") |
| Color and finishFinish | White Powder Coated |
| Mounting and Load Capacity | Wall Mounting Option Maximum Load Capacity: 80 kg (176 lb) |
| Standards and Certifications | CE EIA/ECA-310-E RoHS |
| Manufacturer SKU | UACC-Rack-12U-Wall-SW-P |
|---|---|
| Manufacturer | Ubiquiti |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
