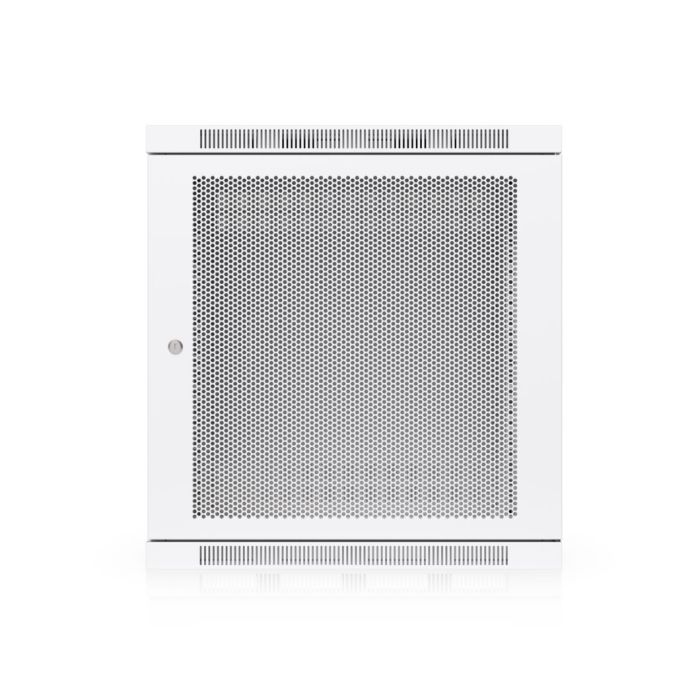

Ubiquiti 12U Rack Cabinet Standard - 19" 12U perforated rack cabinet (UACC-Rack-12U-Wall-600-P)
| Manufacturer SKU | UACC-Rack-12U-Wall-600-P |
|---|---|
| Manufacturer | Ubiquiti |
The Ubiquiti 12U Rack Cabinet Standard is a pre-assembled 19-inch server cabinet with a maximum load capacity of 80 kg. Its SPCC steel construction features perforated front doors that optimize airflow. The cabinet is equipped with a factory-installed fan module.
Accessories and add-ons:
Ubiquiti 12U Rack Cabinet Standard - 19" 12U Server Cabinet with Perforated Doors
Ubiquiti 12U Rack Cabinet Standard (UACC-Rack-12U-Wall-600-P) is a wall-mounted rack cabinet designed for mounting, protecting, and organizing network devices. The structure is based on a frame with four mounting posts (square holes) made of 2 mm thick SPCC steel, while the skin and panels are 1.2 mm thick. The entire unit is finished with a white powder coating. The maximum load capacity is 80 kg, which allows for the stable installation of heavier switches, UPSs, patch panels, or recorders. The cabinet is delivered fully assembled. assembled.
Air circulation inside the enclosure is ensured by an integrated fan module, which forces constant air circulation and heat dissipation, while generating noise levels below 50 dB(A). The cabinet features a perforated front door (a version with tempered glass is also available) and is lockable, further improving airflow. On both sides are two removable, solid side panels equipped with locks for additional security. The door design allows for reversible opening (default: left-handed), making it easier to adapt the cabinet to the specific needs of the room.
The cabinet has three cable entries: on the rear wall and in the top and bottom panels, allowing for convenient cable entry from any direction. The internal mounting rails are depth-adjustable from the default 448 mm to a maximum of 508 mm (in 20 mm increments). The design is also equipped with factory-installed grounding terminals.
Key Features
-
Height and Type: 19" 12U, 4-post wall-mounted cabinet (perforated doors).
-
Load capacity and dimensions: Maximum load up to 80 kg; cabinet dimensions 598 x 600 x 639 mm; Net weight 26.4 kg.
-
Working depth: Mounting depth adjustment from 448 mm to 508 mm (20 mm increments).
-
Cooling: Factory-built fan module (noise level ≤ 50 dB(A)) and ventilation through the front panel.
-
Cable Entries: Rear wall opening (350 x 100 mm), top opening (336.5 x 52.5 mm), and bottom opening (336.5 x 52.5 mm).
Technical Specifications
Rack Design and Features |
|
| Rack Type and Height | Height: 12U Rack Type: 4-Post, Closed Housing |
| Mounting Holes and Depth | Mounting Hole Type: Square Default Mounting Depth: 448 mm (17.6") Maximum Mounting Depth: 508 mm (20") Adjustment Increment: 20 mm (0.8") |
| Front Doors and Side Panels | Front Doors: Perforated, default left opening (reversible) Side Panels: (2) Solid, removable, and lockable |
| Security and Locks | (1) Front Door Lock (4) Panel Locks Side Panels (2) Keys Included |
| Cooling and Noise | Built-in Fan Module Noise Level: ≤ 50 dB(A) |
| Cable Pass-Throughs and Grounding | (1) Back Panel: 350 x 100 mm (13.8 x 3.9") (1) Top: 336.5 x 52.5 mm (13.2 x 2.1") (1) Bottom: 336.5 x 52.5 mm (13.2 x 2.1") Grounding Terminals: Yes |
| Compliant with NDAA | Yes |
Other |
|
| Dimensions | Rack: 598 x 600 x 639 mm (23.5 x 23.6 x 25.2") Package: 740 x 730 x 735 mm (29.1 x 28.7 x 28.9") |
| Weight | Rack: 26.4 kg (58.2 lb) With packaging: 31.8 kg (70.1 lb) |
| Materials (Steel Thickness) | SPCC Steel Doors / Side Panels: 1.2 mm (0.05") Main Body: 1.2 mm (0.05") Mounting Posts: 2 mm (0.08") |
| Color and Finish | White Powder Coated |
| Mounting and Load Capacity | Wall Mounting Option Maximum Load Capacity: 80 kg (176 lb) |
| Standards and Certifications | CE EIA/ECA-310-E RoHS |
| Manufacturer SKU | UACC-Rack-12U-Wall-600-P |
|---|---|
| Manufacturer | Ubiquiti |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
