Ubiquiti 12U Rack Cabinet Slim- 19" 12U perforated rack cabinet (UACC-Rack-12U-Wall-450-P)

Ubiquiti 12U Rack Cabinet - Assembled 19" 12U server cabinet with perforated doors

Ubiquiti 12U Rack Cabinet Slim (UACC-Rack-12U-Wall-450-P) is a wall-mounted rack cabinet designed for mounting, protecting, and organizing devices that make up a local network infrastructure. The structure is based on a frame with four mounting posts (square holes) made of 2 mm thick SPCC steel, while the skin and panels are 0.8 mm thick. The entire unit is finished with a white powder coating. The maximum load capacity is 50 kg, which allows for the stable installation of switches, patch panels, network gateways, or IP surveillance recorders. The cabinet is delivered fully assembled. assembled.

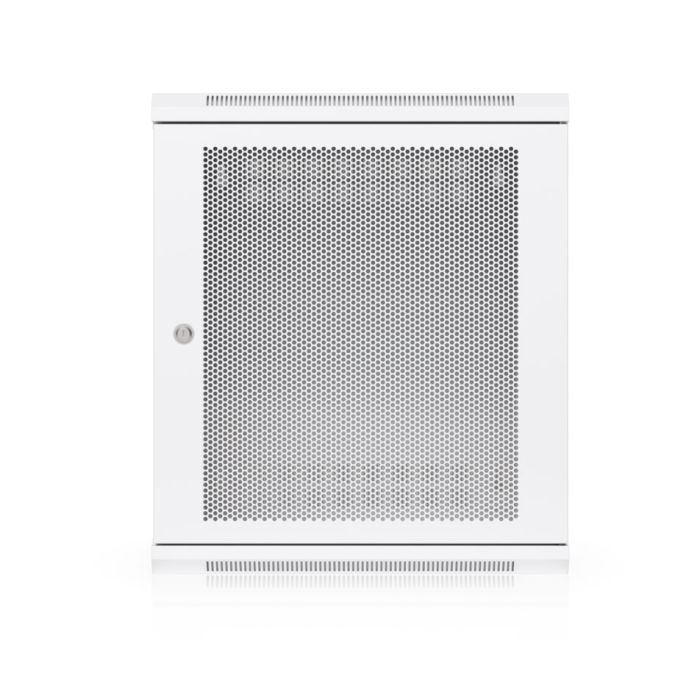

Air circulation inside the enclosure is ensured by a fan module integrated in the top, which forces constant air circulation and heat dissipation, while generating noise levels below 50 dB(A). The cabinet features a perforated front door (a version with tempered glass is also available) and is lockable, further improving passive cooling of the equipment. On both sides are two removable, solid side panels equipped with locks for additional security. The door design allows for reversible opening (default: left-handed), making it easier to adapt the cabinet to the specific needs of the room.

The cabinet has three cable entries: on the rear wall and in the Top and bottom panels allow for convenient cable entry from any direction. The internal mounting rails are depth-adjustable from the default 283 mm to a maximum of 305 mm (in 22 mm increments). This range allows for the installation of devices up to 325 mm deep. The design is also equipped with factory-installed grounding terminals.

Key Features

• Height and Type: 12U, 4-post wall-mounted cabinet (perforated door).

• Load capacity and dimensions: Maximum load up to 50 kg; cabinet dimensions 550 x 450 x 635 mm; net weight 17.8 kg.

• Working depth: Mounting depth adjustment from 283 mm to 305 mm (22 mm increments).

• Compatibility: Supports devices with a depth of up to 325 mm (at a maximum depth of 305 mm, there is no space for the DC emergency power connectors at the rear).

• Cooling: Factory-installed fan module (noise level ≤ 50 dB(A)) and ventilation through the front panel.

• Cable entry: Hole in the back wall (350 x 100 mm), top hole (336.5 x 52.5 mm), and bottom hole (336.5 x 52.5 mm) mm).

Technical Specifications
