Ubiquiti OS2 Duplex LC UPC Fiber Patch Cable 10m - OS2 LC UPC fiber patch cable, 100 Gb/s (UACC-OFC-S2-LULU-10M)

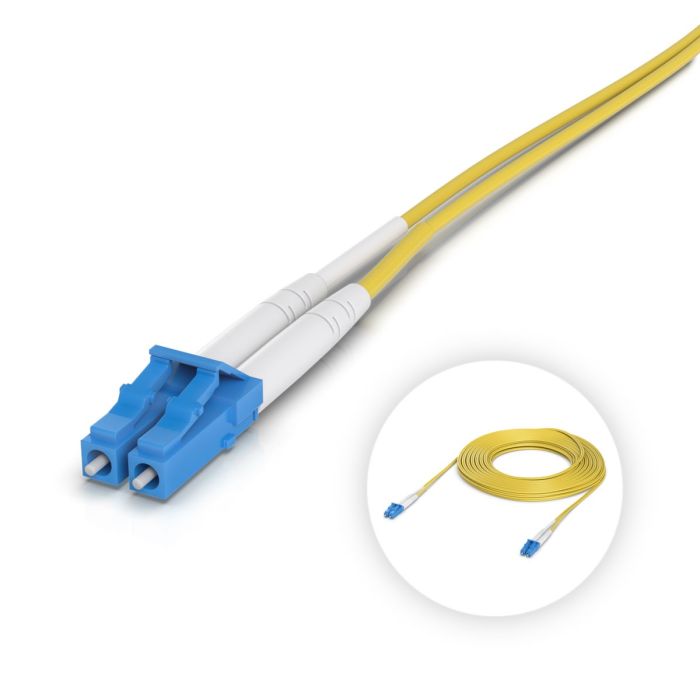

Ubiquiti OS2 Duplex LC UPC Fiber Patch Cable 10m (UACC-OFC-S2-LULU-10M) is a single-mode OS2 patch cable with Duplex LC UPC connectors for 100G connections. It operates at wavelengths of 1310 and 1550 nm, and its attenuation is ≤ 0,3 dB.
Accessories and add-ons:
Ubiquiti OS2 Duplex LC UPC Fiber Patch Cable – OS2 LC UPC Fiber Optic Patch Cable
Ubiquiti OS2 Duplex LC UPC Fiber Patch Cable (UACC-OFC-S2-LULU) is an OS2 single-mode fiber optic patch cable designed for indoor connections. The cable is terminated with Duplex LC UPC connectors at both ends and can be used for connections with data rates of up to 100 Gb/s.
The cable operates at wavelengths of 1310 and 1550 nm. Low insertion loss of ≤ 0,3 dB helps minimize signal loss between optical modules, while return loss is at least 50 dB. Repeatability is ≤0,1 dB, and the change in parameters after 1000 mating cycles does not exceed 0,2 dB. The yellow LSZH (Low Smoke Zero Halogen) jacket has a diameter of 2 mm and reduces the emission of smoke and halogen gases in the event of a fire.
The cable is available in lengths of / / / / / / .
Technical Specifications
| Available lengths | 0,5 m 1 m 3 m 5 m 10 m 15 m 30 m |
| Packaging options | 1 piece 50 pieces (0,5 / 1 / 3 m versions) |
| Connectors | (2) Duplex LC UPC |
| Operating environment | Indoor |
| Fiber type | OS2, single-mode |
| Jacket diameter | 2 mm |
| Jacket material | LSZH (Low Smoke Zero Halogen) |
| Jacket color | Yellow |
| Wavelength | 1310 / 1550 nm |
| Insertion loss | ≤ 0,3 dB |
| Return loss | ≥ 50 dB |
| Repeatability | ≤ 0,1 dB |
| Durability | ≤ 0,2 dB after 1000 mating cycles |
| Operating temperature | −40 to 75°C |
| Manufacturer SKU | UACC-OFC-S2-LULU-10M |
|---|---|
| Manufacturer | Ubiquiti |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
