Ubiquiti OM4 MPO-12 UPC Fiber Patch Cable 10m - OM4 MPO-12 100G fiber patch cable (UACC-OFC-MA-MPMP-10M)

Ubiquiti OM4 MPO-12 UPC Fiber Patch Cable – OM4 MPO-12 Fiber Optic Patch Cable for 100G

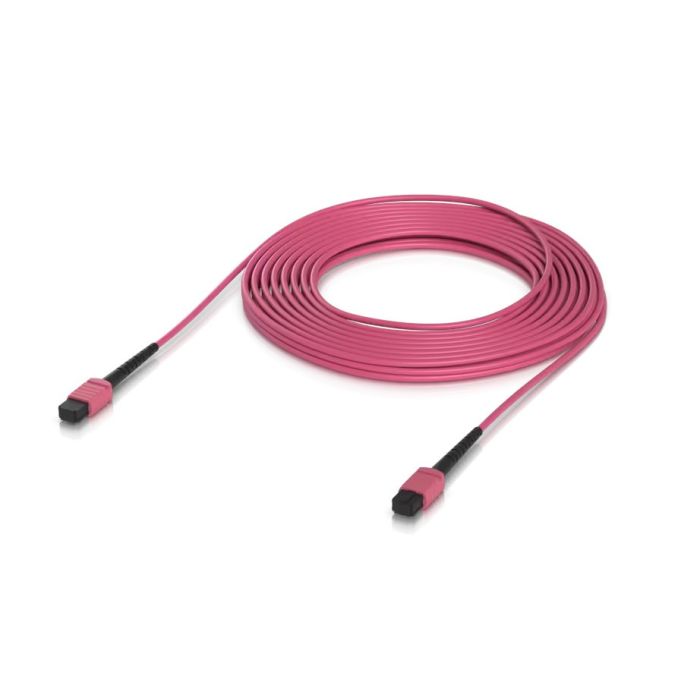

Ubiquiti OM4 MPO-12 UPC Fiber Patch Cable is a fiber optic patch cable made of OM4 multimode fiber and terminated with MPO-12 Type B UPC connectors at both ends. The cable supports 100G fiber optic connections, making it suitable for connecting aggregation switches and other network infrastructure components.

The cable operates at a wavelength of 850 nm. The maximum insertion loss is 0,6 dB, while the return loss is at least 20 dB. Connection repeatability is specified at no more than 0,1 dB, and the attenuation change after 1000 mating cycles does not exceed 0,2 dB.

The outer cable jacket has a diameter of 3 mm and is made of LSZH (Low Smoke Zero Halogen) material. The cable features a pink jacket and is designed for indoor installations. It can operate at ambient temperatures ranging from -40 to 75°C.

The patch cable is available in lengths of 0.5 m / 1 m / 3 m / 5 m / 10 m / 15 m / 30 m / 60 m and 100 m. The 0.5 m, 1 m and 3 m versions are also available in packs of 10.

Key Features

• Fiber type: OM4 multimode.
• Connectors: 2 × MPO-12 Type B UPC.
• Wavelength: 850 nm.
• Insertion loss: ≤ 0,6 dB.
• Return loss: ≥ 20 dB.

Technical Specifications
