Ubiquiti OM4 Duplex LC UPC Fiber Patch Cable 1m, 50-pack - OM4 LC UPC fiber patch cable (UACC-OFC-M2-LULU-1M-50)

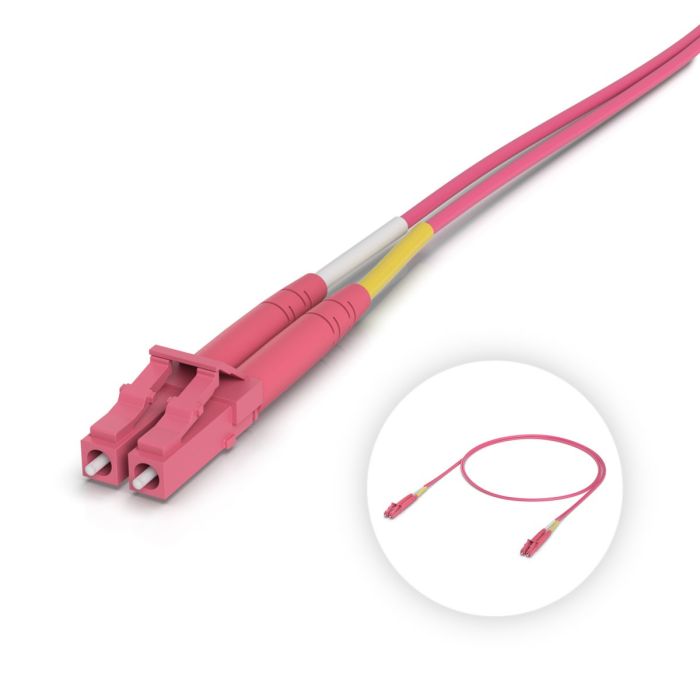

Ubiquiti OM4 Duplex LC UPC Fiber Patch Cable 1m 50-pack (UACC-OFC-M2-LULU-1M-50) is a multimode OM4 patch cable with Duplex LC UPC connectors. It operates at wavelengths of 850 and 1300 nm and has an LSZH jacket.
Accessories and add-ons:
Ubiquiti OM4 Duplex LC UPC Fiber Patch Cable – OM4 Duplex LC UPC Fiber Optic Patch Cable
Ubiquiti OM4 Duplex LC UPC Fiber Patch Cable (UACC-OFC-M2-LULU) is an OM4 multimode fiber optic patch cable designed for indoor connections. The cable is terminated with Duplex LC UPC connectors at both ends and supports wavelengths of 850 and 1300 nm.
The cable has a diameter of 2 mm and a pink LSZH (Low Smoke Zero Halogen) jacket, which reduces the emission of smoke and halogen gases in the event of a fire. The insertion loss is a maximum of 0,3 dB, the return loss is at least 35 dB, and connection repeatability does not exceed 0,1 dB. The connectors maintain an attenuation change of ≤0,2 dB after 1000 mating cycles.
The series is also available in lengths of / / / / / and .
Technical Specifications
Fiber Optic Parameters |
|
| Fiber type | OM4, multimode |
| Connectors | 2 x Duplex LC UPC |
| Available lengths | 0,5 m 1 m 3 m 5 m 10 m 15 m 30 m |
| Wavelength | 850 / 1300 nm |
| Insertion loss | ≤0,3 dB |
| Return loss | ≥35 dB |
| Repeatability | ≤0,1 dB |
| Connection durability | ≤0,2 dB after 1000 mating cycles |
Other Specifications |
|
| Jacket diameter | 2 mm |
| Jacket material | LSZH (Low Smoke Zero Halogen) |
| Jacket color | Pink |
| Operating environment | Indoor |
| Operating temperature | -40 to 75°C |
Packaging |
|
| Packaging options | 1 pc. 50 pcs. (0,5 m, 1 m and 3 m versions) |
| Manufacturer SKU | UACC-OFC-M2-LULU-1M-50 |
|---|---|
| Manufacturer | Ubiquiti |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
