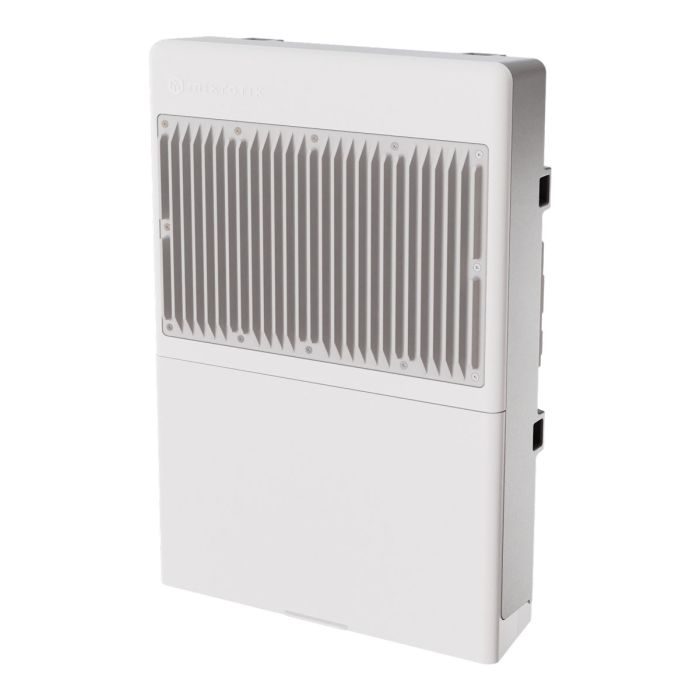

MikroTik - CSS610-8P-2S+OUT (netPower Lite 8P)
| Manufacturer SKU | CSS610-8P-2S+OUT |
|---|---|
| Manufacturer | Mikrotik |
| PCS in collective packaging | 5 |
MikroTik CSS610-8P-2S+OUT netPower Lite 8P outdoor managed PoE switch with 8x Gigabit PoE 802.3af/at ports, 2x 10G SFP+ uplinks, integrated UPS with smart battery charging, IP54 housing and fanless operation.
Accessories and add-ons:
MikroTik netPower Lite 8P – Outdoor PoE Switch with UPS Functionality
The MikroTik netPower Lite 8P (CSS610-8P-2S+OUT) is a rugged, managed outdoor switch that combines the functions of a PoE switch with an uninterruptible power supply (UPS). The device is equipped with eight Gigabit Ethernet ports supporting 802.3af/at PoE output and two SFP+ (10 Gb/s) slots for fast uplinks. The device is equipped with a built-in intelligent charger and a power management system that allows for the connection of an external 24V battery (e.g., two 12V gel batteries in series). Thanks to the built-in converter, the switch can provide 48V PoE power even when powered by a 24V battery.
The device runs the lightweight SwOS Lite operating system, which allows for management via a web browser. The design is engineered for reliability in harsh environments – the IP54-rated housing protects the electronics from moisture and dust, and passive cooling eliminates the risk of fan failure. The switch operates stably in temperatures ranging from -40°C to +70°C. The UPS function operates intelligently: in the event of a mains power outage, the device immediately switches to battery power without interrupting data transmission. When power returns, the battery is automatically recharged (lead-acid, AGM, gel, and LiFePO4 cells are supported). Importantly, the system prioritizes PoE output – in the event of a power shortage, battery charging is reduced to maintain the operation of critical network devices.
Key Features
- Ports: 8× Gigabit Ethernet (PoE-out 802.3af/at), 2× SFP+ (10 Gb/s)
- UPS Function: Built-in charger and connector for an external 24 V battery
- Converter: 48 V PoE power supply even when operating on a 24 V battery
- Power Supply: 2-pin connector (24–57 V DC), battery input
- Max. Power Consumption: Total PoE-out power up to 120 W
- Charging: Current 0.2–1.6 A, supports AGM, Gel, LiFePO4 (with BMS)
- Resistance: IP54 housing, operating temperature -40°C to +70°C
- Accessories: Temperature sensor (for charge compensation), alarm input (tamper)
Technical Specifications
| Product Code | CSS610-8P-2S+OUT |
| MTBF | Approximately 200,000 hours at 25°C |
System and Performance |
|
|---|---|
| Operating System | SwOS Lite |
| Switch Model | 88E6193 |
| Memory Built-in | 64 KB (Type: FLASH) |
Network Interfaces |
|
| Gigabit Ethernet Ports (10/100/1000) | 8 (including 8 ports with PoE output / PoE-out) |
| Fiber Optic Ports (SFP+) | 2 |
Power and PoE Output (PoE-out) |
|
| Number of DC Inputs | 3 (Terminal 2-pin) |
| Input Voltage (2-pin Terminal) | 24-57 V (Battery: 22-30 V) |
| Maximum Power Consumption | 208 W (With Connected Devices) |
| Maximum Power Consumption Without Peripherals | 9 W |
| PoE Output Ports (PoE-out) | Ether1 - Ether8 |
| Standard PoE-out | 802.3af/at |
| PoE Output Current Limit (Low Voltage) | 1.0 A |
| PoE Output Current Limit (High Voltage) | 0.64 A |
| Total PoE Output Power | 120 W |
Supported Features and Modules |
|
| System Monitoring | CPU Temperature Monitoring, Current Monitoring, Voltage Monitoring |
Other |
|
| Included | Cable tie (2 pcs.), K-66 mounting kit, Temperature sensor |
| Certifications | CE, EAC, ROHS |
| Cooling type | Passive |
| Ingress protection class | IP54 |
| Tested operating temperature | -40°C to 70°C |
