Mikrotik CCR2116-12G-4S+
| Manufacturer SKU | CCR2116-12G-4S+ |
|---|---|
| EAN | 4752224007919 |
| Cable lenght | 1m |
| Manufacturer | Mikrotik |
| PCS in collective packaging | 4 |
MikroTik CCR2116-12G-4S+ is a high-performance 10Gbps router designed for ISPs. Equipped with 13x 1Gbps Ethernet and 4x SFP+ cages. The router is powered by a 16-core Amazon Annapurna Labs Alpine processor and supports Layer 3 Hardware Offloading.
Add-ons:

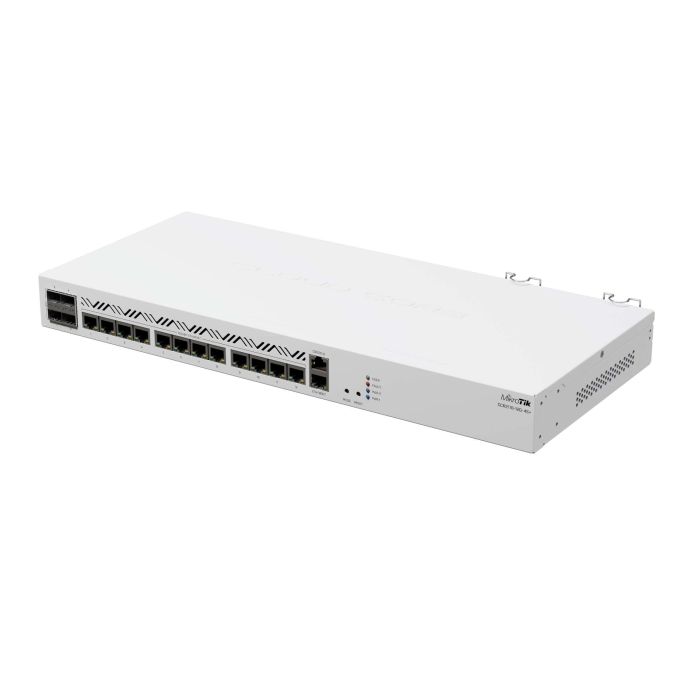

MikroTik Cloud Core Router CCR2116-12G-4S+
MikroTik CCR2116-12G-4S+ is an extremely powerful router designed for demanding ISPs. The device is designed based on the 16-core Amazon Annapurna Labs Alpine processor clocked at 2 GHz.
The router has 4 SFP+ slots connected by a direct bus to the Marvell Aldrin switch chip. Of the 12 Gigabit Ethernet ports, each group of 4 of them is also connected directly to the controller chip. This avoids the bottleneck that could be the processor. The 13th port is connected directly to the processor (for management purposes).
Thanks to the solutions used, despite having "only" 16 cores, the CCR2116-12G-4S+ is twice as powerful as the CCR1036!
MikroTik CCR2116-12G-4S+ is ideal for dynamic routing, large BGP configurations or complex sets of firewall and QoS rules. The router has redundant power.
Key features:
- 16-core Amazon Annapurna Labs Alpine 2GHz processor
- 12 + 1 10/100/1000Mbps ports
- 4 SFP+ 10Gbps slots
- redundant power supplies
- M.2 slot
Technical specification:
|
Hardware |
|
|---|---|
| CPU | AL73400 2 GHz |
| CPU architecture | ARM 64bit |
| CPU core count | 16 |
| Size of RAM | 16 GB |
| RAM type | DDR4 |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 13 |
| Number of 10G SFP+ ports | 4 |
| Number of M.2 slots | 1 |
| Operating system | RouterOS (License level 6) |
| Switch chip model | 98DX3255 |
| Dimensions | 443 x 199 x 44 mm |
| Operating temperature | -20°C to +60°C |
| Powering | |
| Number of AC inputs | 2 |
| AC input range | 100-240 V |
| Power adapter nominal voltage | 12 V |
| Power adapter nominal current | 10.8 A |
| Max power consumption (without attachments) | 60 W |
| Max power consumption | 72 W |
| Certification & Approvals | |
| Certification | CE, FCC, IC |
| Manufacturer SKU | CCR2116-12G-4S+ |
|---|---|
| EAN | 4752224007919 |
| Cable lenght | 1m |
| Manufacturer | Mikrotik |
| PCS in collective packaging | 4 |
