Tp-Link :: MC211CS-20 Gigabit WDM Media Converter 20km

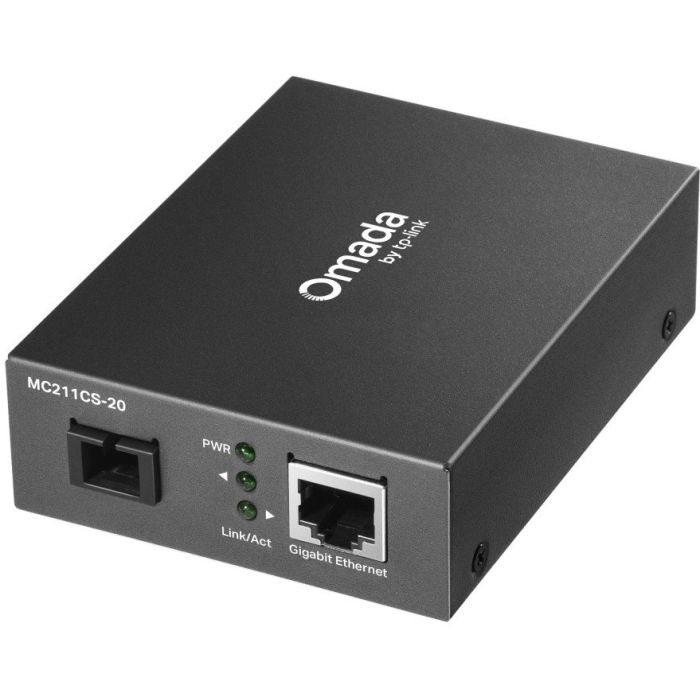

TP-Link MC211CS-20 Gigabit WDM Media Converter
The TP-Link MC211CS-20 is a Gigabit WDM Media Converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Utilizing WDM (Wavelength-Division Multiplexing) technology, it enables bidirectional data transmission over a single single-mode fiber, optimizing fiber usage. The converter is equipped with an SC-type connector and supports signal transmission up to 20 km. It complies with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX standards, featuring an RJ45 port with Auto MDI/MDIX for seamless connectivity. The MC211CS-20 operates at 1550nm for transmission and 1310nm for reception, with front panel LEDs to indicate operational status. It can function as a standalone device or be mounted in TP-Link’s TL-MC1400 chassis.
Key Features
- Utilizes WDM technology for transmitting and receiving data over a single single-mode fiber.
- SC fiber optic connector.
- Complies with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX standards.
- Extends fiber transmission distance up to 20 km.
- RJ45 port with Auto MDI/MDIX crossover function.
- Transmits at 1550nm and receives at 1310nm.
- Auto-negotiation of Half-Duplex/Full-Duplex transfer modes.
Technical Specifications
| Category | Details |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Basic Function |
Auto-negotiation of Half-Duplex/Full-Duplex transfer mode Extends fiber distance up to 20 km using WDM technology |
| Ports |
1× 1000M SC/UPC port 1× 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wavelength | 1550nm TX, 1310nm RX |
| Network Media 1000BASE-LX | Single-mode Fiber |
| Network Media 1000BASE-T |
UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| LED Indicators | PWR, Link/Act |
| Dimensions (W×D×H) | 3.7×2.9×1.1 in. (94.5×73.0×27.0 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 2.63W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents |
MC211CS-20 Power Adapter Installation Guide |
| Environment |
Operating Temperature: 0℃~50℃ (32℉~122℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
