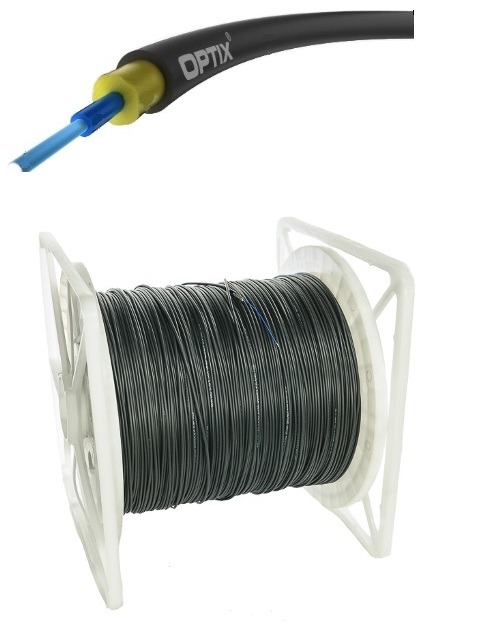

Fiber optic cable AirFlow S-QOTKSdD 4x9/125 ITU-T G657A2
| Hersteller | Optic |
|---|---|
| Stück in Sammelverpackung | 1000 |
OPTIX Cable AIRFLOW S-QOTKSdD 0.8kN (up to 80m SPAN - NESC Heavy) 9/125 ITU-T G.657A2
FTTX CABLE
- Cable for outdoor / indoor installation
- Span (NESC Heavy) up to 80 meters (0.8kN)
- Fully dielectric construction
- Resistance to high and low temperatures
- Enhaced by high quality aramid yarns
- Small diameter - 3mm
- Reduced bend radius - G.657A2 fibres
- Solid FR Polyurethane jacket

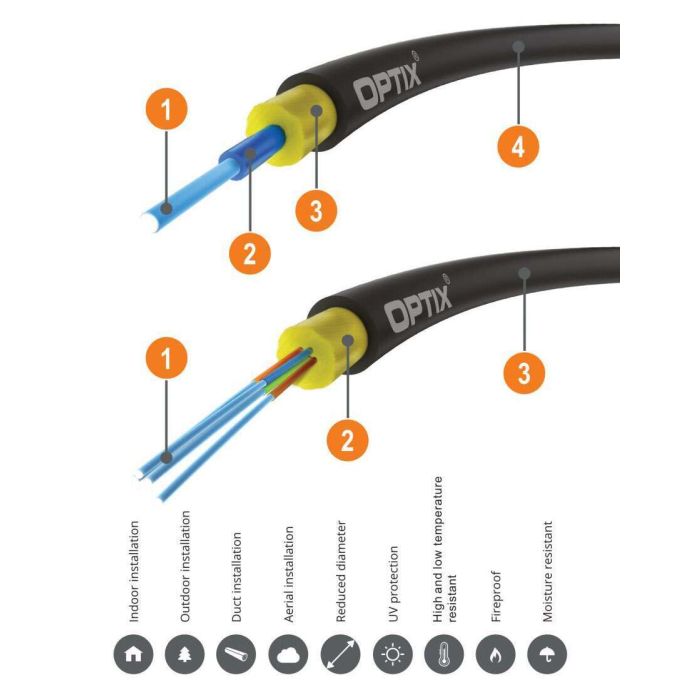

CABLE CONSTRUCTION 1F
- Optical fibres in 0.25mm coating
- Coloured buffer 0.9mm (semi-tight buffer)
- Aramid yarns
- FR Polyurethane outer jacket, UV Stabilized
CABLE CONSTRUCTION 2-12F
- Optical fibres in 0.25mm coloured coating
- Aramid yarns
- FR Polyurethane outer jacket, UV Stabilized
The OPTIX AirFlow S-QOTKSdD cable is a universal (indoor-outdoor). round, self-supporting cable for usage in Fttx systems, strengthened by aramid yarns (supporting element in aerial installations), light construction with a diameter of ˜3mm, great flexibility and durability againstdragging, PU coat, UV resistant shell, fully dielectric, Installation tension strength:800N, temperature range between -20°C and +70°C, an equivalent to the S-QOTKSdD.
The construction has been designed for particularly good fibre protection and additionally for enabling easy leading and mounting of the cable. The G.657A2 fibres in use also offer a reduction of the bending radius (even up to 7.5mm). The cables are meant for aerial installation on a span of 80-100m and also in primary and secondary tele-technical canalisation by pneumatic (cable blowing) and mechanical (cable pulling) methods.
 |
| Product information | ||||||||||
| Cable version |
The total amount of fibres [pcs] |
Weight [kg/km] (±10%) |
∅ Cable [mm] (±0.1) |
∅ Tube |
Supporting element/ Peripheral reinforcement |
Reinforcing element |
Coating material & thickness [mm] (±0.1) |
Temp. range instalation |
Temp. range operating transport |
Minimum bending radius temporary permanent |
| OT1F | 1 | 8.7 | 3.0 | None | Aramid yarns | FR PU(0.75) | -10° to +60°C | -20° to +70°C | 15D/10D | |
| OT2F | 2 | 7.5 | 3.0 | None | Aramid yarns | FR PU(0.75) | -10° to +60°C | -20° to +70°C | 15D/10D | |
| OT4F | 4 | 7.5 | 3.0 | None | Aramid yarns | FR PU(0.75) | -10° to +60°C | -20° to +70°C | 15D/10D | |
| OT6F | 6 | 8.0 | 3.2 | None | Aramid yarns | FR PU(0.75) | -10° to +60°C | -20° to +70°C | 15D/10D | |
| OT12F | 12 | 8.5 | 3.4 | None | Aramid yarns | FR PU(0.75) | -10° to +60°C | -20° to +70°C | 15D/10D | |
| Mechanical parameters | EN standard | IEC standard | 1F | 2-4F | 6-12F |
| Tensile Strength Installation(NESC Heavy) | EN187000 | IEC 60794-1-2-E1 | 800N | 800N | 800N |
| Tensile Strength Operation(NESC Heavy) | EN187000 | IEC 60794-1-2-E1 | 250N | 250N | 250N |
| Crushing resistance | EN187000, m.504 | IEC 60794-1-2-E3 | 500N (100x100mm) for 60 sec. | ||
| Repeated bending | EN187000, m.507 | IEC 60794-1-2-E6 | 30 cycles [(20xD), 1kg] | ||
