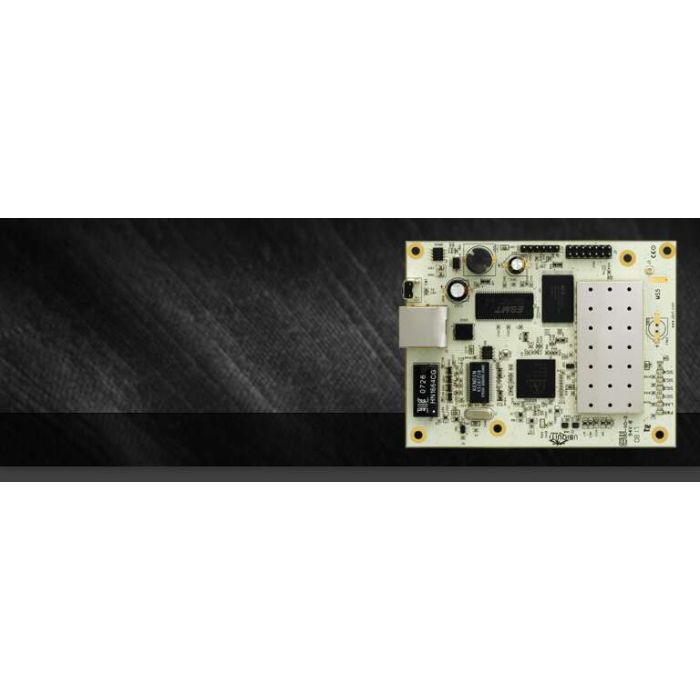

Ubiquiti WISPstation 5GHz embedded board

Name: Ubiquiti WISPstation 5GHz embedded board
Brand: Ubiquiti
SKU: UBIQUITI-WISPSTATION
Price: 32.78 EUR
Availability: InStock

€35.58 €28.93

Out of stock

SKU

UBIQUITI-WISPSTATION

Notify me when this product is in stock

More Information
Manufacturer SKU	WS5
Manufacturer	Ubiquiti
PCS in collective packaging	100

WispStation, a Long-Range 5GHz Station designed specifically for the WISP OEM Market. WispStation features rock solid performance, the intuitive AirOS interface, and 15kEV ESD Protection at RF and Ethernet Ports. TX-Power 22dBm, Sensitivity -94dBm, supports Client mode, AP, (transparent) Bridge, Router WISP Client.

Details

More Information

Ubiquiti WISPstation is a wireless solution based on Atheros chipset working under AirOS system. The device is compatible with MikroTik RouterOS and works as Client, Access Point, (transparent)Bridge, Router, WISP Client. It is recommended as a Client station or for wireless point-to-point bridges. WISPstation may be considered as an alternative choise for RouterBoard RB411.
Processor	Atheros AR5312 SOC, MIPS 4KC, 180MHz
Memory	16MB SDRAM, 4MB Parallel Flash
Radio	802.11a 22 dBm
Sensitivity	-94 dBm
Operating system	AirOS
Serial Interface	10Pin (5x2) Header available for RS232/DB9
PCI Interface	32-bit mini-PCI Type IIIA
Networking Interface	1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
Wireless Approvals	FCC Part 15.247, IC RS210, CE ETSI EN301 489-17 / 893
RoHS Compliance	Yes
TX Channel Width Support	5MHz / 10MHz / 20MHz / 40MHz
Modes	Station, StationWDS, AP Bridge
Services	SNMP,DHCP,NAT
Security	WEP/WPA
Outdoor Range (Antenna Dependent)	over 50km
Max Power Consumption	7.0W
DC Voltage Rating	5-24V (18V max recommended)
Power Method	Power over Ethernet, passive, (pary 4,5 +, 7,8 -)
Operating Temperature	-20C to 70C (System PCB optimized for low/hi-temp)
Dimensions	15,7 mm x 12,5 mm x 2,4 mm
Weight	53g

Datasheet

More Information
Manufacturer SKU	WS5
Manufacturer	Ubiquiti
PCS in collective packaging	100
