Ubiquiti G4 Doorbell Pro PoE Kit (UVC-G4 Doorbell Pro PoE Kit-White)
€433.64 €352.55
In stock
SKU
UBIQUITI-UVC-G4-DOORBELL-PRO-POE-KIT-WHITE
| Manufacturer SKU | UVC-G4 Doorbell Pro PoE Kit-White |
|---|---|
| EAN | 810084692660 |
| Manufacturer | Ubiquiti |

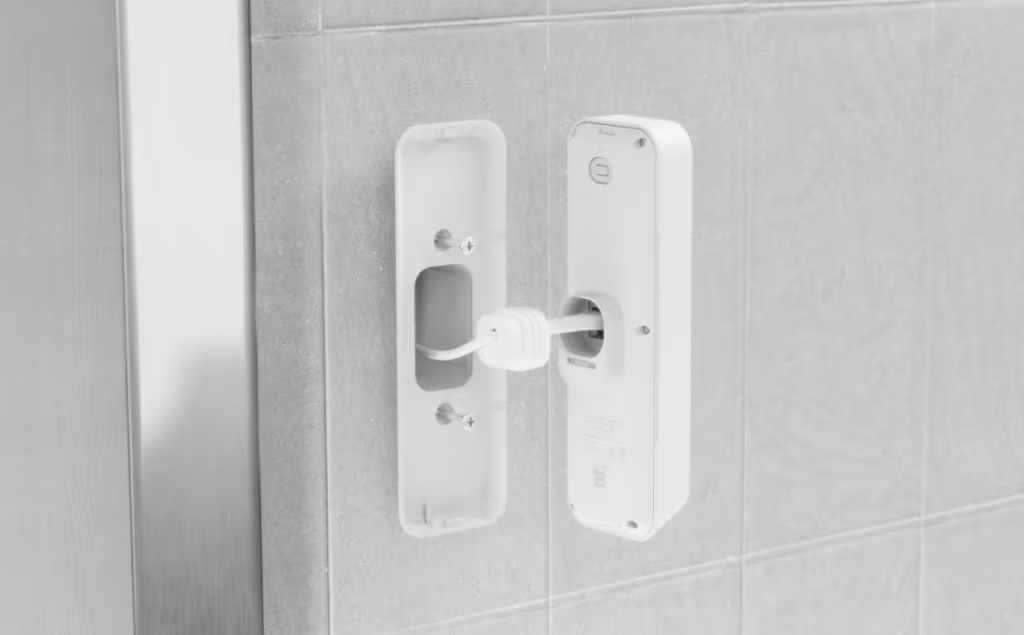

G4 Doorbell Pro PoE Kit, premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play installation.
G4 Doorbell Pro PoE Kit - White
Your premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play installation.
- Improved HDR and low-light performance
- Programmable welcome display and secondary package-detection camera
- AI event detections
- Connect and power using PoE
- Integrated 2-way audio
- Includes PoE Chime
- Weather-resistant (outdoor covered)
Technical Specifications
UVC-G4 Doorbell Pro PoE
| Dimensions | Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4") Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7") Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1") On-wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1") |
| Weight | Device: 264 g (9.3 oz) Wall mount: 56 g (2 oz) Wedge: 33 g (1.2 oz) On-wall mount: 53 g (1.9 oz) |
| Enclosure materials | Aluminum alloy, polycarbonate |
| Mount materials | Wall mount: aluminum alloy Wedge: polycarbonate On-wall mount: polycarbonate |
| Weatherproofing | IPX4 |
| Color | White (also available black) |
| Optics | |
| Sensor | Main camera: 5MP CMOS sensor Package camera: 8MP CMOS sensor |
| Lens | Fixed focal length |
| View angle | Main camera (LDC On): H: 138°, V: 114°, D: 155° Main camera (LDC Off): H: 160°, V: 117°, D: 160° Package camera: H: 97.5°, V: 79.4°, D: 118.2 |
| Night mode | Built-in IR LED illumination and IR cut filter |
| Video | |
| Video compression | H.264 |
| Resolution | Main camera: 2MP 1600 x 1200 (4:3) Package camera: 2MP 1600 x 1200 (4:3) |
| Max. frame rate | 30 FPS |
| System | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Networking interface | GbE RJ45 port |
| Power method | PoE |
| Supported voltage range | 37—57V DC |
| Max. power consumption | 7W |
| LED | Link/activity |
| Buttons | (1) Ring button (1) Factory reset |
| Operating temperature | -30 to 40º C (-22 to 104º F) |
| Operating humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Audio | |
| Microphone | Yes (Can be disabled ) |
| Speaker | Yes |
| Software | |
| UniFi OS application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |

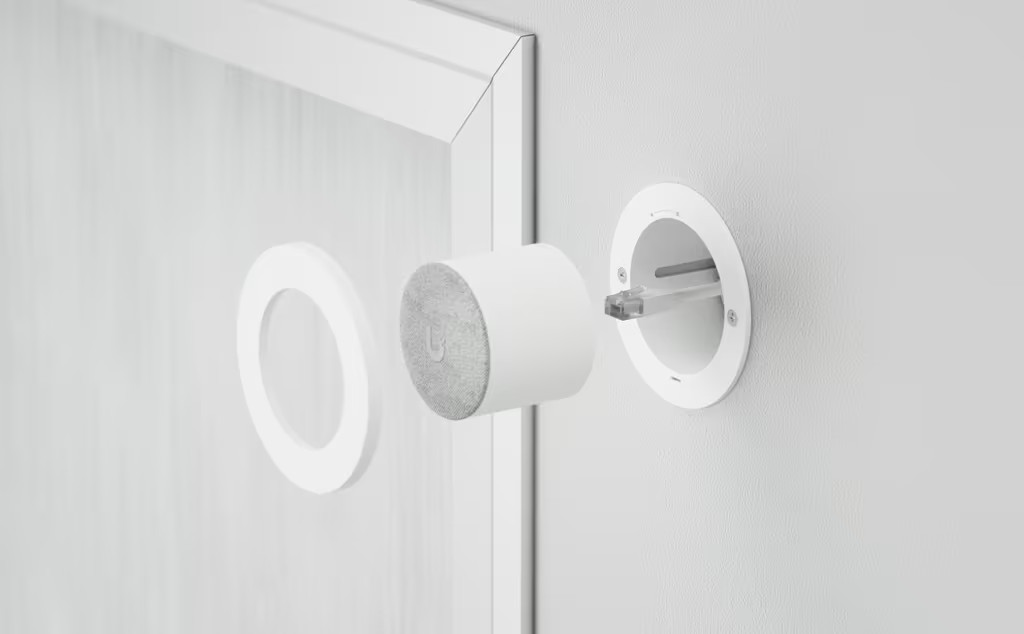

UP-Chime PoE
| Mechanical | |
| Dimensions | Device: Ø62 x 54 mm (Ø2.5 x 2.1") In-wall mount: Ø89 x 63.1 mm (Ø3.5 x 2.5") On-wall Mount: Ø62 x 20.2 mm (Ø2.5 x 0.8") |
| Weight | Device: 158 g (5.6 oz) In-wall mount: 91 g (3.2 oz) On-wall mount: 28 g (1 oz) |
| Enclosure materials | Aluminum alloy, polycarbonate |
| Mount materials | Polycarbonate, zinc alloy |
| System | |
| Processor | Dual-Core Xtensa®, 32 bit ,400 MIPS |
| Networking interface | 10/100 MbE port |
| Power method | PoE |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 3.5W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 8kV |
| LED | R/G/B/W |
| Button | Factory reset |
| Operating temperature | 0 to 40° C (32 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Audio | |
| Speaker | Yes |
| Buzzer | Yes |
| Software | |
| Web application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
| Manufacturer SKU | UVC-G4 Doorbell Pro PoE Kit-White |
|---|---|
| EAN | 810084692660 |
| Manufacturer | Ubiquiti |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
