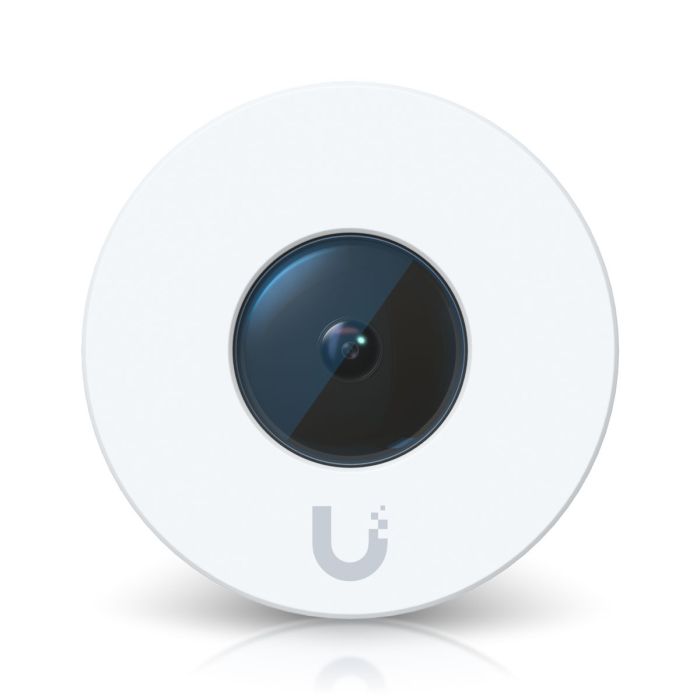

Ubiquiti AI Theta 360 Lens - Ultra-wide lens for Theta Hub (UVC-AI-Theta-Lens-360)
| Manufacturer SKU | UVC-AI-Theta-Lens-360 |
|---|---|
| Manufacturer | Ubiquiti |
The Ubiquiti AI Theta 360° Lens is a miniature 12MP lens for the AI Theta Hub system. It provides ultra-widescreen 360° (4MP) video for discreet indoor monitoring.
Accessories and add-ons:
Ubiquiti AI Theta 360° Lens – Ultra-wide lens for the Theta Hub system
Ubiquiti AI Theta 360° Lens (UVC-AI-Theta-Lens-360) is a dedicated lens module, designed for the system AI Theta Hub. This discreet and miniature design (the device weighs just 15 grams and measures less than 23 millimeters in diameter) houses a 12MP CMOS sensor. Thanks to its fixed-focus lens, it offers an ultra-wide viewing angle of 180° in all directions (horizontally, vertically, and diagonally). This allows for a full, 360-degree view of the entire monitored room without any blind spots.
The camera records high-resolution images (2560 x 2560 pixels in a 1:1 aspect ratio) at a smooth 20 frames per second. The system offers a suite of video optimization settings, including exposure adjustment, white balance, masking, text overlay, and advanced noise reduction (2DNR, 3DNR, NR by motion). The module is intended for indoor use only and can safely operate in temperatures ranging from -20°C to 40°C.
The device's housing is made of a combination of durable polycarbonate and aluminum alloy. Power and communication with the central unit are provided via a proprietary Theta interface at 5V DC. This solution is extremely energy-efficient – maximum power consumption is only 2.5 W. The factory set includes accessories for ceiling and wall mounting.
Key Features
-
Device Type: Lens module requiring connection to the Theta Hub AI unit.
-
Resolution: Video in 1:1 format (4MP, 2560 x 2560 pixels) at 20 fps
-
Viewing angle: Full 180° vertically, horizontally, and diagonally (generating a 360° image)
-
Power supply: Proprietary Theta connector (5V DC), low power consumption (up to 2.5 W)
-
Operating Environment: Indoor only
-
Design: Ultra-compact and lightweight (15g), made of aluminum and polycarbonate
-

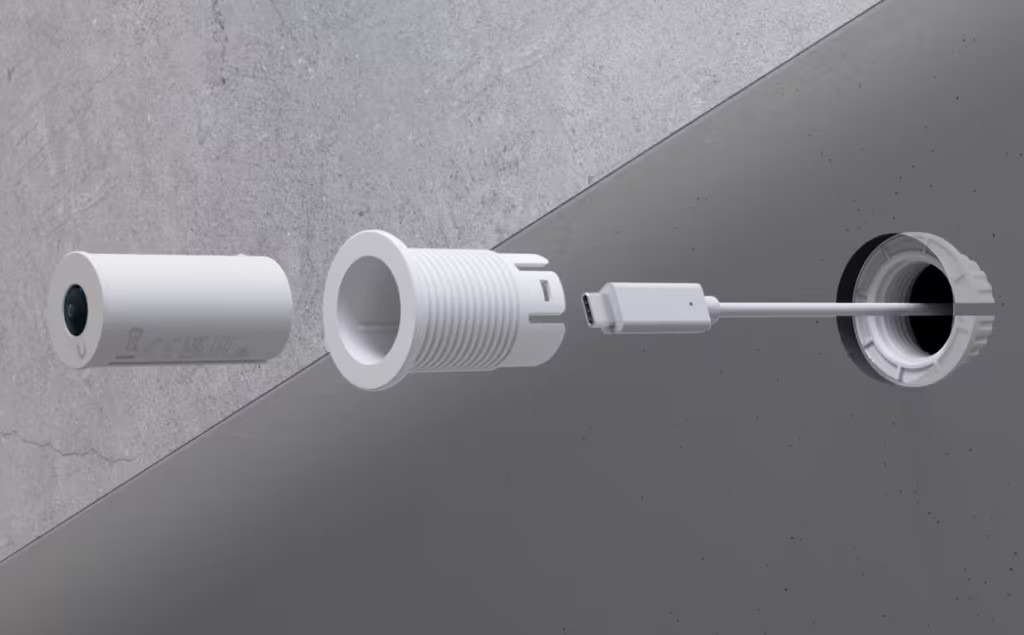

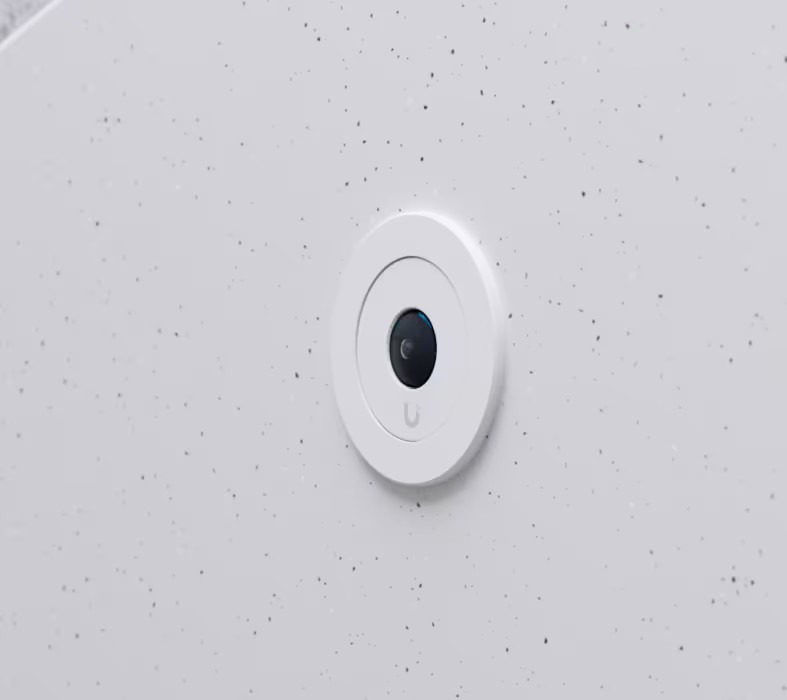

Mounting: Wall and ceiling included




Technical Specifications
| Field of View | H: 180°, V: 180°, D: 180° |
| Resolution | 4K |
| Image Settings | Color, Brightness, Sharpness, Contrast, White Balance, Exposure Control, 2DNR, 3DNR, Motion Noise Reduction (NR by Motion), Masking, Text Overlay |
| Max. Frame Rate | 20 FPS |
| Video Resolution | 4MP 2560 x 2560 (1:1) |
Optics |
|
| Sensor | 12MP CMOS |
| Lens | Fixed Focal Length |
Other |
|
| Power Supply Method | Theta Proprietary Method |
| Power Supply | 5V DC, 0.5A |
| Max. Power Consumption | 2.5W |
| Certifications | FCC, IC, CE |

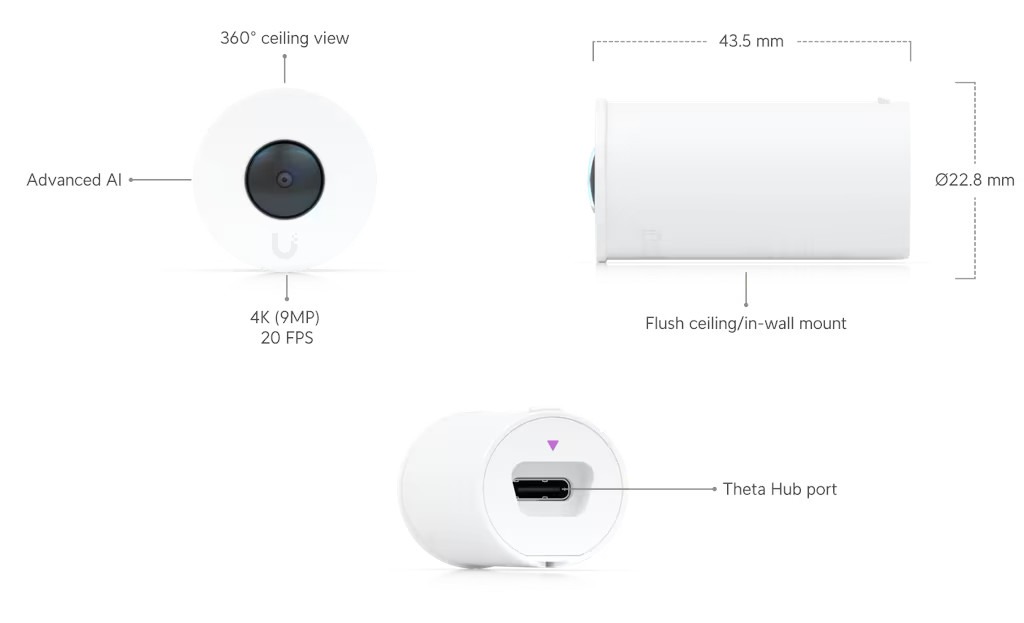

| Dimensions | ⌀22.8 x 43.5 mm |
| Weight | 15 g (0.5 oz) |
| Operating Environment | Indoor Only |
| Mounting | Wall, Ceiling (Included) Angle Mount (optional) |
| Case Material | Aluminum Alloy, Polycarbonate |
| Handle Material | Polycarbonate |
| Operating Temperature | -20 to 40° C |
| Operating Humidity | 10 to 90% (non-condensing) |




| Manufacturer SKU | UVC-AI-Theta-Lens-360 |
|---|---|
| Manufacturer | Ubiquiti |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
