UBIQUITI AI Dome (UVC-AI-Dome-W)
| Manufacturer SKU | UVC-AI-Dome-W |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 12 |

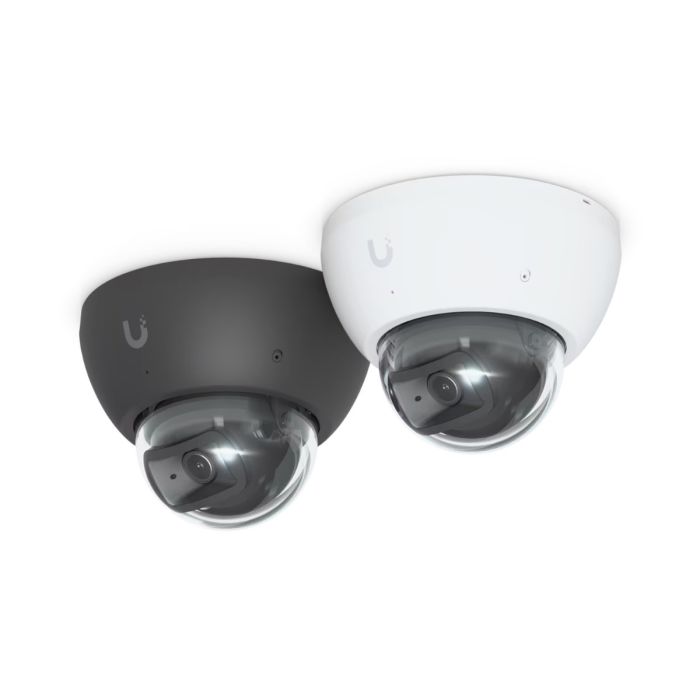

The UVC-AI-Dome-W is a smart 4K AI dome camera from Ubiquiti with PoE support, IR night vision up to 30m, and advanced image analysis. Fully compatible with UniFi Protect, it ensures precise detection of people and vehicles.
Product Name
Ubiquiti UVC-AI-Dome-W is a smart 4K AI dome camera with long-range IR and object detection. Its vandal-resistant, weatherproof design (IK10/IP66) makes it suitable for both indoor and outdoor environments.
Product description
The UVC-AI-Dome-W from Ubiquiti is a professional-grade 4K dome camera designed to deliver intelligent video surveillance in any setting. Powered by an 8 MP sensor and fixed focal lens, it provides Ultra HD video at 3840 × 2160 resolution and a wide diagonal field of view of 134.1°, covering large areas with a single device.
Integrated IR LEDs offer night vision up to 40 meters, while the rugged IP66-rated and IK10-certified housing ensures full weather and impact resistance. The black design minimizes visual presence, ideal for discreet installation in low-light or dark interior ceilings.
The built-in AI engine enables advanced detection and analytics – recognizing people, vehicles, faces, and license plates – enhancing situational awareness and reducing false alerts. HDR processing further ensures detailed image clarity in challenging lighting conditions.
The camera seamlessly integrates with UniFi Protect (version 1.10.0 or later), providing live viewing, playback, and AI alert management without subscription fees. Power over Ethernet (PoE) streamlines installation, while onboard microSD card support enables local edge storage for added resilience.
With cutting-edge features and durable construction, UVC-AI-Dome-W is an optimal choice for retail, hospitality, logistics, education, and corporate sectors requiring secure and scalable surveillance solutions.
Key Features
- 4K Ultra HD (8 MP) resolution: Captures crisp video footage with exceptional detail and clarity.
- Wide 109.9° horizontal field of view: Ideal for monitoring open spaces and wide areas with a single device.
- 40 m IR night vision: Ensures visibility in complete darkness with built-in IR LEDs and cut filter.
- Advanced AI detection: Includes facial recognition, license plate reading, and smart object tracking.
- IK10/IP66 housing: Durable, impact- and weather-resistant design for challenging environments.
- Edge recording & PoE: Local microSD storage support and single-cable PoE connectivity.
Technical Specifications
Mechanical
| Dimensions | Ø118 × 90.8 mm |
| Weight | 700 g |
| Enclosure material | Aluminum alloy, polycarbonate |
Hardware
| Sensor | 1/1.8″ 8 MP |
| Lens | Fixed focal length |
| Field of view | H: 109.9°, V: 56.7°, D: 134.1° |
| Night mode | IR LEDs + IR cut filter, up to 40 m |
| Video compression | H.264 |
| Max resolution | 3840 × 2160 (16:9) |
| Max frame rate | 30 FPS |
| Image settings | HDR, 2D/3D NR, brightness, contrast, masking, etc. |
| Networking interface | Gigabit Ethernet (RJ45) |
| Max. power consumption | 10 W |
| Power method | PoE (802.3af) |
| Supported voltage range | 42.5–57 V DC |
| Audio | Microphone (yes, can be disabled) |
| Storage | microSD slot (64 GB or more recommended) |
Applications and compatibility
The UVC-AI-Dome-W is ideal for business parks, schools, hotels, warehouses, and public spaces requiring high-quality, intelligent video surveillance.
It is fully compatible with UniFi Protect, available on desktop and mobile apps, and supports scalable deployment using UniFi NVRs or local edge storage.
Product video
Watch the official product presentation of the Ubiquiti UVC-AI-Dome-W camera:
Summary
The UVC-AI-Dome-W combines 4K clarity, AI analytics, edge storage, and PoE in a vandal-proof enclosure – the perfect solution for smart, scalable, and secure enterprise surveillance.
