Ubiquiti USW-Pro-XG-8-PoE – 8-Port 10G PoE++ L3 Switch with SFP+
| Manufacturer SKU | USW-Pro-XG-8-PoE |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 4 |
Discover the Ubiquiti USW-Pro-XG-8-PoE: a compact 8-port 10G PoE++ L3 managed switch with 2 SFP+ ports and 155W PoE budget.
Accessories and add-ons:
UniFi Switch Pro XG 8 PoE – 8-Port 10G PoE++ Managed L3 Switch with Dual SFP+
Ubiquiti UniFi Switch Pro XG 8 PoE (USW-Pro-XG-8-PoE) is a compact, high-performance Layer 3 managed switch featuring eight 10 Gigabit RJ45 ports with 802.3bt PoE++ support and two 10G SFP+ uplink ports. The RJ45 ports support both data transmission and PoE++ output, delivering up to 60 W per port and a total PoE budget of 155 W, making the switch suitable for powering high-performance access points, PTZ cameras, or PoE lighting systems.
The switch delivers a non-blocking throughput of 100 Gbps, a switching capacity of 200 Gbps, and forwarding capacity of 149 Mpps. It supports both Layer 2 and Layer 3 features including VLANs, LACP, IGMP snooping, static IPv4 routing, inter-VLAN routing, and a DHCP server/relay. The device is managed via the UniFi Network platform and supports Etherlighting™, allowing LED port illumination for easier port identification (by speed, VLAN, or link state). It is powered by an external 210 W AC/DC adapter and is suitable for desktop or wall mounting.
Key Features
- 8 × 10G PoE++ RJ45 ports: supports 802.3bt PoE++ (up to 60 W per port) for direct powering of high-demand devices
- 2 × 10G SFP+ ports: for fiber uplinks or high-speed switch interconnection
- 155 W total PoE budget: supports simultaneous powering of multiple 802.3af/at/bt devices
- Advanced Layer 3 functionality: includes DHCP server/relay, inter-VLAN routing, and static IPv4 routing
- Compact metal housing with Etherlighting™: port status illumination simplifies diagnostics and cable tracing
Technical Specifications
Mechanical

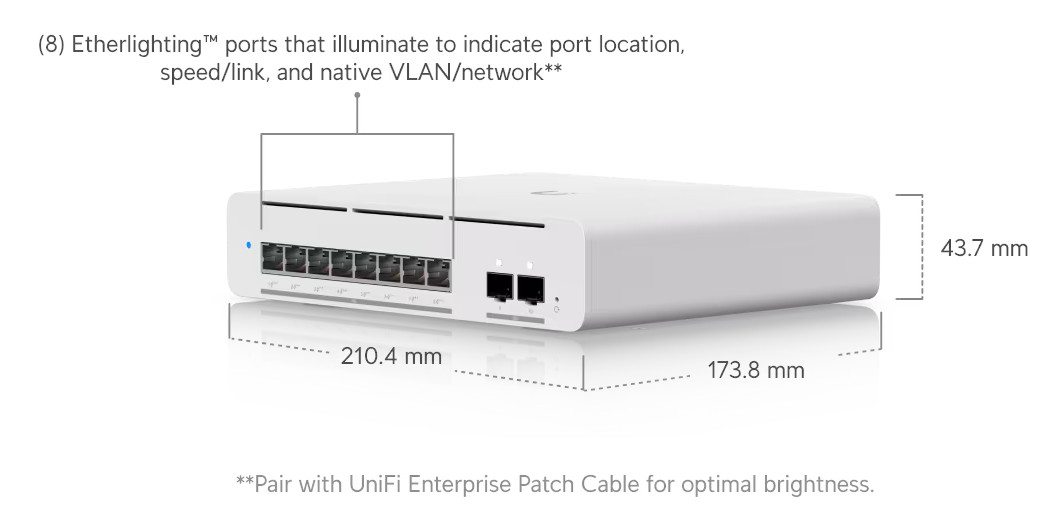

| Dimensions | 210.4 × 173.8 × 43.7 mm |
| Weight | 1.6 kg |
| Mounting | Desktop or wall mount |
| Enclosure material | SGCC steel |
| Mounting bracket material | Polycarbonate |
Hardware

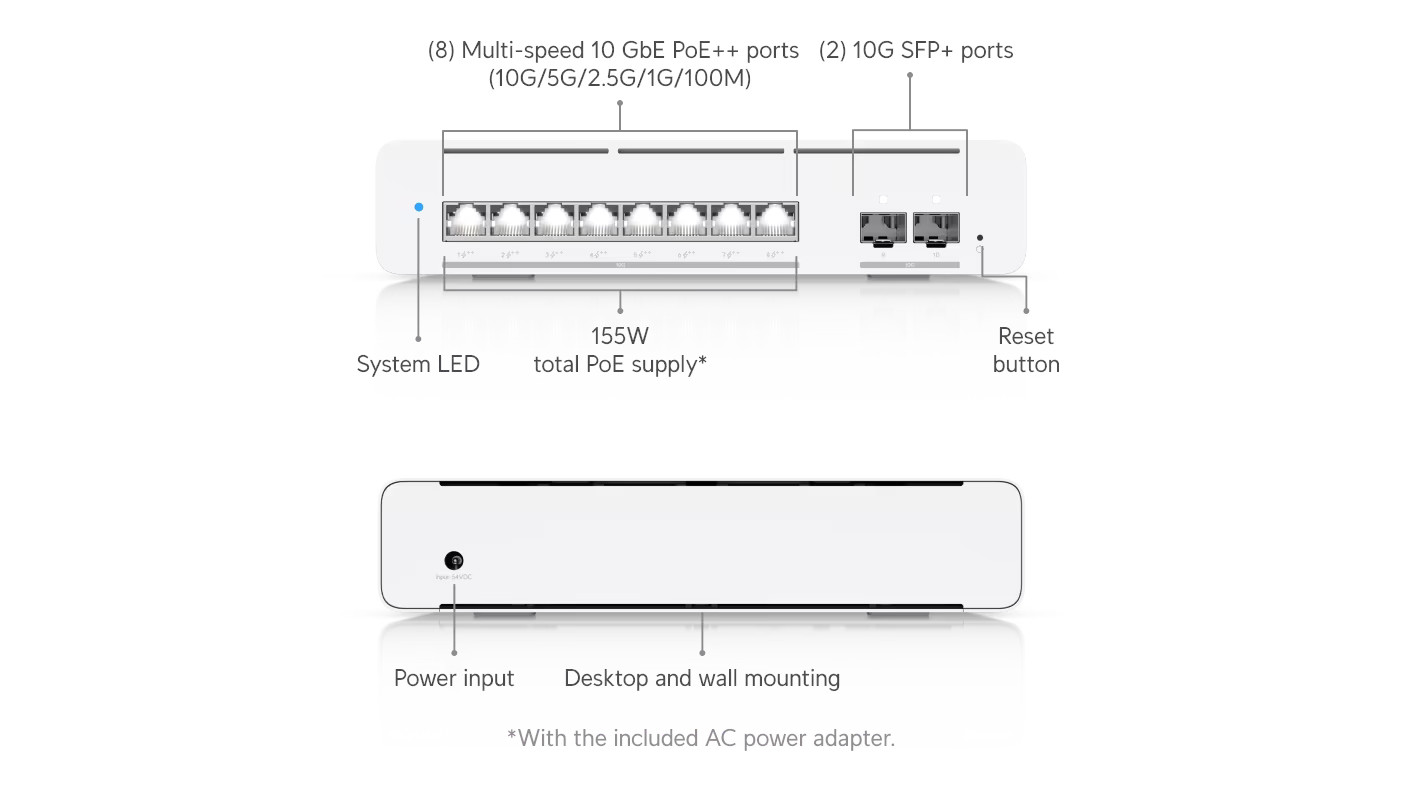

| Ethernet ports | 8 × 10 GbE RJ45 (PoE++) |
| SFP+ ports | 2 × 10 Gbps SFP+ |
| Switching capacity | 200 Gbps |
| Non-blocking throughput | 100 Gbps |
| Forwarding rate | 149 Mpps |
| Packet buffer size | 2 MB |
| MAC address table | 32,000 entries |
| Supported VLANs | 1000 |
| ARP table size | 12,000 |
| Static routes (IPv4) | 12,000 |
| Layer 3 functions | DHCP Server, DHCP Relay, Inter-VLAN Routing, Static IPv4 Routing |
Power
| Power supply | External AC/DC 210 W (included) |
| Max. power consumption | 61 W (no PoE load) 220 W (with full PoE load) |
| Total PoE budget | 155 W |
| PoE standards | 802.3af/at/bt (PoE, PoE+, PoE++) |
| Max. PoE per port | 60 W (PoE++) |
Environmental
| Operating temperature | -5°C to 45°C |
| Operating humidity | 10% – 90% non-condensing |
| ESD/EMP protection | ±30 kV (air), ±30 kV (contact) |
| Certifications | CE, FCC, IC |
| NDAA compliance | Yes |
Product Video
Official introduction video for UniFi Switch Pro XG 8 PoE:
| Manufacturer SKU | USW-Pro-XG-8-PoE |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 4 |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
