Ubiquiti USW-Pro-XG-10-PoE – 10-Port 10G PoE++ L3 Managed Switch
Manufacturer SKU | USW-Pro-XG-10-PoE |
---|---|
Manufacturer | Ubiquiti |
Powerful 10G Layer 3 switch with 10× 10G PoE++ ports, 400W budget, Etherlighting™, and SFP+ uplinks. Ideal for high-performance enterprise networks.
UniFi Switch Pro XG 10 PoE – 1U 10‑Port 10G PoE+++ Layer 3 Switch with Etherlighting™
Product Description
UniFi Switch Pro XG 10 PoE is a professional-grade, 1U rackmount switch that delivers high-performance 10 Gigabit connectivity and advanced Layer 3 capabilities for enterprise networks. It features (10) auto-negotiating 10 GbE RJ45 ports that support multi-gig speeds (10G/5G/2.5G/1G/100M) and (2) 10 GbE SFP+ ports for fiber uplinks or aggregating multiple links. All ten RJ45 ports are 802.3bt PoE+++-enabled, allowing the switch to not only connect but also power a full array of high-bandwidth devices. With its Layer 3 switching functionality (including inter-VLAN routing, static routing, and a DHCP server/relay), the Pro XG 10 PoE can act as a core or distribution switch, efficiently managing local traffic between networks at 10 Gigabit speeds.
The USW-Pro-XG-10-PoE offers a total PoE budget of 400 W, providing up to 90 W on each RJ45 port to support power-hungry devices. This makes it ideal for directly powering next-generation Wi-Fi 6/6E/7 access points, PTZ security cameras, high-performance wireless bridges, or even PoE-driven lighting panels, all while handling their maximum data throughput. An internal 550 W AC/DC power supply is built in, and the switch also supports redundant power via a UniFi SmartPower RPS connection – ensuring uninterrupted operation in mission-critical deployments. The unit’s durable SGCC steel chassis and efficient cooling design (near-silent, temperature-regulated fan operation) keep the switch running reliably within a broad operating range (up to 40°C ambient) in a compact 1U form factor.
As a fully-managed UniFi switch, the Pro XG 10 PoE integrates seamlessly with the UniFi OS ecosystem. It is controlled through the UniFi Network application, allowing centralized management of all ports, VLANs, security settings, and PoE schedules alongside other UniFi devices. For convenient on-site monitoring, the front panel features a 1.3 inch LCM color touchscreen that displays device status, port statistics, and alerts. Additionally, this model introduces Ubiquiti’s innovative Etherlighting™ technology – each Ethernet port is equipped with programmable RGB LED backlighting that illuminates connected translucent patch cables, making cable identification and network troubleshooting visually intuitive. With its combination of multi‑gigabit performance, substantial PoE capacity, and advanced manageability, the UniFi Switch Pro XG 10 PoE is an excellent choice for building out next-generation 10G networks in enterprise campuses, data centers, or high-end smart homes.
Key Features
- 10× 10G PoE+++ RJ45 ports: Ten auto-negotiating 10 Gigabit Ethernet ports with 802.3bt PoE+++ support (90 W max per port) for high-speed connectivity and powering of advanced devices.
- 2× 10G SFP+ uplinks: Two 10 Gbps SFP+ fiber ports provide high-bandwidth uplinks or link aggregation, enabling flexible network expansion and long-distance fiber connections.
- Layer 3 switching: Supports inter-VLAN routing, DHCP server/relay, and static IP routing, allowing local traffic to be routed between subnets without a separate router for improved network efficiency.
- 400 W PoE power budget: High total PoE output (802.3af/at/bt) to simultaneously power multiple devices – ideal for Wi-Fi 6/7 access points, PTZ cameras, VoIP phones, and PoE-enabled LED lighting installations.
- Redundant power option: Equipped with a UniFi SmartPower RPS DC input for backup power redundancy. In the event of an AC power failure, an external RPS unit can automatically keep the switch and connected devices online.

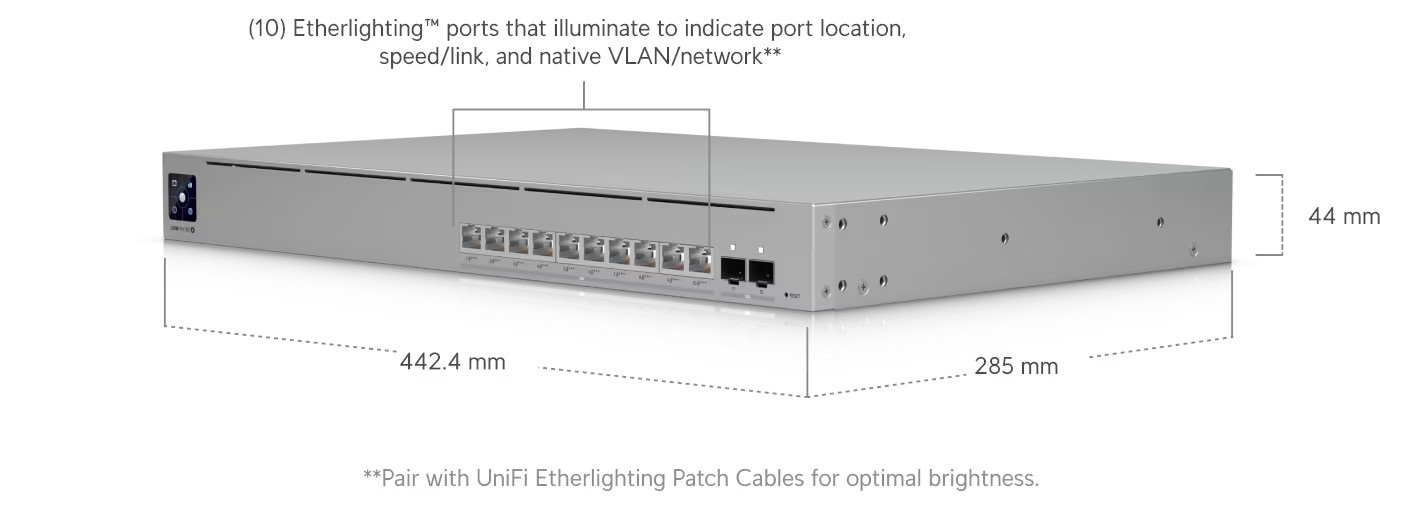

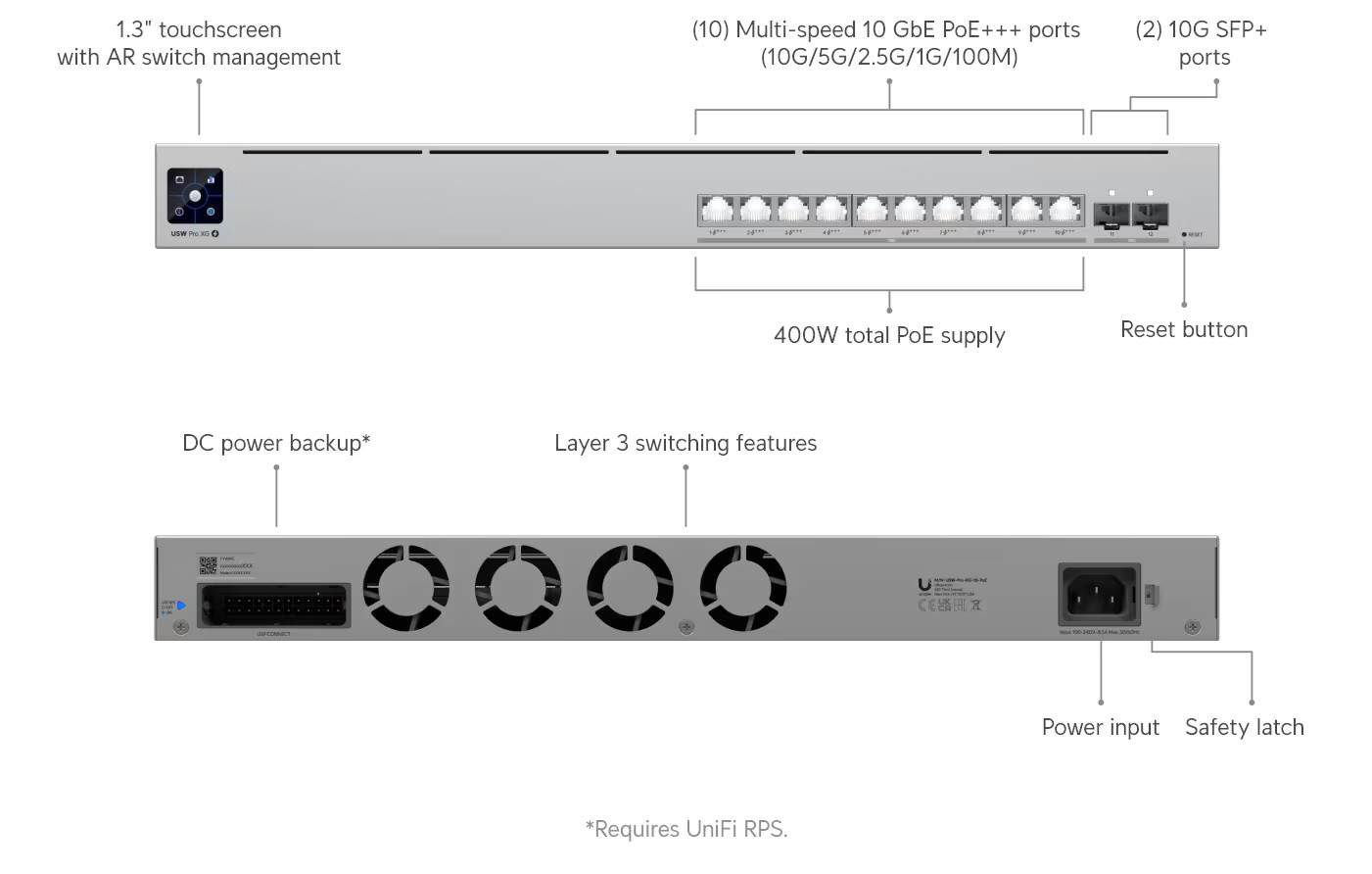

- 1.3″ touchscreen & Etherlighting: Integrated front-panel LCM display for real-time status, alerts, and basic configuration. Each port features Etherlighting™ RGB LEDs, which illuminate attached cables for easy port identification and an enhanced visual management experience.
- UniFi Network integration: Seamlessly integrates with the UniFi Network application (UniFi OS Console) for centralized management, monitoring, and firmware updates, alongside other UniFi devices. Offers a single-pane-of-glass management for all switching and PoE settings.




Technical Specifications
Mechanical
Dimensions | 442.4 × 285 × 44 mm (17.4 × 11.2 × 1.7″) |
Weight (without brackets) | 4.6 kg (10.14 lb) |
Weight (with brackets) | 4.7 kg (10.36 lb) |
Enclosure Material | SGCC Steel |
Mount Material | SGCC Steel |
Mounting | 19″ rack-mount (1U) |
Hardware
Networking Interfaces | (10) 10GBASE-T RJ45 ports (100M/1G/2.5G/5G/10G, PoE+++ on all) (2) 10G SFP+ ports (10G/1G) |
LCM Display | 1.3″ TFT color touchscreen |
Etherlighting | Yes, port illumination on RJ45 & SFP+ ports |
LED Indicators | System, RPS |
Layer 3 Switching | Yes (DHCP Server/Relay, Inter-VLAN Routing, Static Routes) |
Performance
Switching Capacity | 240 Gbps |
Non-Blocking Throughput | 120 Gbps |
Forwarding Rate | 179 Mpps |
Max. VLANs | 1,000 |
MAC Address Table | 32,000 entries |
L3 Routing Table | 12,000 ARP entries / 12,000 IPv4 routes |
Packet Buffer | 2 MB |
Power
Power Method | (1) Universal AC input, 100–240 V AC, 50/60 Hz (1) UniFi SmartPower RPS DC input (redundant power) |
Power Supply | Internal 550 W AC/DC PSU |
Max. Power Consumption | 65 W (excluding PoE output) 520 W (with PoE output) |
PoE Standards | 802.3af/at/bt (PoE+++, up to 90 W per port) |
Total PoE Budget | 400 W |
Environment
Operating Temperature | -5° C to 40° C (23° F to 104° F) |
Operating Humidity | 10 – 90% RH (non-condensing) |
Cooling | Near-silent, temperature-controlled fan cooling |
ESD/EMP Protection | Air: ±30 kV; Contact: ±30 kV |
Certifications | CE, FCC, IC |
NDAA Compliant | Yes |
Manufacturer SKU | USW-Pro-XG-10-PoE |
---|---|
Manufacturer | Ubiquiti |
GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
