Ubiquiti Device Bridge IoT - UDB-IoT

Ubiquiti Device Bridge IoT – Compact Wireless Bridge

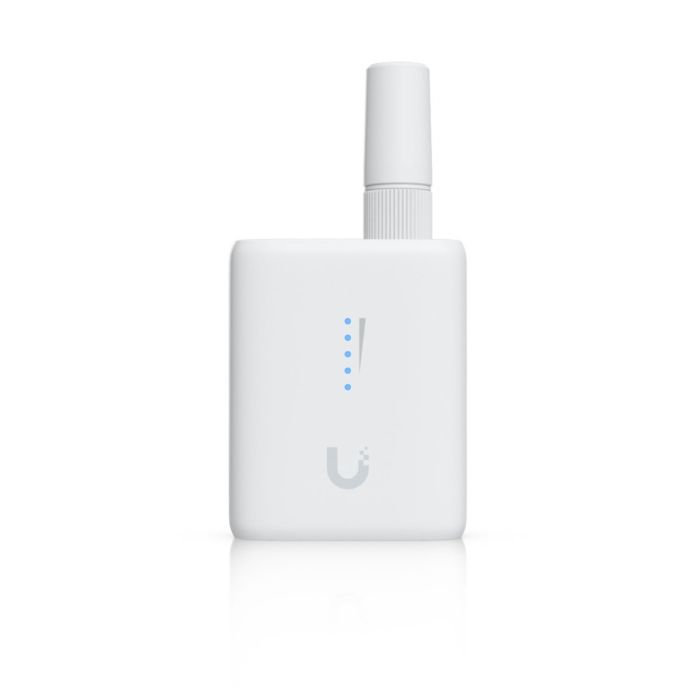

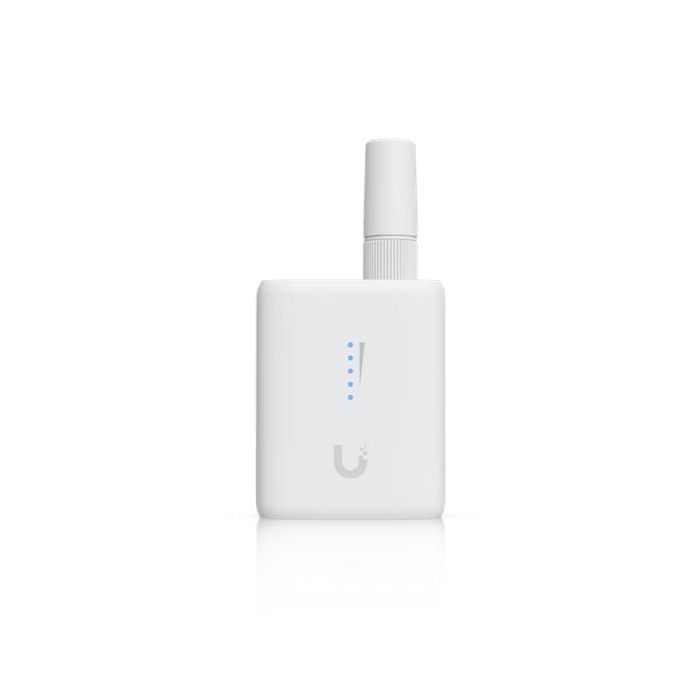

The Ubiquiti Device Bridge IoT - UDB-IoT is a small, compact device that can be used to wirelessly connect a device equipped with an Ethernet port. The UDB IoT can function as a wireless bridge, providing Wi-Fi connectivity to devices equipped only with a wired Ethernet port, such as printers, cash registers, etc. The device has one 10/100 Mbps Ethernet port and operates in the 2.4 GHz band using the Wi-Fi 4 standard (802.11n, MIMO 2x2). This frequency ensures better signal penetration through obstacles compared to the 5 GHz band, which is crucial in industrial and commercial environments.

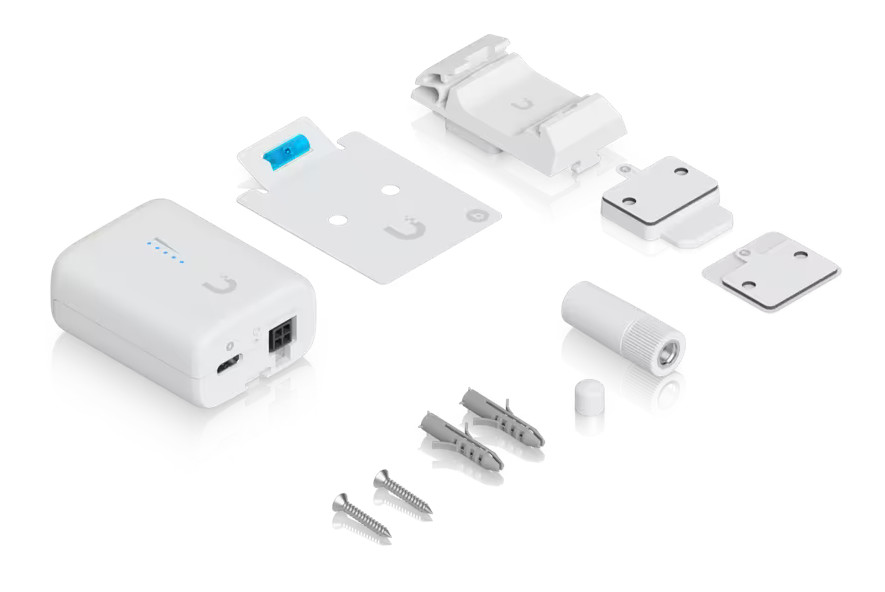

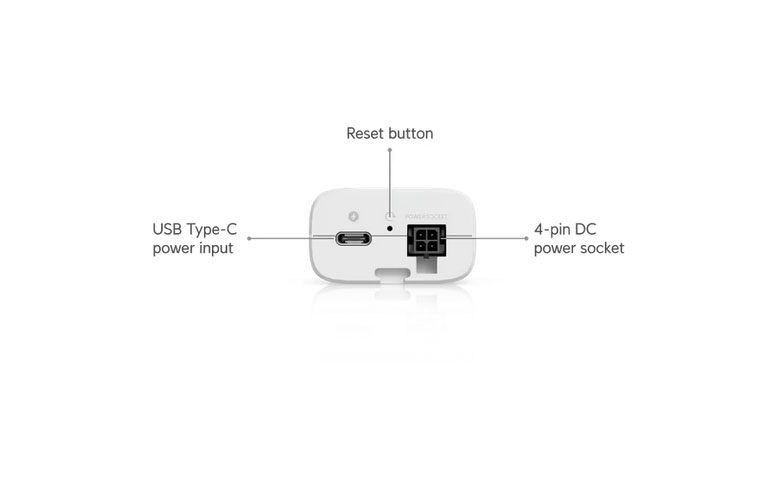

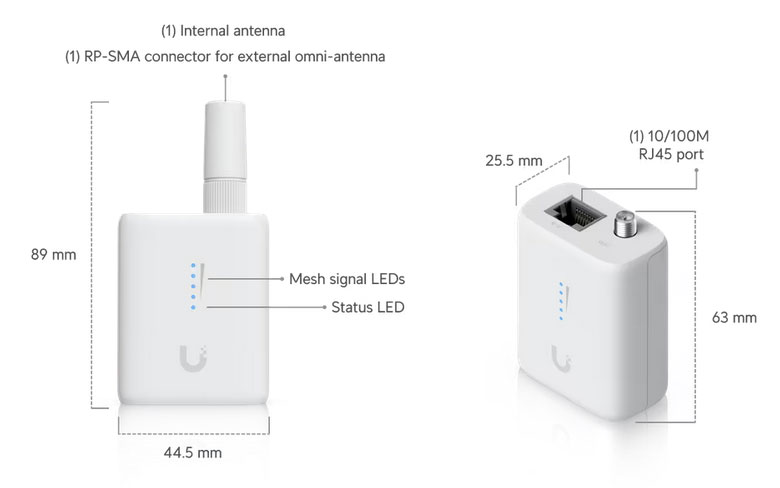

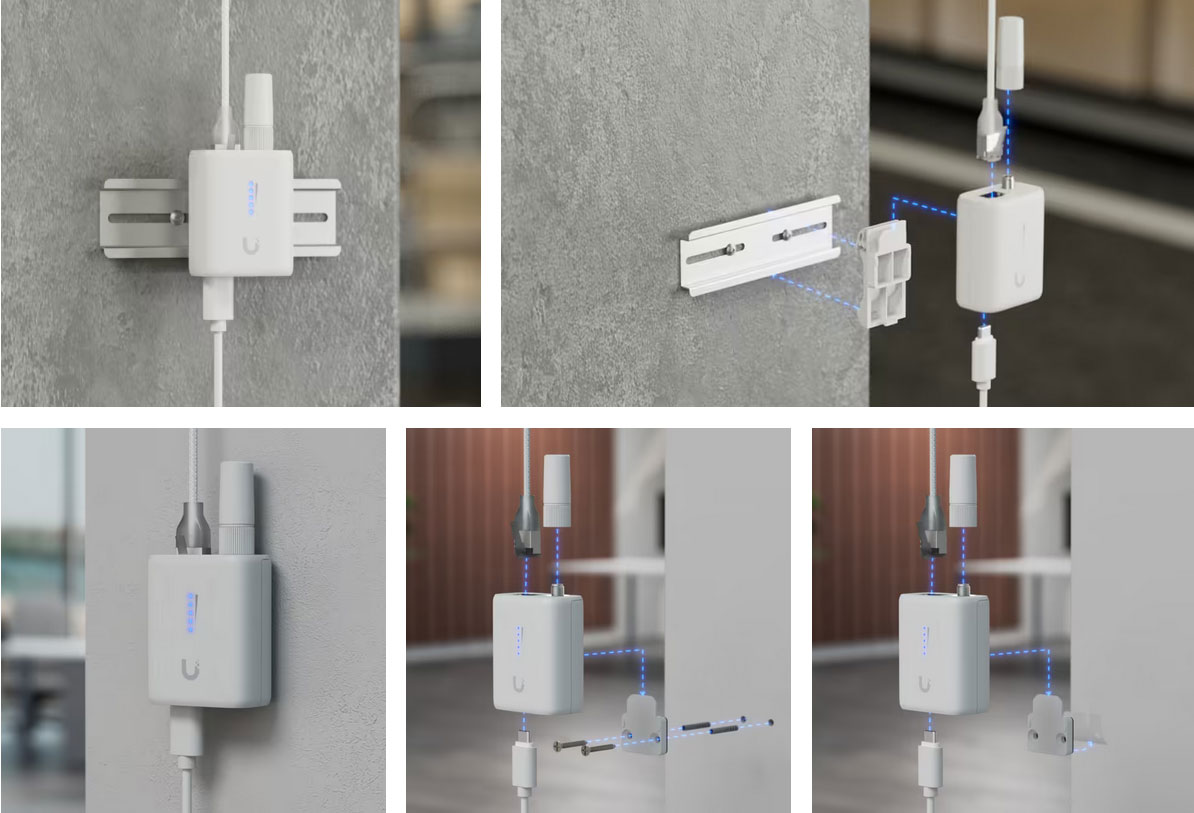

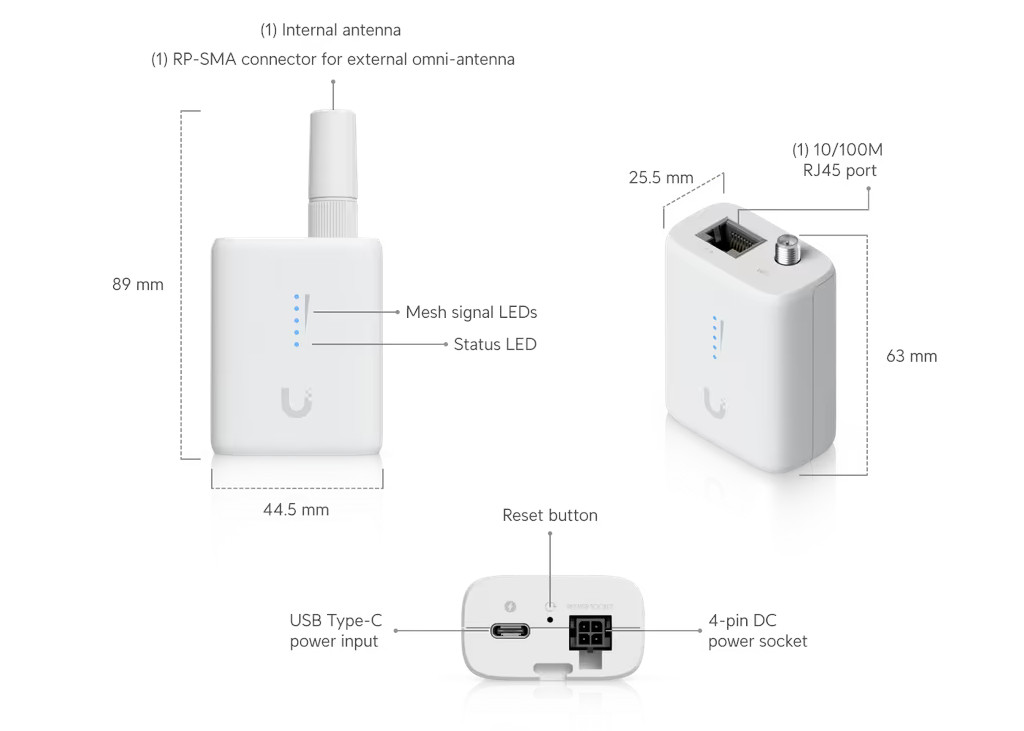

A key advantage of the device is its flexible installation. The UDB-IoT is equipped with a dual power supply: a USB-C connector (5V) and a 4-pin DC terminal connector supporting a wide voltage range of 9-30V. The device has one internal antenna (4 dBi) and one external omnidirectional antenna (3 dBi) for improved range. Its design allows for wall or DIN rail mounting (bracket included), making it an ideal solution for control cabinets.

The device is ideal for connecting IoT devices, industrial controllers, cash registers, network printers, and surveillance cameras in locations where LAN cable access is difficult. Integration with the UniFi ecosystem via the Auto-Link function simplifies configuration, and security is ensured by the WPA2 AES standard.

Key Features

• Function: WiFi to Ethernet Bridge
• Network Interface: 1× RJ45 10/100 Mbps Port
• Throughput: Max. 300 Mbps (BW40)
• Wireless Standard: WiFi 4 (802.11n), 2.4 GHz Band, 2x2 MIMO
• Antennas: 1× Internal (4 dBi), 1× External Omnidirectional (3 dBi)
• Power Supply (Dual Mode): USB Type-C (5V DC) and 4-pin terminal connector (9–30V DC)
• Power Consumption: Max. 2.3 W
• Mounting: Wall-mounted or DIN rail-mounted (bracket included)
