Ubiquiti - Display Cast Pro - UC-Cast-Pro
Manufacturer SKU | UC-Cast-Pro |
---|---|
Manufacturer | Ubiquiti |
Discover Ubiquiti UC-Cast-Pro, a 4K digital signage player with HDMI, PoE, USB-C, 8 GB RAM, and UniFi Connect management. Reliable solution for professional displays.
Accessories and add-ons:

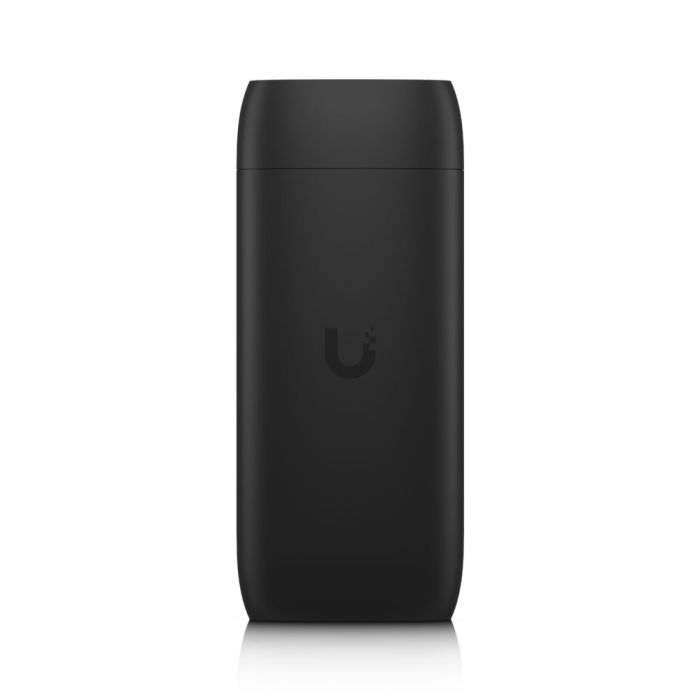

Ubiquiti UC-Cast-Pro – 4K Digital Signage Player with USB-C and PoE

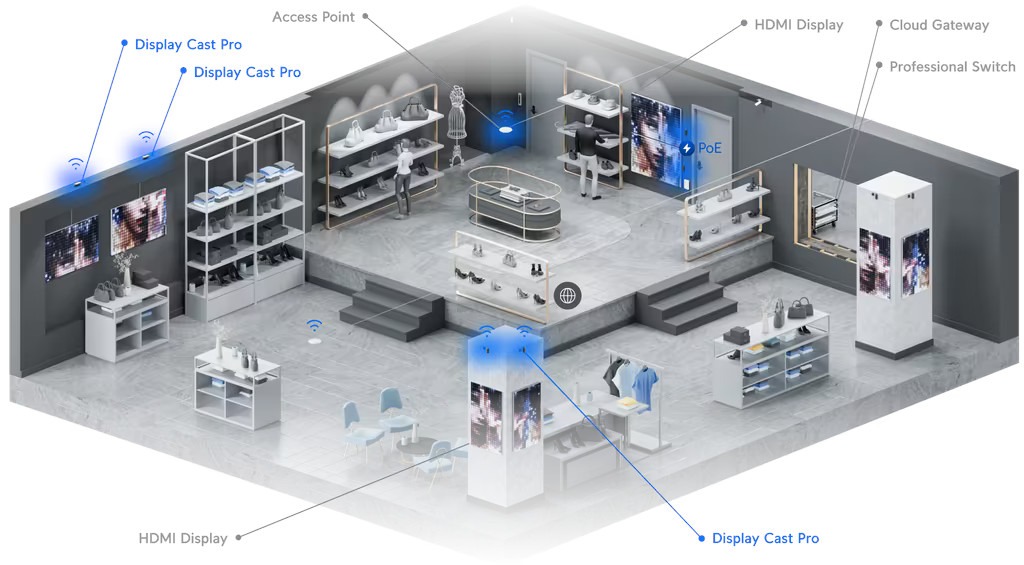

UC-Cast-Pro is a digital signage player designed for HDMI displays, enabling multimedia playback, website display, and peripheral device support via USB-C. The Ubiquiti UC-Cast-Pro supports resolutions up to 4K and is managed through the UniFi Connect platform.
Main Features
- HDMI output: video support at 480p, 720p, 1080p, and 4K resolutions.
- Processor and GPU: octa-core processor (2 × ARM Cortex-A78 + 6 × ARM Cortex-A55) with integrated Mali-G57.
- Memory: 8 GB RAM and 32 GB internal storage.
- Power supply: via Ethernet with PoE (48 V DC, 0.35 A) or through USB-C (5 V DC, 3 A).
- Wireless connectivity: Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4 GHz and 5 GHz bands.
- Management: through the UniFi Connect platform (web and mobile application).
- NDAA compliance and certifications: NDAA compliant, CE, FCC, IC, Wi-Fi Certified, UL 62368-1, CSA C22.2 No. 62368-1.
- Web mode support: ability to display websites as a content source.
- USB-C support: allows connection of keyboard and mouse.
Technical Specification

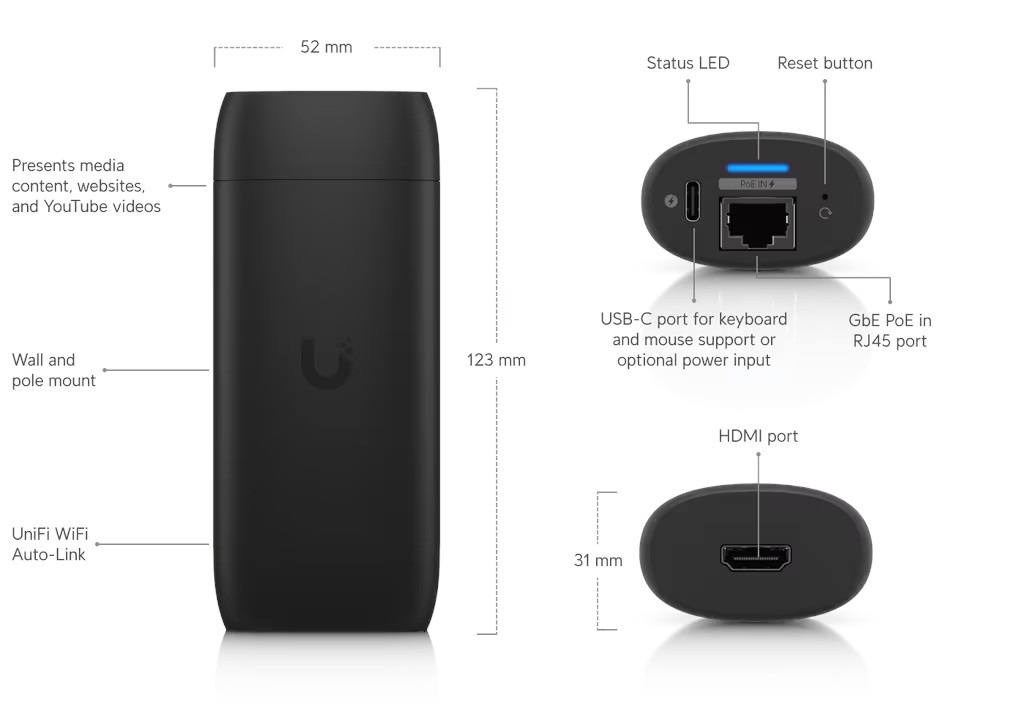

Mechanical
Dimensions without mount | 123 × 52 × 31 mm |
Dimensions with mount | 125.1 × 56.3 × 40.8 mm |
Weight without mount | 240 g |
Weight with mount | 260 g |

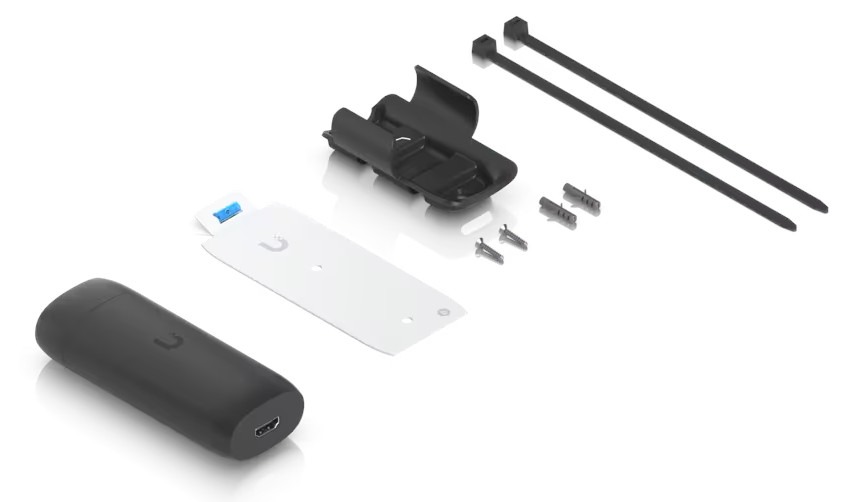

Pole diameter (mounting) | 25–50 mm |
Hardware
Ports / interfaces | 1 × HDMI, 1 × RJ-45 (GbE), 1 × USB-C |
Processor | Octa-core (2 × Cortex-A78 + 6 × Cortex-A55) |
GPU | Mali-G57 |
RAM | 8 GB |
Internal storage | 32 GB |
Power supply | PoE 48 V DC, 0.35 A or USB-C 5 V DC, 3 A |
Wi-Fi standards | 802.11a/b/g/n/ac/ax |
Wi-Fi bands | 2.4 GHz and 5 GHz |
Operating temperature | 0 to 40 °C |
Operating humidity | 20–90% non-condensing |
Certifications | CE, FCC, IC, Wi-Fi Certified, UL 62368-1, CSA C22.2 No. 62368-1 |
NDAA compliance | Yes |
Manufacturer SKU | UC-Cast-Pro |
---|---|
Manufacturer | Ubiquiti |
GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
