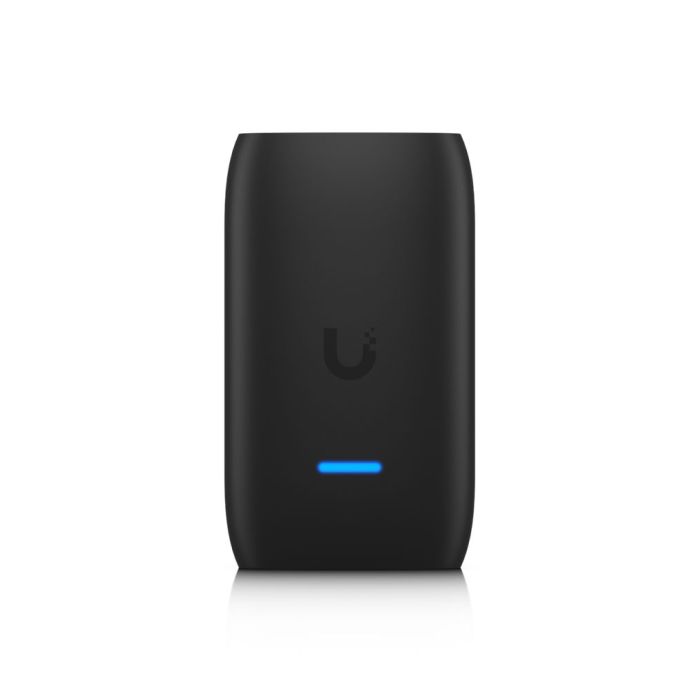

Ubiquiti - Display Cast Lite - UC-Cast-Lite
€192.72 €156.68
In stock
SKU
UBIQUITI-UC-CAST-LITE
Ubiquiti UC-Cast-Lite is a compact digital signage player with HDMI, Wi-Fi 6 dual-band connectivity, 2 GB RAM, and UniFi Connect management.
Accessories and add-ons:
Ubiquiti UC-Cast-Lite – Full HD Digital Signage Player with Wi-Fi 6

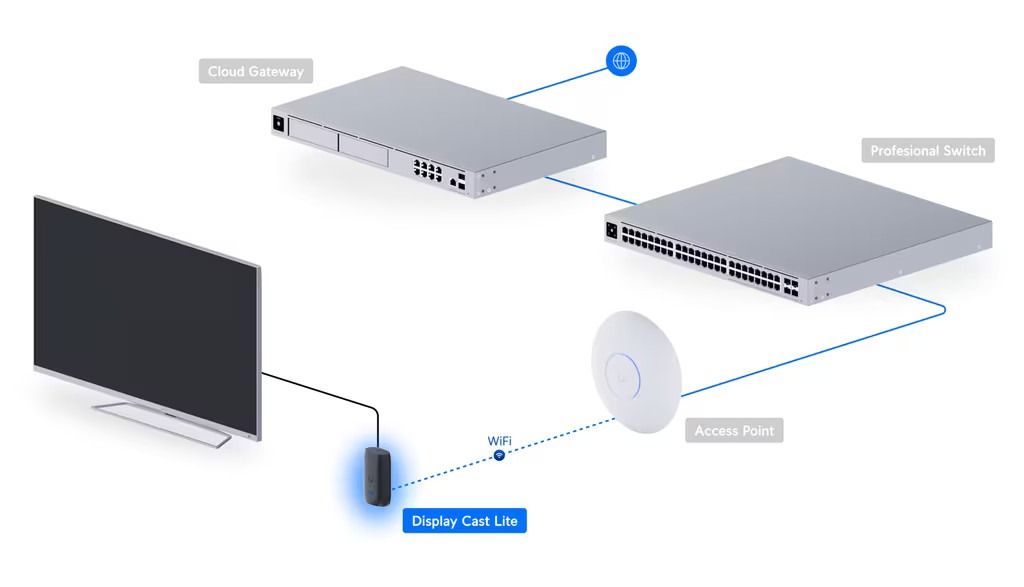

UC-Cast-Lite is a compact digital signage player designed for multimedia playback at resolutions up to 1080p on HDMI displays. The device features an HDMI port for connecting a display and a Wi-Fi 6 (802.11ax) module that provides dual-band wireless connectivity. The Ubiquiti UC-Cast-Lite is fully managed through the UniFi Connect platform (web or mobile application).
Main Features
- HDMI output: supports video up to 1080p at 60 fps (Full HD).
- Wireless connectivity: Wi-Fi 6 (802.11a/b/g/n/ac/ax), dual-band 2.4 GHz and 5 GHz.
- Processor: Quad-core ARM Cortex-A55 1.9 GHz.
- Memory: 2 GB RAM and 16 GB internal storage.
- Power supply: 5 V DC, 1 A (USB Type-C port), maximum power consumption 5 W.
- Management: via the UniFi Connect platform (web and mobile application).
Technical Specification
Mechanical

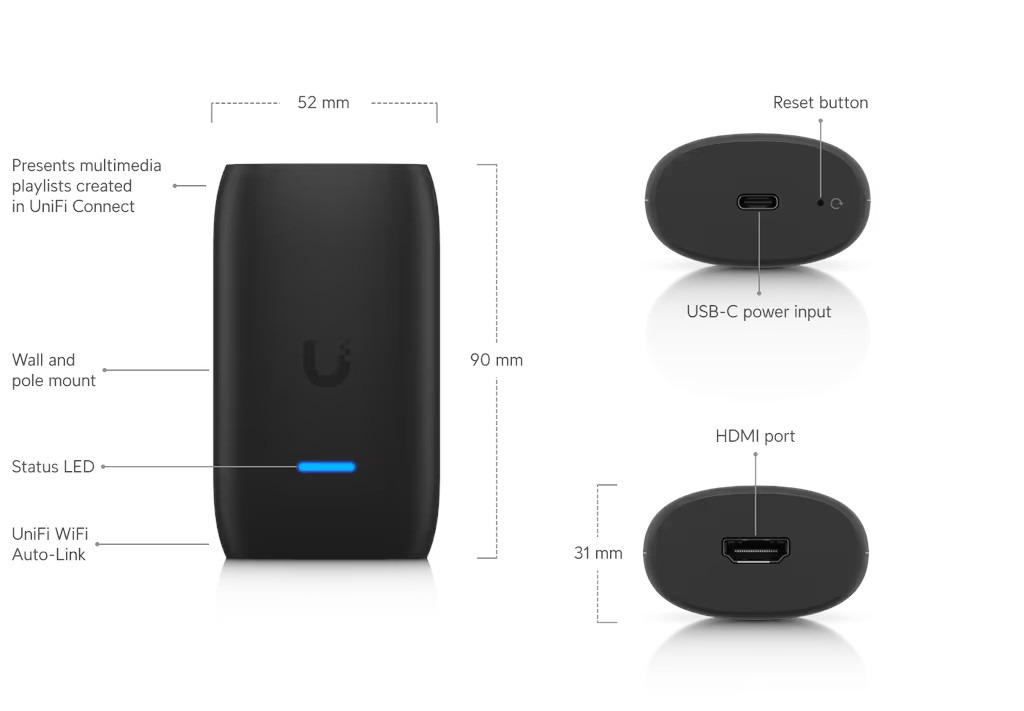

| Dimensions (without mount) | 90 × 52 × 31 mm (3.5 × 2.1 × 1.2") |
| Dimensions (with mount) | 92.1 × 56.3 × 40.8 mm (3.6 × 2.1 × 1.4") |
| Weight (without mount) | 160 g (5.6 oz) |
| Weight (with mount) | 180 g (6.3 oz) |
| Pole diameter (mounting) | 25–50 mm (1–2") |
Hardware
| Ports | 1 × HDMI (video output) |
| Processor | Quad-core ARM Cortex-A55 1.9 GHz |
| Memory | 16 GB internal storage, 2 GB RAM |
| Power supply | 5 V DC, 1 A (USB Type-C) |
| Maximum power consumption | 5 W |
| Wi-Fi standard | 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Wi-Fi frequencies | 2.4 GHz and 5 GHz |
| Operating temperature | 0–40 °C |
| Operating humidity | 20–90% non-condensing |
| NDAA compliance | Yes |
| Certifications | CE, FCC, IC, Wi-Fi CERTIFIED, UL 62368-1, CSA C22.2 No. 62368-1 |
| Manufacturer SKU | UC-Cast-Lite |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 16 |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
