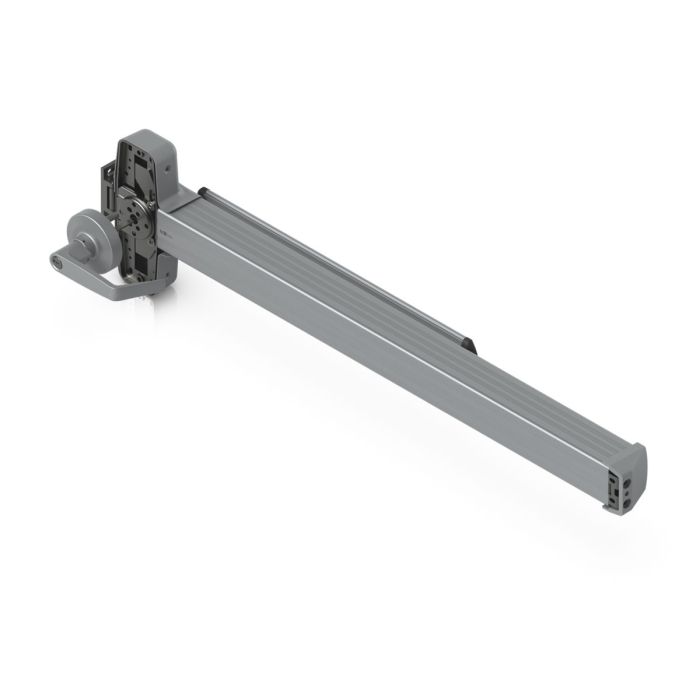

Ubiquiti Panic Bar (UACC-PanicBar)
| Manufacturer SKU | UACC-PanicBar |
|---|---|
| Manufacturer | Ubiquiti |
The Ubiquiti Panic Bar is designed for installation on emergency exit doors (steel or wood). The device features a built-in bar position sensor, enabling integration with an access control system. The bar complies with ANSI/BHMA Grade 1 standards, offers universal left/right mounting, and fits door leaves from 711 to 914 mm wide.
Ubiquiti Panic Bar - Panic Bar for Emergency Doors
Ubiquiti Panic Bar (UACC-PanicBar) is a single-point panic bar designed for installation on emergency doors, enabling immediate opening of the door leaf in emergency situations. The device integrates with access control systems via a built-in strip position sensor, which uses a potential-free output. A short circuit occurs when the bar is pressed, transmitting the output signal to the controller.
The structure is made of aluminum and stainless steel, ensuring resistance to damage. The mechanism is fully universal and allows for installation on both the right and left door leaf. The lever is suitable for installation on steel or wooden doors with a thickness of 44 mm or 51 mm and a width of 711 mm to 914 mm. The equipment meets stringent safety standards, including ANSI/BHMA A156.3 Grade 1 certification.
Key Features
-
Intended Use: Emergency exit door protection (universal left/right mounting).
-
Supported Doors: Steel and wooden doors (44 mm or 51 mm thick, working width 711–914 mm) mm).
-
Status Indication: Built-in strip position sensor with potential-free output (dry relay, 30V DC, 1A).
-
Safety Certificates: UL 305, UL 10C, CAN/ULC-S132, ANSI/BHMA A156.3 Grade 1.
Technical Specifications
| Supported Door Width | 3′ Standard for door widths from 2′4″ to 3′ (711 to 914 mm) |
| Supported Door Thickness | 1-3/4” (44 mm) and 2” (51 mm) thick for metal or wood doors |
| Hold | For 3/4” (19 mm) stop |
| Reversibility | Universal, reversible for all functions and Fittings |
| Stiley | Minimum 4-1/4” (108 mm) |
| Connection | 2 wires to dry contact relay |
| Wiring Connection | Dry Contact Output Contact Rating: 30V DC, 1A Press = Close / Release = Open |
Other |
|
| Dimensions | 838 x 294 x 94 mm (33 x 11.6 x 3.7") |
| Weight | 5.8 kg (12.8 lb) |
| Housing Material | Aluminum, Stainless Steel |
| Certifications |
UL 305, UL 10C, CAN/ULC-S132
ANSI/BHMA A156.3 Grade 1 Exit Devices
Meets California Building Code Sec. 11B-309.4.
|
| Manufacturer SKU | UACC-PanicBar |
|---|---|
| Manufacturer | Ubiquiti |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
