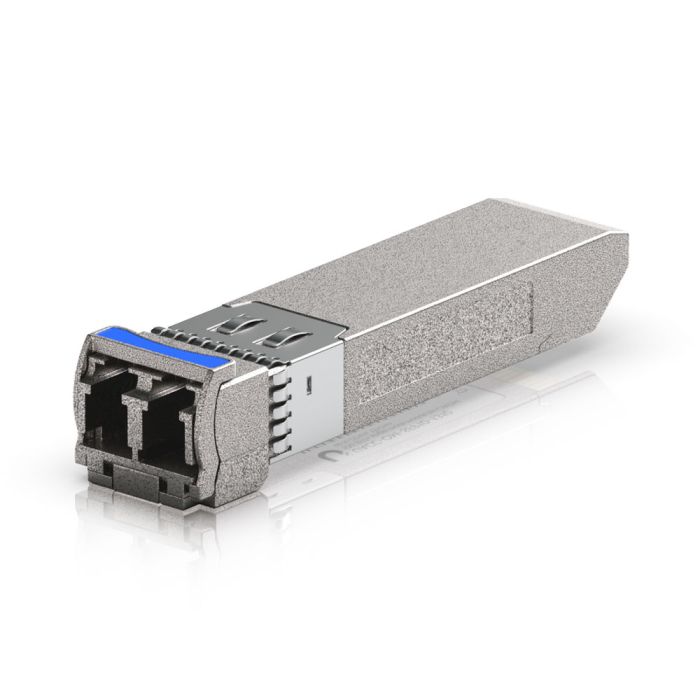

Ubiquiti 10G CWDM Single-Mode Optical Module - UACC-OM-SFP10-1310, 1-Pack

Ubiquiti 10G CWDM Single-Mode Optical Module – SFP+ CWDM 10G 20 km 1310 nm module

Ubiquiti 10G CWDM Single-Mode Optical Module (UACC-OM-SFP10-1310) is an SFP+ CWDM optical module operating at a wavelength of 1310 nm, designed for fiber optic connections with data rates of up to 10 Gbps. The transceiver is compatible with SFP+ and SFP interfaces and uses a Duplex LC connector. The module operates with single-mode fiber and supports transmission distances of up to 20km.

CWDM technology enables the transmission of multiple independent data channels using different wavelengths of light over a single optical fiber. CWDM modules operate at specific wavelengths and are connected to a CWDM multiplexer, which combines the individual wavelengths into a single optical fiber. At the other end of the link, a CWDM demultiplexer separates the signal into individual wavelengths, allowing the appropriate modules to receive the data. The module is also available in other variants.

Note: The modules on both sides of a given channel must be matched in terms of wavelength (e.g. 1310 nm on one side and the corresponding pair on the other). The fiber optic cable is not included.

Technical specifications
