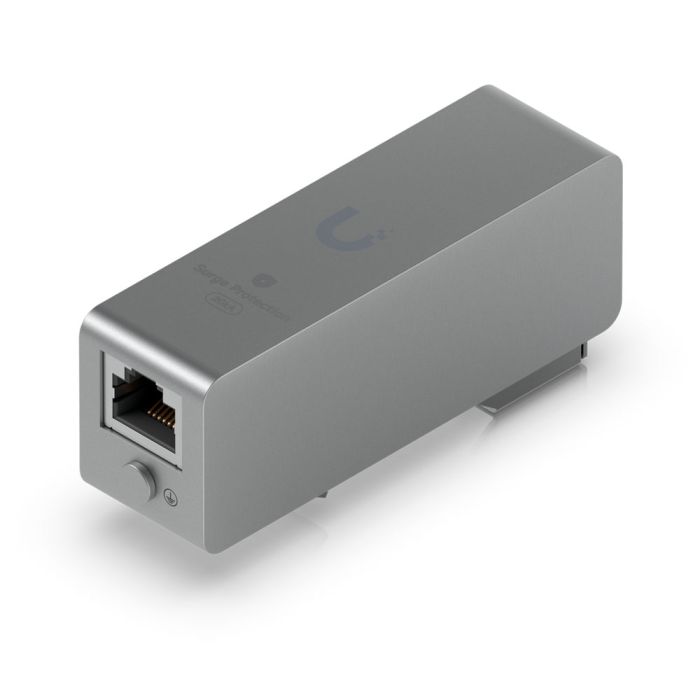

UBIQUITI Ethernet Surge Protection - 10 GbE PoE Surge Protector, 20 kA (UACC-ETH-SP-DIN)
Ubiquiti Ethernet Surge Protection is surge protection for Ethernet connections up to 10 Gb/s and PoE. It features a pair of RJ45 ports, surge current protection up to 20 kA, and supports DIN rail or wall mounting.
Ubiquiti Ethernet Surge Protection – 10 GbE surge protection device
Ubiquiti Ethernet Surge Protection (UACC-ETH-SP-DIN) is an indoor device designed for bidirectional protection of Ethernet connections against the effects of surges, electrostatic discharges, and electromagnetic pulses. The device supports data transmission speeds of up to 10 Gbps and PoE power, making it suitable for installations with network devices and access points powered over Ethernet.
The device is equipped with two female RJ45 connectors and a circuit capable of discharging surge currents of up to 20 kA. The DC activation voltage is 90 V at 100 V/s, while the maximum impulse activation voltage is 600 V at 1 kV/µs. The design protects data lines against transient overvoltages while maintaining transmission speeds of up to 10 GbE.
The enclosure is made of polycarbonate and SGCC steel. Ubiquiti Ethernet Surge Protection can be installed on a DIN rail or wall and features multiple grounding points, facilitating proper discharge of surge energy.
Technical specifications
| Network interface | (2) female RJ45 connectors |
| DC activation voltage | 90 V at 100 V/s |
| Maximum impulse activation voltage | 600 V at 1 kV/µs |
| Discharge current | 20 kA |
| Insulation | Max. resistance: 1 GΩ at 50 V |
| Maximum capacitance | 1.0 pF at 1 MHz |
| Data line protection | Up to 10 Gbps |
| PoE support | Yes |
| ESD/EMP protection | Transient current absorption with surge voltage response ranging from 100 V/s to 1 kV/µs |
| Bidirectional protection | Up to 10 GbE PoE+++ Discharge current up to 20 kA |
| Mounting | Wall DIN rail |
| Grounding | Multiple grounding points |
| Dimensions | 89 × 25.5 × 37.4 mm (3.5 × 1 × 1.5″) |
| Weight | 74 g (2.6 oz) |
| Enclosure material | Polycarbonate, SGCC steel |
| Operating temperature | −40 to 80°C (−40 to 176°F) |
| Operating humidity | 10 to 90%, non-condensing |
| Manufacturer SKU | UACC-ETH-SP-DIN |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 70 |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
