Ubiquiti - Enterprise NVR Bezel (UACC-ENVR-Bezel)
| Manufacturer SKU | UACC-ENVR-Bezel |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 6 |

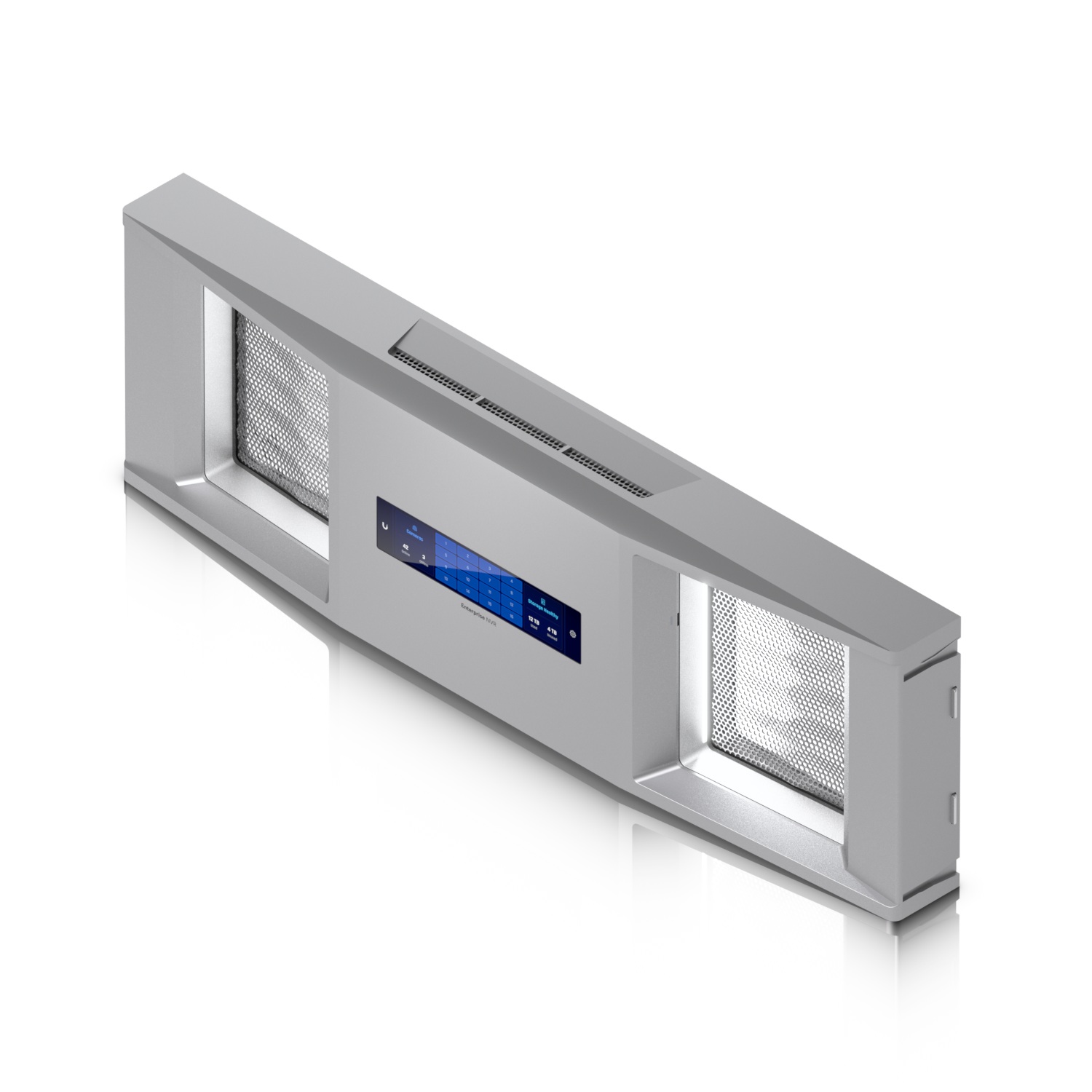

Faceplate that integrates with Enterprise Network Video Recorder to provide a 4.7" touch display and LED illumination.
UBIQUITI UACC-ENVR-Bezel
Product Description
The UACC-ENVR-Bezel is a front panel accessory designed for use with the UniFi Network Video Recorder (ENVR). Featuring a 4.7" touchscreen display and magnetic Type-C power interface, it allows users to view live feeds, manage hard drives directly, and enhance physical security through a mechanical door lock.
Key Features
- 4.7" touchscreen for live view and disk management
- Integrated mechanical disk bay door lock
- LED status bar with customizable lighting patterns and locator feature
- Magnetic Type-C power connector
- NDAA-compliant
Technical Specifications
Hardware
| SKU | UACC-ENVR-Bezel |
| Dimensions | 441.7 x 132 x 51.9 mm |
| Weight | 1.1 kg |
| Enclosure Material | Polycarbonate |
| Power Method | Magnetic USB Type-C |
| Max. Power Consumption | 3.78 W |
| Input Voltage | 5 V |
| Display | 4.7" capacitive touchscreen |
| LED Indicators | Custom patterns, wave animation, locator function |
| ESD/EMP Protection | Air: ±12kV, Contact: ±8kV |
| Operating Temperature | -5 to 40°C |
| Operating Humidity | 5% to 95% non-condensing |
| Certifications | CE, FCC, IC |
| NDAA Compliance | Yes |
Applications and Compatibility
The UACC-ENVR-Bezel enhances the UniFi ENVR by providing local access to disk and video management without the need for external displays. It adds security and visual clarity through built-in locking and lighting features.
Summary
UBIQUITI UACC-ENVR-Bezel is a touchscreen-equipped front bezel for the UniFi ENVR, combining usability, security, and physical control in a single module.
