Ubiquiti UISP Dual-Power Injector - External 2.5GbE PoE injector (UACC-Dual-Power-Injector)

Ubiquiti UISP Dual-Power Injector - External PoE injector for two Wave series devices

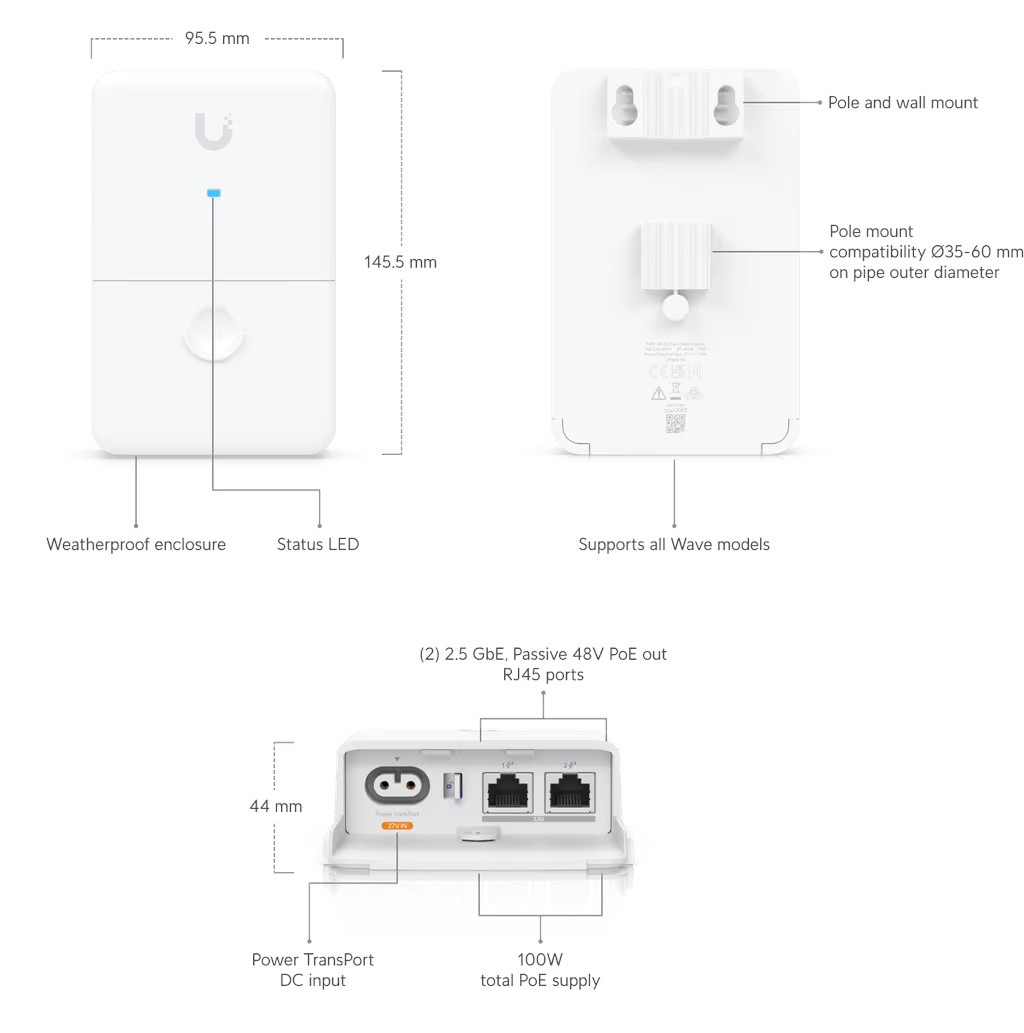

Ubiquiti UISP Dual-Power Injector (UACC-Dual-Power-Injector) is an external PoE adapter designed to simultaneously power two Wave series wireless devices. The module is equipped with two 2.5 GbE RJ45 network ports that provide 48V Passive PoE power. The maximum total output power budget for connected equipment is 100W. The injector is powered via a dedicated DC input connector (27V, 4.44A) using the Power TransPort standard. The housing is made of UV-resistant polycarbonate and has an IPX5 sealing rating, allowing for safe outdoor operation in temperatures ranging from -40°C to 60°C. The design is wind-resistant at speeds of up to 200 km/h. The device has brackets for direct wall mounting and pole installation on profiles with a diameter of 35 to 60 mm.

Note: Please note that an external power source is required to operate the device, such as the 120W Power TransPort Adapter (not included), the UISP Power module or UISP Power Pro.

List of compatible devices:

• Wave-AP
• Wave-AP-Micro
• Wave-Pico
• Wave-Pro
• Wave-LR
• Wave-Nano

Key features

• Network interface: 2x RJ45 2.5 GbE port with 48V Passive PoE support.

• Input Power: Power TransPort DC port (27V, 4.44A) – the device requires a separate power supply (e.g., 120W Power TransPort or UISP Power).

• Output Power: Total maximum PoE budget up to 100W.

• Ingress Protection Class: IPX5 (resistant to water jets and wind up to 200 km/h).

• Mounting options: Wall and pole-mounted (for pipes with a working diameter of 35–60 mm).
