Ubiquiti UniFi Indoor Cable Cat6A CMR - Indoor UTP cable 305m, twisted pair (UACC-Cable-C6A-CMR)
The Ubiquiti UniFi Indoor Cable Cat6A CMR is an indoor Cat6A UTP Ethernet cable. It features four pairs of 23 AWG solid copper conductors and an internal cross-separator. The outer jacket (7.05 mm diameter) is made of FRPVC and meets the CMR (Riser / UL 1666) flammability standard. It is available as a 305-meter roll.
Ubiquiti UniFi Indoor Cable Cat6A CMR – Indoor Cat6A Network Cable (305m)
Ubiquiti UniFi Indoor Cable Cat6A CMR (UACC-Cable-C6A-CMR) is an unshielded twisted pair (UTP) Category 6A cable designed for indoor network installations. The conductors are made of 23 AWG solid bare copper wire. Inside the cable, a cross divider effectively isolates the four twisted pairs, minimizing interference and pair-to-pair crosstalk.
The white outer jacket, with a diameter of 7.05 mm, is made of flame-retardant polyvinyl chloride (FRPVC). The cable features a CMR flame rating certified to UL 1666, providing enhanced resistance to flame spread. Connector termination and patch panel preparation are streamlined via an integrated ripcord for quick jacket stripping. The product is supplied in a continuous 305-meter (1,000 ft) length.
The cable complies with stringent telecommunications and safety standards, including ANSI/TIA-568.2-D, ISO/IEC 11801-1 (Ed. 2.2), IEC 61156-5, as well as EU RoHS2 and LVD directives. The minimum bend radius is 28.2 mm. The cable can be installed at temperatures from 0°C to 60°C and is engineered for continuous operation between -20°C and 75°C.
Key Features
- Cable Type: Category 6A unshielded twisted pair (UTP) cable for indoor installations.
- Conductor Construction: 23 AWG solid bare copper conductors (4 pairs).
- Fire Safety: Flame-retardant FRPVC jacket with CMR rating.
- Crosstalk Immunity: Integrated anti-crosstalk cross divider eliminating harmful pair-to-pair crosstalk.
- Standard Compliance: Meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 transmission standards, as well as the UL 1666 fire safety standard.

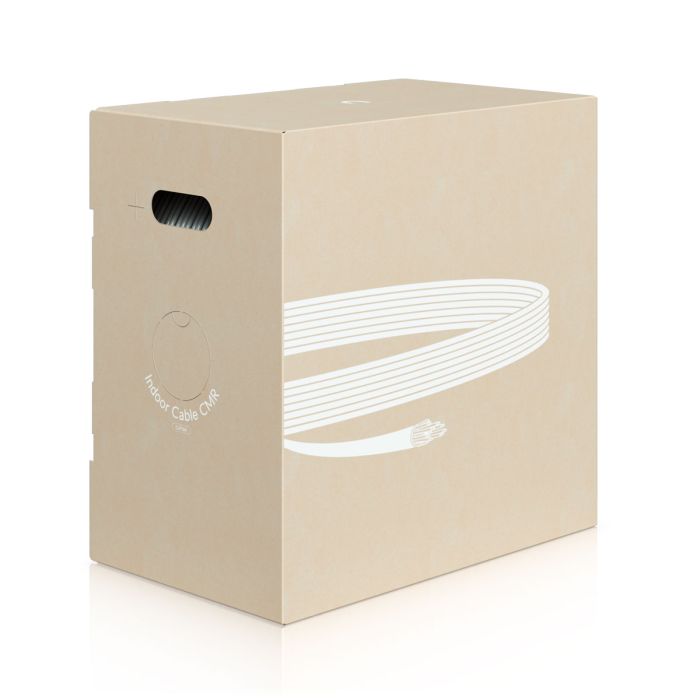

- Packaging Format: 305-meter (1,000 ft) length packaged in an easy-pull box (box weight 19.3 kg).
Technical Specifications
Cable Technical Specifications |
|
| Length | 305 m (1,000 ft) |
| Type | Category 6A |
| Flame Rating | CMR (Riser-rated) |
| Operating Environment | Indoor |
| Shielding Type | UTP (Unshielded Twisted Pair) |
| Conductor Type | Solid bare copper |
| Conductor Wire Gauge | 23 AWG |
| Bend Radius | Min. 28.2 mm (1.11") |
| Pair Twist | 4 twisted pairs with color code: Pair 1: White / Blue Pair 2: White-Orange / Orange Pair 3: White / Green Pair 4: White-Brown / Brown |
| Anti-Crosstalk Divider | Yes |
| Ripcord | Yes |
Standards and Certifications |
|
| Electrical Transmission | ANSI/TIA-568.2-D ISO/IEC 11801-1 (Edition 2.2) IEC 61156-5 (Edition 2.1) |
| Flame Test | UL 1666 (CMR) |
| Materials and Construction | UL 444 CSA 22.2 NO.214 EU Directive 2011/65/EU (RoHS2) EU Directive 2006/95/EC (LVD) |
Other |
|
| Jacket Color | White |
| Jacket Outer Diameter | 7.05 ± 0.2 mm |
| Jacket Material | Flame-retardant polyvinyl chloride (FRPVC) |
| Package Dimensions | 494 x 302 x 481 mm (19.4 x 11.9 x 18.9") |
| Package Weight | 19.3 kg (42.5 lbs) |
| Installation Temperature | 0 to 60° C (32 to 140° F) |
| Storage Temperature | -20 to 75° C (-4 to 167° F) |
| Ambient Operating Temperature | -20 to 75° C (-4 to 167° F) |
| Manufacturer SKU | UACC-Cable-C6A-CMR |
|---|---|
| Manufacturer | Ubiquiti |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
