UBIQUITI Reader Lite (UA-Reader Lite)
| Manufacturer SKU | UA-Reader Lite |
|---|---|
| EAN | 810010076816 |
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 50 |
A convenient door access scanner supporting NFC reader and handwave door unlocking.
Accessories and add-ons:
UBIQUITI UniFi Access Reader Lite (UA-Reader-Lite)
Product Description

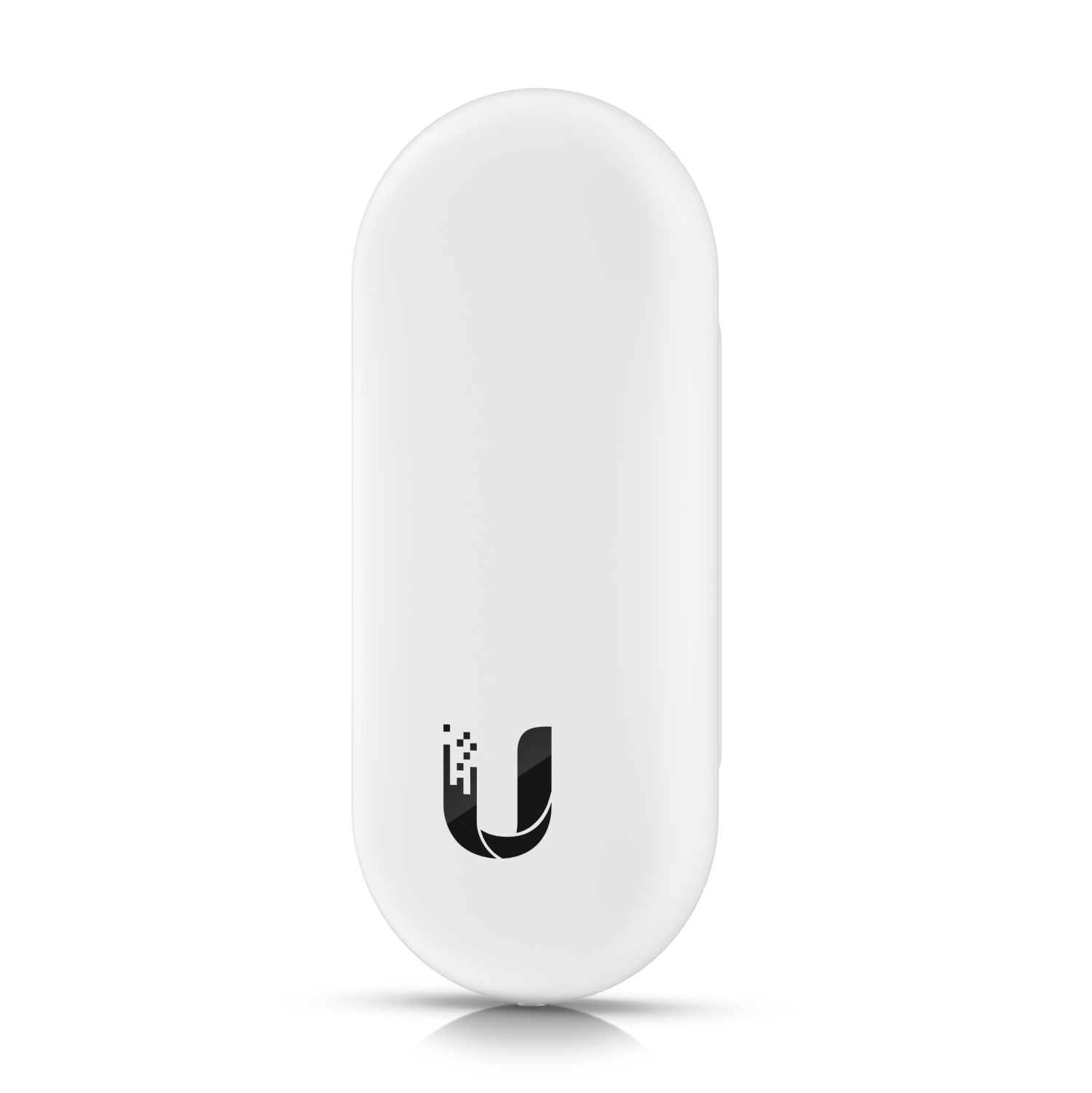

The UniFi Access Reader Lite is a compact NFC reader designed for use with the UniFi Access system. It enables secure, contactless authentication using NFC cards (13.56 MHz) or mobile credentials via the UniFi mobile app. Its minimalistic design and small footprint make it ideal for discreet installations.

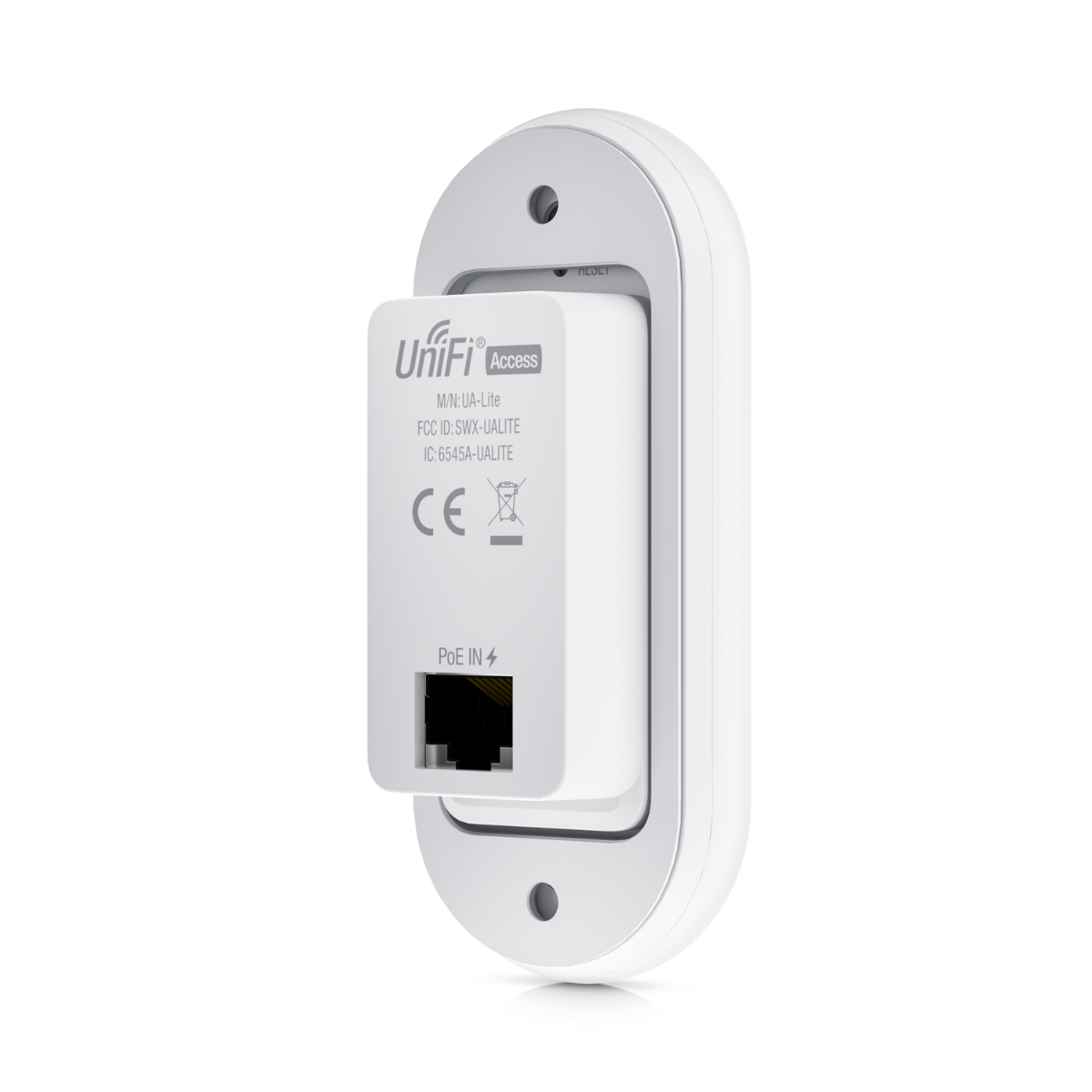

The UA-Reader-Lite features an RGB LED status indicator and a built-in chime for access feedback. It connects to the UniFi Access Hub via PoE and is weather-resistant, supporting both indoor and outdoor installations. The device is intended for surface mounting and comes with all required installation accessories.
Key Features
- Supports NFC cards (13.56 MHz) and mobile credentials
- Compact and discreet housing
- RGB LED indicator and integrated chime
- Powered via PoE (802.3af)
- Weather-resistant IP55-rated design
- Compatible with UniFi Access Hub and UniFi Controller
Technical Specifications
Technical Data
| SKU | UA-Reader-Lite |
| RFID Support | 13.56 MHz (NFC) |
| Authentication Methods | NFC cards, UniFi mobile credentials |
| Networking Interface | 10/100 Mbps Ethernet |
| Power Method | PoE (802.3af) |
| Power Consumption | Max. 2.5 W |
| Ingress Protection | IP55 |
| Operating Temperature | -10 to 40°C |
| Operating Humidity | 10% to 90% non-condensing |
| Dimensions | 94.6 x 40 x 25.5 mm |
| Weight | 60 g |
| Indicators | RGB LED, buzzer |
| Mounting | Surface mount |
| Compatibility | Requires UniFi Access Hub and Controller |
Applications and Compatibility
The UA-Reader-Lite is ideal for applications where space is limited and a low-profile access control reader is required. It is suitable for interior doors, reception desks, and minimalistic environments while maintaining full compatibility with UniFi Access infrastructure.
Summary
UBIQUITI UA-Reader-Lite delivers secure access control in a small and elegant form factor. With PoE power and full UniFi Access integration, it provides an efficient and simple solution for secure NFC-based authentication.
| Manufacturer SKU | UA-Reader Lite |
|---|---|
| EAN | 810010076816 |
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 50 |
| GPSR contact |
Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
