UBIQUITI Reader Flex (UA-G3-Flex-B)
Manufacturer SKU | UA-G3-Flex-B |
---|---|
EAN | 810084690749 |
Manufacturer | Ubiquiti |

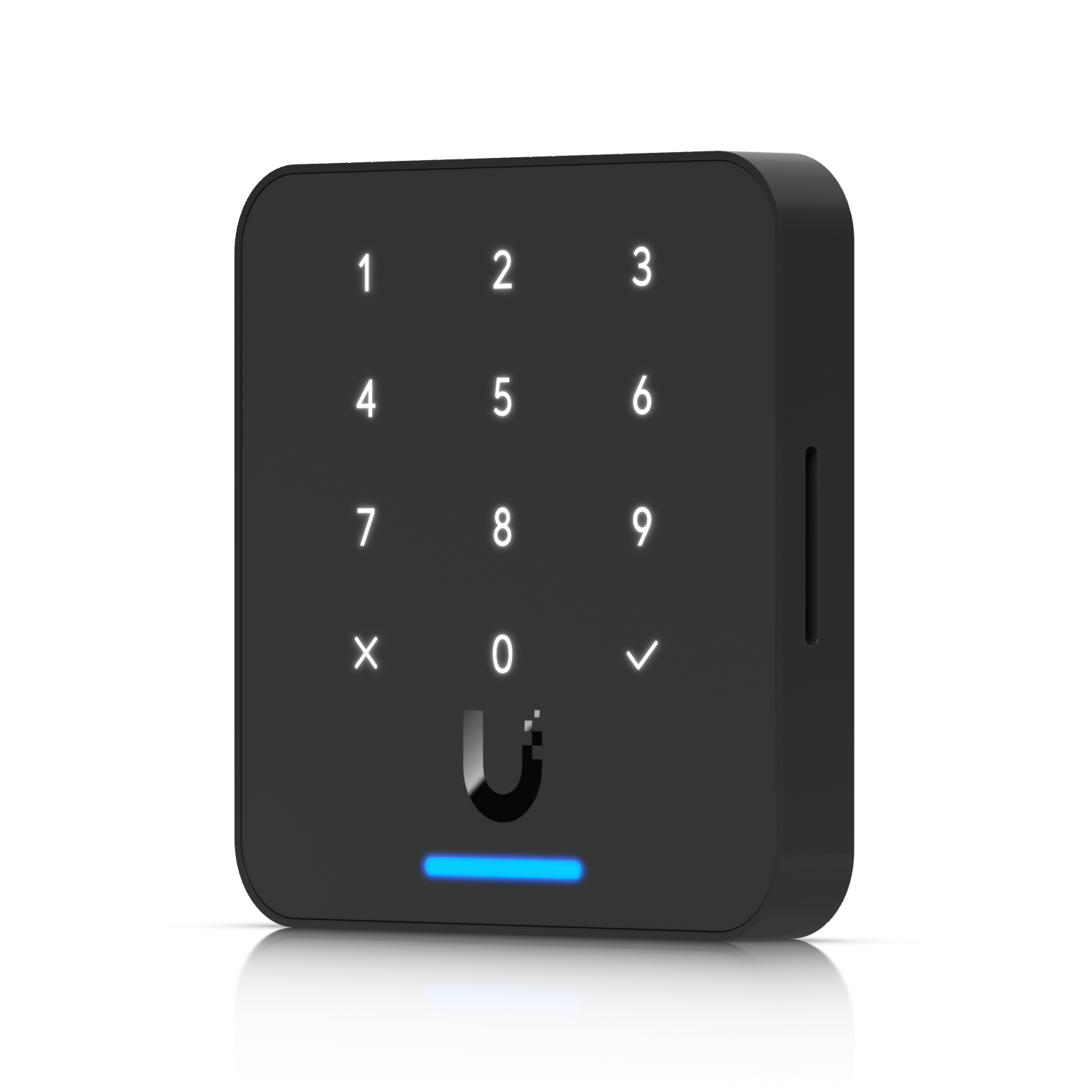

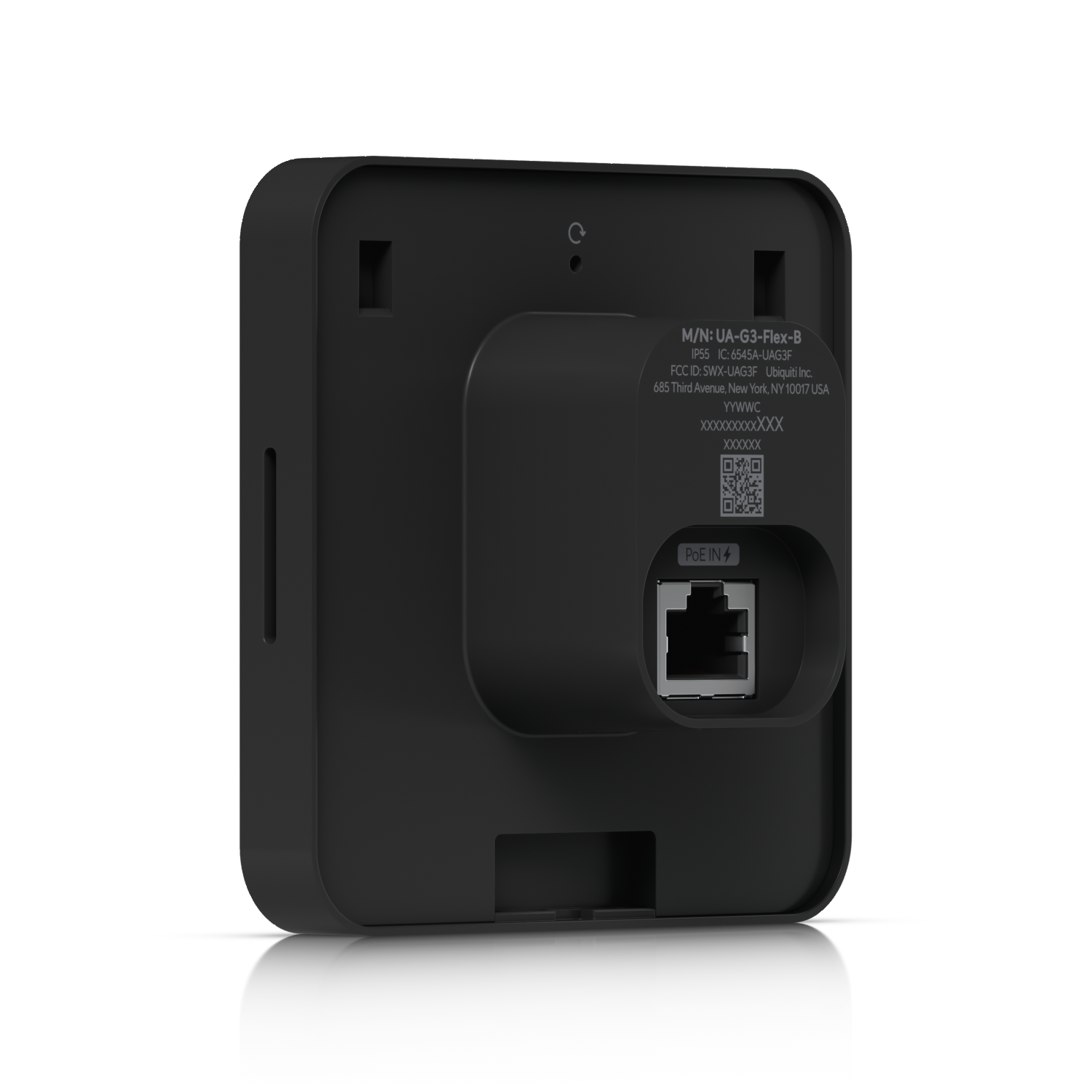

UBIQUITI UniFi Access Reader Flex (UA-G3-Flex-B)
The UniFi Access Reader Flex is a compact and versatile RFID reader designed for use with the UniFi Access platform. The UA-G3-Flex-B features a sleek, narrow profile and flexible mounting options, allowing it to be installed on walls, door frames, or posts. It supports NFC cards and mobile credentials for fast, contactless user authentication.
The reader includes RGB status LEDs and a built-in chime to provide clear visual and audio feedback. It communicates with the UniFi Access system using PoE and must be paired with a UniFi Access Hub. Its IP55-rated housing ensures durability for both indoor and outdoor installations.
Key Features
- NFC card (13.56 MHz) and mobile credential support
- Integrated chime and multicolor LED status indicator
- PoE-powered (802.3af) for simplified installation
- Multiple mounting options including wall, pole, and door frame
- Seamless integration with UniFi Access Hub and UniFi Access Controller
- Weather-resistant housing rated IP55




Technical Specifications
Technical Data
SKU | UA-G3-Flex-B |
RFID Support | 13.56 MHz (NFC) |
Authentication Methods | NFC cards, UniFi mobile app credentials |
Networking Interface | 10/100 Mbps Ethernet |
Power Method | PoE (802.3af) |
Power Consumption | Max. 4 W |
Ingress Protection | IP55 |
Operating Temperature | -10 to 40°C |
Operating Humidity | 10% to 90% non-condensing |
Dimensions | 118.2 x 30.1 x 25.5 mm |
Weight | 65 g |
Indicators | RGB LED, buzzer |
Mounting | Surface, corner, or pole mount |
Compatibility | Requires UniFi Access Hub and UniFi Access Controller |
Applications and Compatibility
The UA-G3-Flex-B is a smart access control component ideal for professional deployments requiring compact form factor and contactless authentication. Its support for mobile credentials and PoE simplifies setup, while full integration with the UniFi Access ecosystem ensures centralized management and secure access policies.
Summary
UBIQUITI UA-G3-Flex-B is a versatile and durable reader designed for seamless operation with UniFi Access systems. It supports NFC cards and mobile credentials, features flexible mounting options, and includes weatherproof housing for indoor and outdoor use.
Manufacturer SKU | UA-G3-Flex-B |
---|---|
EAN | 810084690749 |
Manufacturer | Ubiquiti |
GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
