Ubiquiti U7 Pro XG Wall - U7-Pro-XG-Wall
€302.89
€246.25
In stock
SKU
UBIQUITI-U7-PRO-XG-WALL
| Manufacturer SKU | U7-Pro-XG-Wall |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 12 |
Ubiquiti U7 Pro XG Wall (U7-Pro-XG-Wall) WiFi 7 in-wall access point with tri-band 2.4/5/6 GHz, up to 5.8 Gb/s, 10 GbE uplink, PoE+ power and advanced UniFi features for dense, high-performance wireless networks.
Accessories and add-ons:
Ubiquiti U7 Pro XG Wall (U7-Pro-XG-Wall)
The U7 Pro XG Wall is a wall-mounted next-generation WiFi 7 (802.11be) access point designed for indoor deployments. It supports simultaneous operation in the 2.4 GHz, 5 GHz, and 6 GHz bands (tri-band) with a total of 6 MU-MIMO spatial streams. This enables a maximum theoretical PHY throughput of up to 5.8 Gbps in the 6 GHz band using 320 MHz channel bandwidth. The device features a single 10 Gigabit Ethernet (RJ45) uplink port and is powered via PoE+ (802.3at), with a maximum power consumption of 22 W.

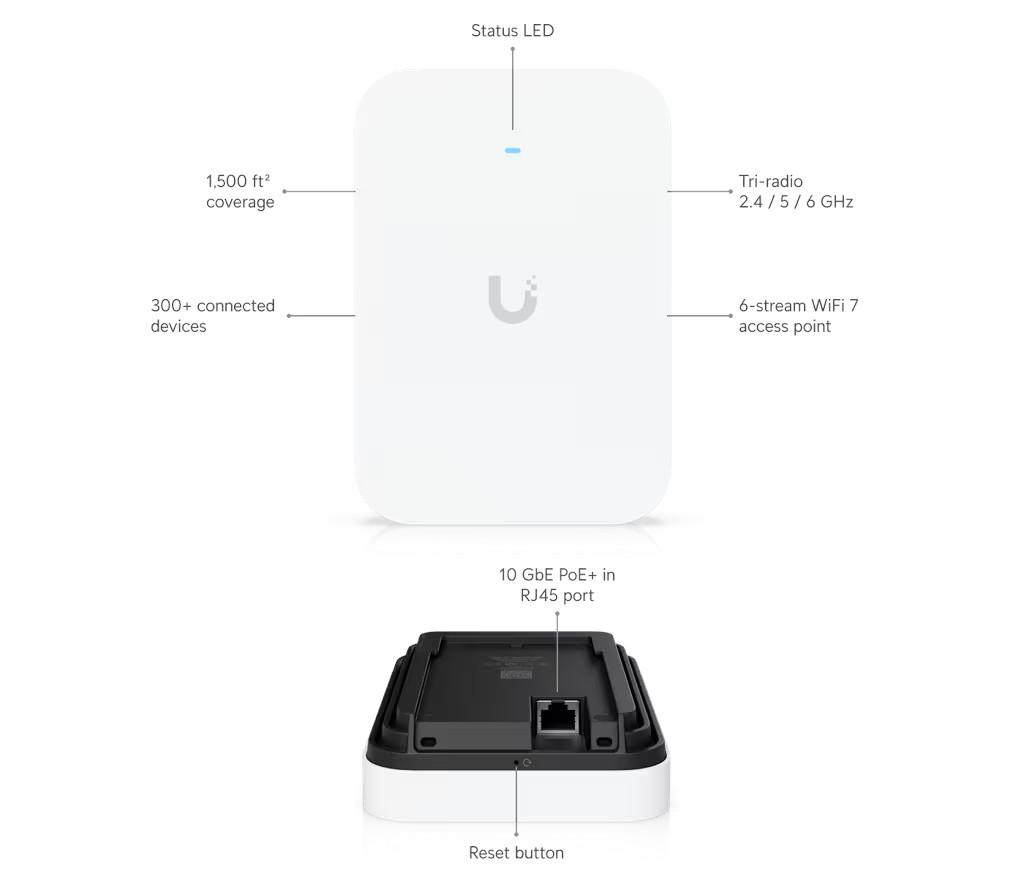

Main Features
- Support for WiFi 7 (802.11be) standard – tri-band operation (2.4 GHz, 5 GHz, and 6 GHz)
- Total of 6 MU-MIMO spatial streams (2×2 per band); PHY rates up to 5.8 Gbps (6 GHz)
- 1× 10 GbE Ethernet (RJ45) port used as uplink
- Powered via PoE+ (802.3at), maximum power consumption 22 W
- Coverage area of approximately 140 m²; support for 300+ concurrent clients
- Support for wireless meshing, band steering, and fast roaming (802.11k/v/r); Hotspot 2.0 (Passpoint), guest networking with portal options (voucher, PPSK, RADIUS), and client isolation
Technical Specifications

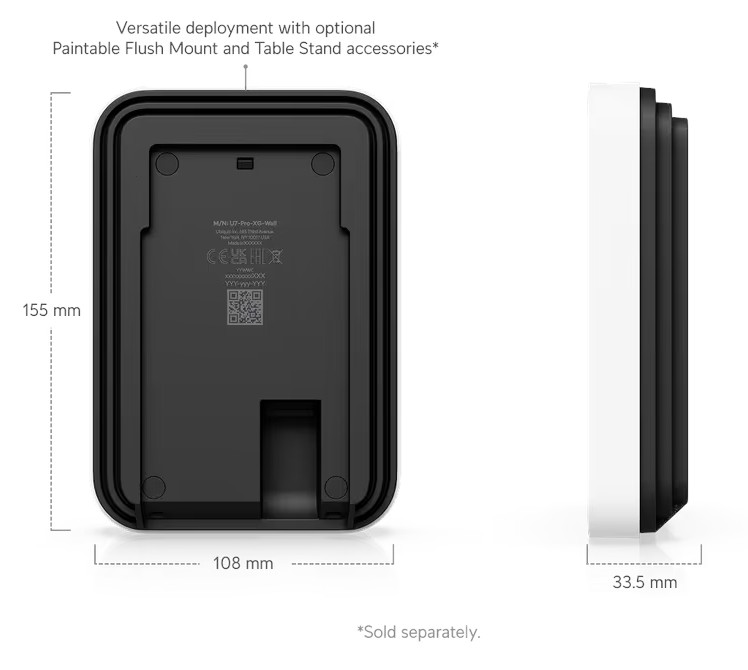

| Dimensions | 155 x 108 x 33.5 mm (6.1 x 4.3 x 1.3") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Maximum Client Count | 300+ |
| Uplink | 10 GbE |
| Mounting | Wall |
| Power Method | PoE+ |
Performance
| MIMO 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate 6 GHz | 5.8 Gbps (BW320) |
| Max. Data Rate 5 GHz | 4.3 Gbps (BW240) |
| Max. Data Rate 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain 6 GHz | 6 dBi |
| Antenna Gain 5 GHz | 6 dBi |
| Antenna Gain 2.4 GHz | 4 dBi |
| Max. TX Power 6 GHz | 24 dBm |
| Max. TX Power 5 GHz | 26 dBm |
| Max. TX Power 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per radio |
Supported Data Rates
| 802.11be (WiFi 7) |
6 GHz: 7.3 Mbps – 5.8 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps – 4.3 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/240) |
| 802.11ax (WiFi 6) | 7.3 Mbps – 2.4 Gbps (MCS0–MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps – 1.7 Gbps (MCS0–MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps – 300 Mbps (MCS0–MCS15, HT 20/40) |
Features
| Wireless meshing | Yes |
| Band steering | Yes |
| 802.11v BSS transition management | Yes |
| 802.11r fast roaming | Yes |
| 802.11k radio resource management (RRM) | Yes |
| Advanced radio management | Yes |
| Passpoint (Hotspot 2.0) | Yes |
| Guest network isolation | Yes |
| Private Pre-Shared Key (PPSK) | Yes |
| WiFi speed limiting | Yes |
| Client device isolation | Yes |
| WiFi schedules | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Dynamic RADIUS-assigned VLAN | Yes |
Hardware
| Maximum power consumption | 22 W |
| Supported voltage range | 42.5–57 V DC |
| Networking interface | (1) 10 GbE RJ45 port |
| Weight | 505 g (1.1 lb) |
| Enclosure material | Polycarbonate, aluminum alloy |
| Mount material | Aluminum alloy |
| LEDs | System (white/blue) |
| Channel bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 MHz |
| NDAA compliant | Yes |
| Certifications | CE, FCC, IC |
| Operating temperature | -30 to 40 °C (-22 to 104 °F) |
| Operating humidity | 5–95% noncondensing |
Software
| Application requirements | UniFi Network, version 10.0 or later |
| Mobile app | iOS 10.29.3 or later, Android 10.31.1 or later |
| Manufacturer SKU | U7-Pro-XG-Wall |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 12 |
| GPSR contact |
Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
