Ubiquiti U7 Mesh - Outdoor WiFi 7 Access Point (U7-Mesh)
The Ubiquiti U7 Mesh is a compact WiFi 7 (802.11be) AP designed for indoor and outdoor use (IPX6 rated). It offers dual-band data transmission with throughputs of up to 4.3 Gbps (5 GHz) and 688 Mbps (2.4 GHz). It is equipped with a 2.5 GbE RJ45 port with PoE.
Ubiquiti U7 Mesh – Indoor/Outdoor WiFi 7 Access Point (U7-Mesh)
Ubiquiti U7 Mesh (U7-Mesh) is a compact access point designed for both indoor and outdoor installations. The device operates on the WiFi 7 (802.11be) standard, offering 4 spatial streams. It supports over 200 client devices simultaneously and covers an area of up to 140 m² (1,500 ft²). The access point supports dual-band data transmission: delivering throughput of up to 4.3 Gbps on the 5 GHz band (2x2 MU-MIMO) and up to 688 Mbps on the 2.4 GHz band (2x2 MU-MIMO). Network connectivity and power (via standard PoE) are handled by a 2.5 GbE RJ45 port. Maximum power consumption is 13 W, and a compatible PoE adapter is included in the package.
The device is equipped with a hybrid antenna system comprising an omnidirectional antenna (with 6 dBi gain for 5 GHz and 3 dBi for 2.4 GHz) and a 5 GHz directional antenna with 10 dBi gain. This configuration enables simultaneous coverage for long-distance users as well as clients located close to the device. The U7 Mesh is particularly recommended for open-air deployments and high-demand Mesh networks. In Mesh Child mode, the built-in LED ring (R/G/B/W) changes color to assist with device positioning and finding the strongest signal – green indicates optimal connection parameters. The software (requires UniFi Network controller version 10.1.85 or later) provides features such as fast roaming (802.11r), client isolation, Passpoint (Hotspot 2.0), Private Pre-Shared Keys (PPSK), and RADIUS over TLS (RadSec).

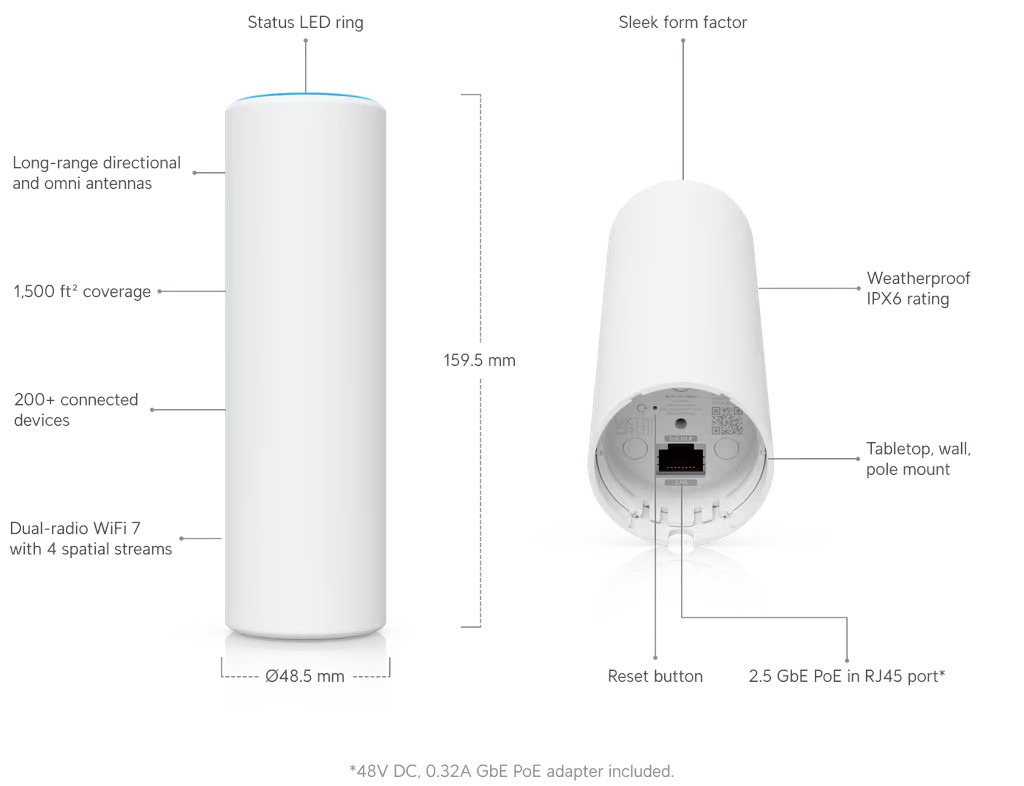

The enclosure, measuring ⌀48.5 x 159.5 mm and weighing 313 g, is made of UV-resistant polycarbonate. When using the included outdoor mount and rubber seal, the unit meets IPX6 ingress protection standards (vertical installation with the logo facing upward is required). For indoor installations, a dedicated desktop stand is used. The device operates in temperatures ranging from -30°C to 60°C. Mounting accessories are included for installation on a wall, pole, or flat surface.
Key Features
-
Network Standard: WiFi 7 (802.11be), 4 spatial streams, throughput up to 4.3 Gbps (5 GHz) and 688 Mbps (2.4 GHz).
-
Capacity and Coverage: Supports over 200 clients across an area of up to 140 m².
-
Antenna System: Combination of omnidirectional antennas (6 dBi for 5 GHz, 3 dBi for 2.4 GHz) and a 5 GHz directional antenna (10 dBi).
-
Network Interface and Power: 2.5 GbE RJ45 port, PoE power supply (adapter included), maximum power consumption of 13 W.
-
Environmental Durability: IPX6 ingress protection rating with outdoor mount, operating temperature range from -30°C to 60°C.
Technical Specifications
Technical Parameters and Connectivity |
|
| Wi-Fi Standard | Wi-Fi 7 (802.11a/b/g/n/ac/ax/be) |
| Spatial Streams | 4 |
| Coverage Area | 140 m² (1,500 ft²) |
| Maximum Connected Clients | 200+ |
| Network Interface (Uplink) | (1) 2.5 GbE RJ45 Port |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
| Max. Power Consumption | 13W |
| Power Method | PoE |
| PoE Adapter Included | Yes |
| Supported Voltage Range | 42.5–57V DC |
| Management | Ethernet |
| LED Indicators | System: R/G/B/W (Red / Green / Blue / White) |
| Wireless & Security Features | Wireless Meshing, Band Steering, 802.11v BSS Transition Management, 802.11r Fast Roaming, 802.11k RRM, Advanced Radio Management, Passpoint (Hotspot 2.0), Hotspot Portal (custom landing page, vouchers, payments, external portal server, password), Guest Network Isolation, Private Pre-Shared Key (PPSK), Wi-Fi Speed Limiting, Client Device Isolation, Wi-Fi Scheduling, RADIUS over TLS (RadSec), Dynamic RADIUS-assigned VLAN |
| App Requirements | UniFi Network: Version 10.1.85 or later UniFi iOS™ App: Version 10.32.1 or later UniFi Android™ App: Version 10.35.1 or later |
Radio & Wi-Fi Specifications |
|
| MIMO | 5 GHz: 2 x 2 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Throughput | 5 GHz: 4.3 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain | 5 GHz: Omnidirectional: 6 dBi, Directional: 10 dBi 2.4 GHz: 3 dBi |
| Max. TX Power | 5 GHz: 24 dBm 2.4 GHz: 23 dBm |
| Max. BSSIDs | 8 per radio |
| Supported Data Rates | 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
Other |
|
| Dimensions | ⌀48.5 x 159.5 mm (⌀1.9 x 6.3") |
| Weight | 313 g (11 oz) |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate |
| Mounting | Wall mount, pole mount, desktop stand (mounts included) |
| Ingress Protection | IPX6 (when installed with outdoor mount) |
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 to 95% (non-condensing) |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
Ubiquiti UniFi U7 Mesh – Frequently Asked Questions (FAQ)
Yes. The U7 Mesh access point supports both indoor and outdoor installation using the interchangeable bottom covers included in the box:
- Indoor installations: Require using the desktop stand designed exclusively for indoor use.
- Outdoor installations: Require applying the rubber gasket and the included wall mount, providing an IPX6 rating. The device must be mounted vertically with the logo facing up.
In Mesh Child mode, the LED ring changes color to assist with optimal placement and finding the strongest mesh link (refer to the included installation card for details). Green indicates the strongest and most stable connection.
The U7 Mesh features both a directional 5 GHz antenna and an omnidirectional antenna, allowing it to efficiently serve long-distance clients and nearby devices simultaneously.
This makes it an optimal solution for providing outdoor coverage and building high-performance wireless mesh networks.
| Manufacturer SKU | U7-Mesh |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 8 |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
