Ubiquiti - Enterprise Campus 24 PoE (ECS-24-PoE)

  | Manufacturer SKU | ECS-24-PoE |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 1 |
24-port L3 switch with 2.5G/10G ports, 25G SFP28 uplinks, PoE+++ support, hot-swappable power, and Etherlighting™ for enterprise networks.
Accessories and add-ons:
Ubiquiti - Enterprise Campus 24 PoE (ECS-24-PoE)

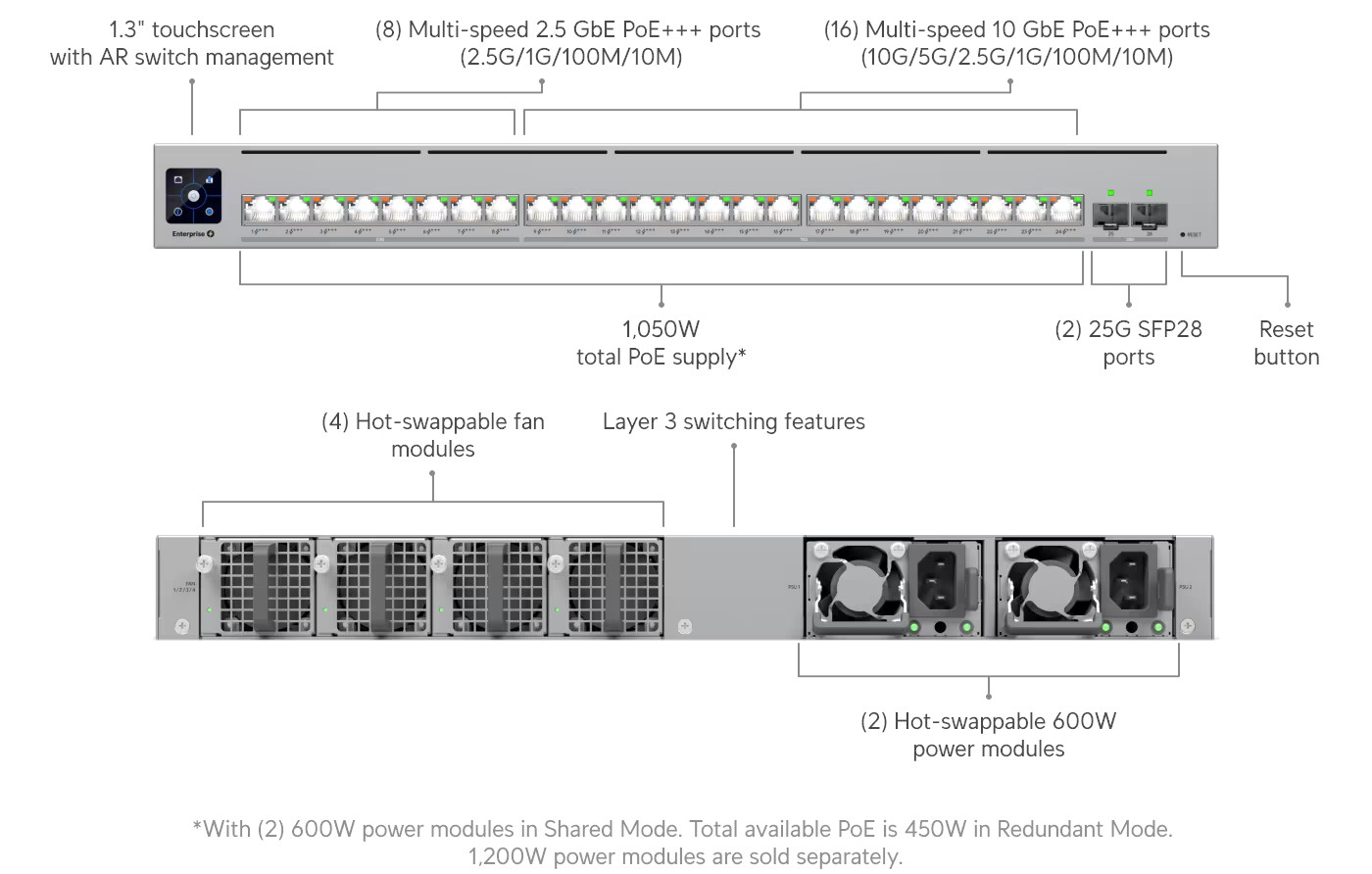

24-port L3 switch with 8 × 2.5 GbE and 16 × 10 GbE ports, PoE+++ support, and two 25G SFP28 uplinks. Equipped with two hot-swappable 600 W AC power modules, four replaceable cooling fans, and a 1.3-inch touchscreen for local monitoring.
Product Description

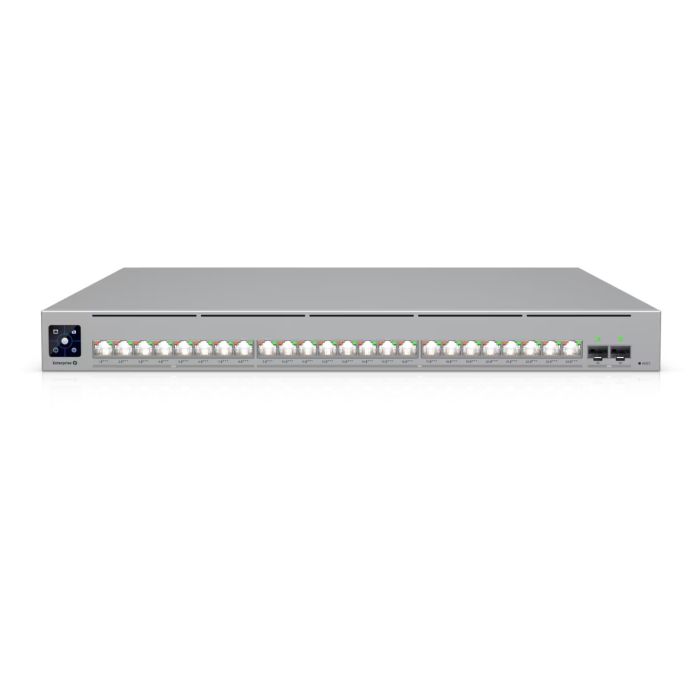

Enterprise Campus 24 PoE is a managed L3 network switch designed for 19" rack mounting (1U). It provides 24 RJ45 ports with PoE+++ capability (8 × 2.5 GbE and 16 × 10 GbE), as well as 2 SFP28 25 GbE uplink ports. The switch delivers a switching capacity of 460 Gbps and a forwarding rate of up to 342 Mpps. Each PoE port supports up to 90 W power output.
The device includes two hot-swappable 600 W AC power modules operating in Shared or Redundant mode, and four replaceable cooling fans. The PoE power budget is up to 1050 W in Shared mode and 450 W in Redundant mode. The switch supports Etherlighting™, a visual indicator system for PoE consumption.
It also features a 1.3" touchscreen display for local diagnostics and monitoring. The full-depth enclosure is made of SGCC steel. Operating temperature ranges from -5 °C to 40 °C, and humidity from 10% to 90% (non-condensing).
Key Features
- 24-port L3 switch: 8 × 2.5 GbE and 16 × 10 GbE RJ45 ports with PoE+++.
- 2 SFP28 uplink ports: supports 1G/10G/25G optical connections.
- PoE+++ support: up to 90 W power per RJ45 port.
- Hot-swappable power modules: 2 × 600 W AC with Shared or Redundant operation modes.
- Etherlighting™: visual indication of PoE power usage per port.
- LCM display: 1.3" touchscreen for local management and diagnostics.




Technical Specifications
Mechanical

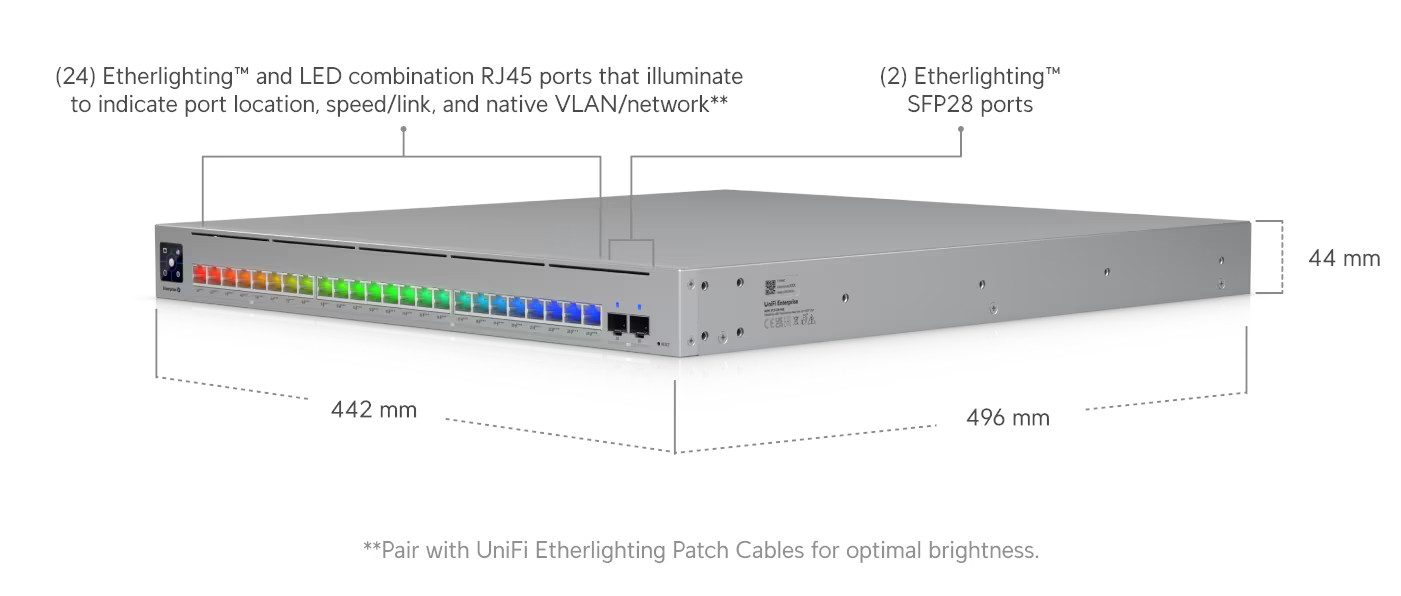

| Dimensions | 442.4 × 43.7 × 496 mm |
| Weight (without rack mounts) | 9.46 kg |
| Weight (with rack mounts) | 9.56 kg |
| Enclosure Material | SGCC steel |
| Mounting | Standard 19" rack, 1U full-depth |
Network Interfaces
| Ethernet Ports | 8 × 2.5G RJ45 (PoE+++), 16 × 10G RJ45 (PoE+++) |
| SFP Ports | 2 × 25G SFP28 |
| VLANs Supported | Up to 1,000 |
| MAC Table Size | 128,000 entries |
| ARP Table Size | 128,000 entries |
| IPv4 Routes | 256,000 |
Performance
| Switching Capacity | 460 Gbps |
| Non-blocking Throughput | 230 Gbps |
| Forwarding Rate | 342 Mpps |
Power
| Power Input | 2 × 100–240 V AC, 50/60 Hz |
| Power Supply Modules | 2 × AC/DC 600 W (hot-swappable) |
| Power Consumption (without PoE) | 1.50 W |
| Power Consumption (with full PoE load) | Up to 2400 W |
| PoE Budget (Shared Mode) | 1050 W |
| PoE Budget (Redundant Mode) | 450 W |
| Max Power per Port | 90 W |
| Etherlighting™ | Supported |
Environmental
| Operating Temperature | -5 °C to 40 °C |
| Operating Humidity | 10% to 90% (non-condensing) |
| ESD/EMP Protection | Air ±30 kV, Contact ±30 kV |
Management and Compliance
| Display | 1.3" touchscreen (LCM) |
| Software Requirements | UniFi Network version 9.0.114 or newer |
| Certifications | CE, FCC, IC, NDAA compliant |
Summary
Enterprise Campus 24 PoE is a high-capacity L3 switch with 2.5G/10G RJ45 ports, 25G SFP28 uplinks, PoE+++ support, redundant power, and integrated Etherlighting™. Suitable for campus networks and environments requiring high power, bandwidth, and operational reliability.
