TP-Link VIGI C540
€101.25 €82.32
In stock
SKU
TPLINK-VIGI-C540
| Manufacturer SKU | VIGI C540 V2 |
|---|---|
| EAN | 4897098683781 |
| Manufacturer | TP-Link |

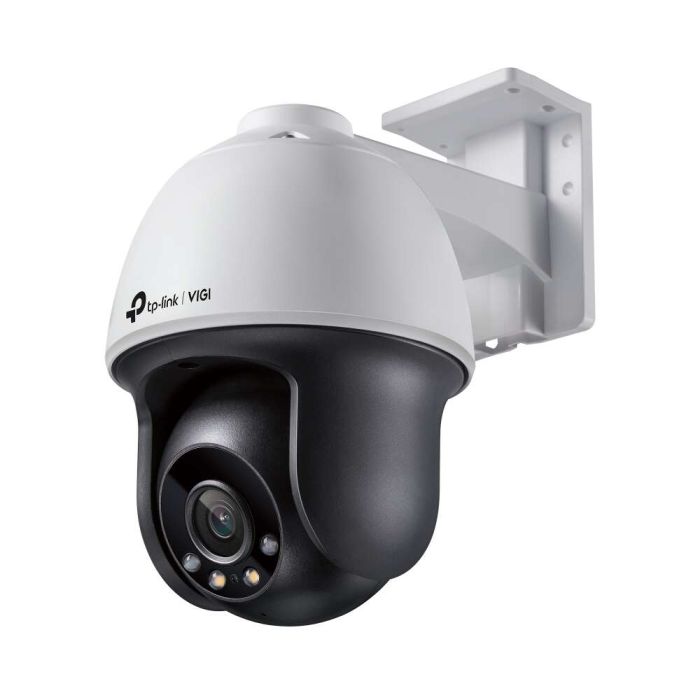

VIGI C540 - VIGI 4MP Outdoor Full-Color Pan Tilt Network Camera
TP-Link VIGI C540 - VIGI 4MP Outdoor Full-Color Pan Tilt Network Camera
TP-Link VIGI C540 is an IP camera with a resolution of 4 Mpix (2560x1440px). It was designed to work in the VIGI system, with an appropriate recorder. It supports night mode with full colors, uses modern H.265+ compression, which saves space on the hard drive and reduces bitrate. VIGI C540 supports useful, intelligent functions such as motion detection, the ability to design key areas, detection of crossing a designated line and sending a warning when the lens is covered. The most important feature of the C540 is PTZ - the ability to rotate. You can configure patrol paths and use the automatic tracking function. An additional advantage is the microSD slot, which allows you to save files locally, without the need to use a recorder.
VIGI C540 uses a fixed focal length 4 mm lens, which provides a viewing angle of 79° horizontally and 43° vertically, and the diagonal is 93°. VIGI C540 has a dome housing and has an IP66 protection level, it can be used outdoors. You can power the device using a 12 V DC or by PoE in the 802.3af/at standard.
Technical specification:
| CAMERA | |
|---|---|
| Image Sensor | 1/3” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
|---|---|
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | 4mm: Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93° |
| Lens Mount | M12 |
| DORI Distance | 4 mm: Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) |
| PTZ | |
|---|---|
| Pan/tilt Range | Pan: 0° to 350°, Tilt: 0° to 120° |
| Pan/tilt Speed | Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s Tilt Speed: Configurable from 8° to 44°/s, Preset Speed 44°/s |
| Manual Control Speed | Configurable from 8° to 35°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Power-off Memory | Yes; Auto restore to previous PT and lens status after power failure |
| Park Action | Yes; Preset; Patrol Scan |
| 3D Positioning | Yes |
| Angle Adjustment (Manual) | |
|---|---|
| Range | Pan: 0° to 348° Tilt: 0° to 120° |
| ILLUMINATOR | |
|---|---|
| IR LED | Quantity: 2 Range: 30m Wavelength: 850nm |
| White LED | Quantity: 2 Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
|---|---|
| Max. Resolution | 2560 X 1440 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image | |
|---|---|
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
|---|---|
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
|---|---|
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT | |
|---|---|
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| INTERFACES | |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| GENERAL | |
|---|---|
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Material | Plastic |
| Power Supply | 12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16 W |
| Protection | IP66 |
| Product Dimensions (L x W x H) | 120 × 172 × 198 mm |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
| Manufacturer SKU | VIGI C540 V2 |
|---|---|
| EAN | 4897098683781 |
| Manufacturer | TP-Link |
