TP-Link Archer MR150
| Manufacturer SKU | TL- MR150 |
|---|---|
| Manufacturer | TP-Link |

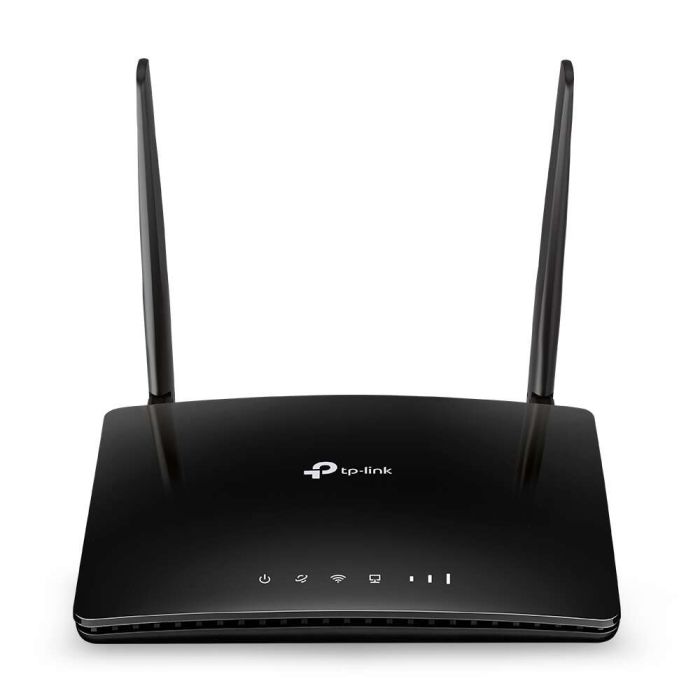

TP-Link TL-MR150 300Mbps Wireless N 4G LTE Router
TP-Link TL-MR150 300 Mbps Wireless N 4G LTE Router
TP-Link MR150 is a wireless router compatible with the 4G LTE network. It has one SIM card slot, after inserting the card it automatically establishes a connection, without the need for additional configuration. The maximum throughput of the 4G LTE network is 150 Mbps when downloading data. The MR150 is equipped with 4 fast Ethernet ports, one of which can work as a WAN port. This allows you to use the device as a standard router, not just an LTE modem. The offered product has the ability to transmit a WiFi wireless network in the 2.4 GHz band, in accordance with IEEE 802.11 b/g/n standards. The maximum theoretical throughput is 300 Mbps.
Main features
State-of-the-art 4G network - share Internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
Plug in your SIM card and play - no configuration required, SIM card compatibility in over 100 countries has been confirmed by many years of field testing
Two detachable advanced LTE antennas - enjoy a stable and efficient connection to any device thanks to two external antennas
Wi-Fi Router Mode - Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection
Technical specification:
| Ports |
3× 10/100 Mbps LAN ports, 1× 10/100 Mbps LAN/WAN Port 1× Nano SIM Card Slot |
| Button |
WPS/RESET Button, WiFi ON/OFF Button |
| External Power Supply(EU) | 9V/0.85A |
| Dimensions ( W x D x H ) | 7.95 × 5.55 × 1.32 in. (202 × 141 × 33.6 mm) |
| Antenna Type | 2× Detachable External 4G LTE Antennas |
| Wireless Standards | IEEE 802.11b, 802.11g, 802.11n |
| Frequency | 2.4 GHz |
| Signal Rate | 300 Mbps at 2.4 GHz |
| Reception Sensitivity | 11g 54M: -74 dBm 11n HT20: -71 dBm 11n HT40: -67 dBm |
| Transmit Power | 20 dBm (2.4 GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover | yes |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Network Type | 4G: FDD-LTE Cat4 (800/900/1800/2100/2600 MHz), TDD-LTE (2300/2500/2600 MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS (900/2100 MHz) |
| Quality of Service | WMM, QoS |
| Operating Modes | 3G/4G Router, Wireless Router |
| Management | Access Control, Local Management, Remote Management |
| WAN Connection Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| VPN | PPTP VPN, IPSec VPN , OpenVPN |
| Access Control | Parental Controls, Local Management Control, Host List, Access Control |
| Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | 2.4 GHz Guest Network |
OTHERS
| Certification | CE, RoHS |
| Package Contents | 300Mbps Wireless N 4G LTE Router TL-MR150 Power Adapter 1.5m RJ45 Ethernet Cable Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browser or higher, or other Java-enabled browsers Nano SIM Card |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Manufacturer SKU | TL- MR150 |
|---|---|
| Manufacturer | TP-Link |
