TP-Link TL-MR100
| Manufacturer SKU | TL-MR100 |
|---|---|
| EAN | 6935364088804 |
| Manufacturer | TP-Link |

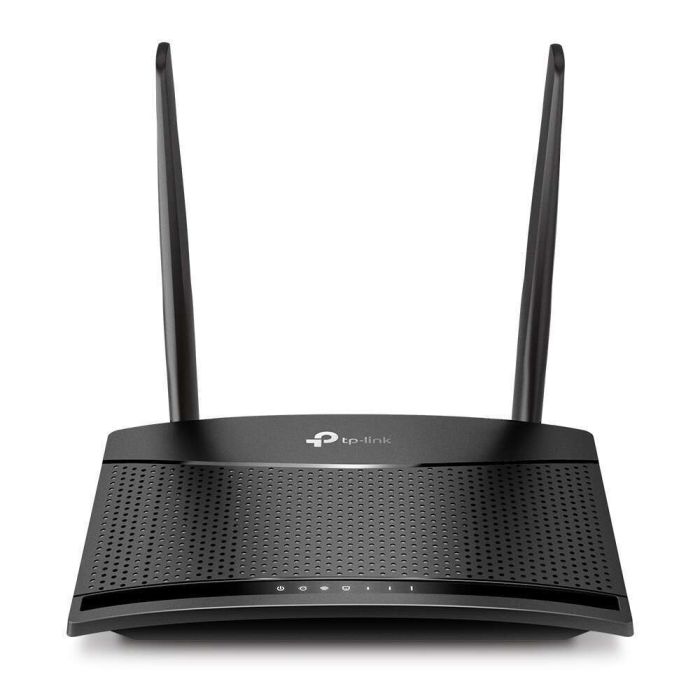

TP-Link TL-MR100 Wireless 4G LTE Router
TP-Link TL-MR100 Wireless 4G LTE router operating in the N standard, 300 Mb/s.
Only a SIM card is needed! - Integrated 4G LTE modem and SIM card slot, allows you to insert the card and turn on the MR100. The Wi-Fi connection on the 4G LTE network is fast and stable.
The TL-MR100 allows you to share your 4G LTE Wi-Fi network with up to 32 devices, including tablets, laptops and smartphones at the same time. The device is compatible with the FDD-LTE and TDD-LTE standards, so the choice of Internet service provider is almost unlimited.
Advanced software functions of MR100 will ensure the security and effective operation on the network.
Parental control function - sets Internet usage limits, blocks inappropriate sites, controls visited sites or suspends the network.
Guest Network - A separate guest Wi-Fi network ensures the security of main network resources.
Technical Specification:
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 10/100Mbps LAN Port 1 10/100Mbps LAN/WAN Port 1 Nano SIM Card Slot 2 External SMA-F Antenna Interface |
| Button | WPS/Reset Button |
| External Power Supply(EU) | 9V/0.85A |
| Dimensions ( W x D x H ) | 6.06×4.49×1.42 in ( 154×114×36 mm) |
| Antenna | 2 Detachable External 4G LTE Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11b/g/n |
| Frequency | 2.4 GHz |
| Signal Rate | 300 Mbps |
| Reception Sensitivity | 11g 54M: -74 dBm 11n HT20: -71 dBm 11n HT40: -68 dBm |
| Transmit Power | < 20 dBm (2.4 GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover | Yes |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Network Type | 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| SOFTWARE FEATURES | |
|---|---|
| Security | IPv4 SPI Firewall, IP and MAC Address Binding |
| Operating Modes | 3G/4G Router, Wireless Router |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management | Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| Protocols | IPv4, IPv6 |
| Guest Network | 2.4 GHz Guest Network |
| Administration | Upgrade Firmware, Factory Default, System Log, Diagnostic Tools |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Contents | 300 Mbps Wireless N 4G LTE TL-MR100 1.5m Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Nano SIM Card |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Manufacturer SKU | TL-MR100 |
|---|---|
| EAN | 6935364088804 |
| Manufacturer | TP-Link |
| GPSR contact | TP-Link Polska Sp. z o.o. ul. Ożarowska 40/42, Duchnice 05-850, Poland support.pl@tp-link.com |
