TP-Link EAP615-Wall
| Manufacturer SKU | EAP615-WALL |
|---|---|
| EAN | 4897098683606 |
| Manufacturer | TP-Link |
EAP615-Wall WiFi 6 Access Point AX1800 Wall mounted, PoE powered

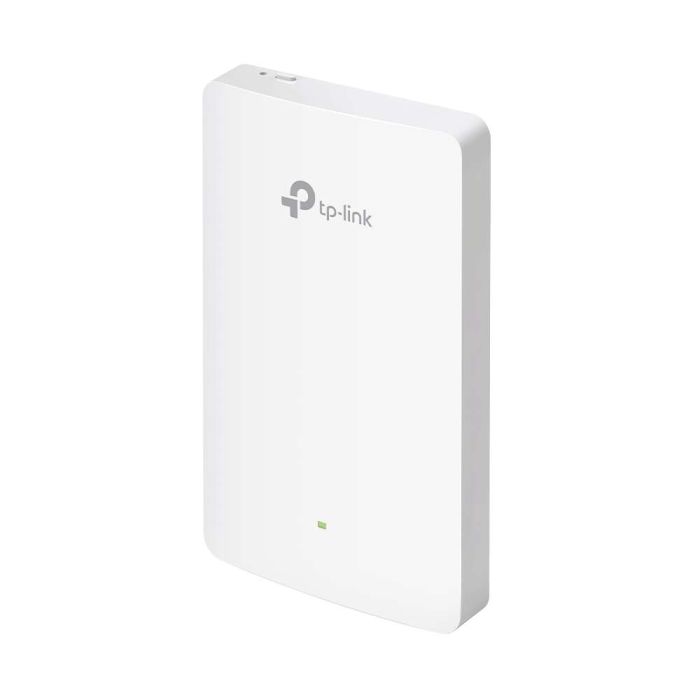

TP-Link EAP615-Wall AX1800 Wall Plate WiFi 6 Access Point
TP-Link EAP615-WALL is an access point operating at 2.4 and 5 GHz frequencies, in accordance with Wi-Fi 6 standards - IEEE 802.11 b/g/n/ax (2.4 GHz) and IEEE 802.11 a/n/ac /ax (5 GHz). The maximum theoretical throughput is 1800 Mb/s - 1201 Mb/s in 5 GHz and 574 Mb/s in 2.4 GHz. EAP615-Wall is suitable for "in-wall" mounting - it can be mounted on a standard, flush-mounted electrical box. It is equipped with 4 gigabit Ethernet ports (10/100/1000 Mb/s), including 1 WAN port and 3 LAN ports located on the back of the housing. EAP615-WALL need to be powered via PoE in the IEEE 802.3af/at standard. The EAP615-Wall has a PoE output (passthrough) on one of the ports, the maximum output power is 13 W. From passive PoE output can also powered another device, e.g. a VoIP phone, via EAP615-WALL.
The EAP615-Wall works under the control of the Omada system and can operate in a large network composed of many access points. Management is centralized, the software provides access from the program, physical controller or cloud.
Technical Specification:
| HARDWARE FEATURES | |
|---|---|
| Interface | • Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/at PoE |
| Power Consumption | • EU: 10W (802.3at PoE, PoE Out off) • US: 11.5W (802.3at PoE, PoE Out off) |
| Dimensions ( W x D x H ) | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| Antenna | 2 Dual-Band Antennas • 2.4 GHz: 2× 3 dBi • 5 GHz: 2× 4 dBi |
| Mounting | Wall Plate Mounting |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 50㎡(600 ft²)△ |
| Concurrent Clients | 120+△ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Omada Mesh† • Seamless Roaming† • Beamforming • MU-MIMO • Rate Limit • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication† • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: < 20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, EIRP) • FCC: < 21 dBm (2.4 GHz) < 21 dBm (5 GHz) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall • Installation Guide • Mounting Kits |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
| Manufacturer SKU | EAP615-WALL |
|---|---|
| EAN | 4897098683606 |
| Manufacturer | TP-Link |
| GPSR contact | TP-Link Polska Sp. z o.o. ul. Ożarowska 40/42, Duchnice 05-850, Poland support.pl@tp-link.com |
