XB-TR-FOSC-G-D-V3A

XB-TR-FOSC-G-D-V3A

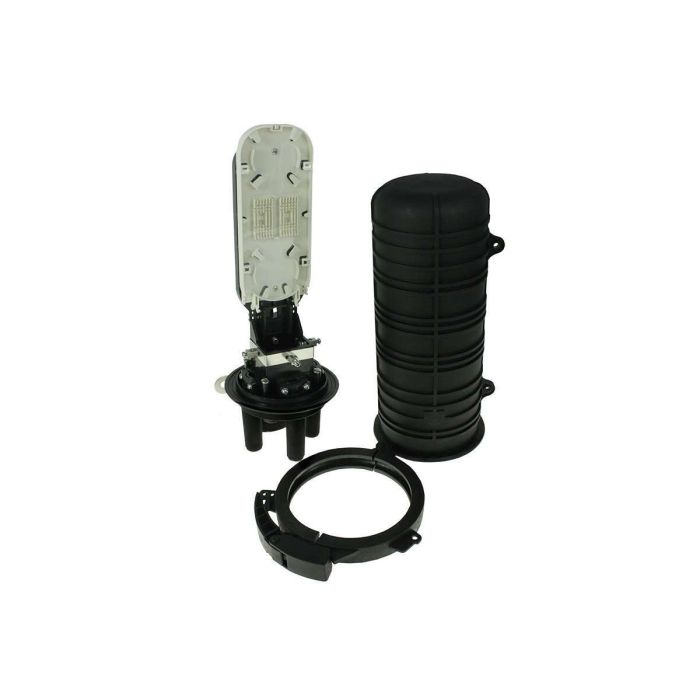

Fiber optic splice closure Tracom SC G-D v3.0 Type-A (48/96J: 4xP010) completely hermetic, equipped with glands on 4 ports of entry/exit. Fiber organization in fiber optic splice closures is easier because you can install fiber trays, which can be purchased separately, and allowing the customers to decide whether they need and in what quantity.

Series of vertical fiber optic splice closures Tracom is equipped with a fully sealed glands of entry/exit. This type of splice closure is used to protect cable bundles of optical fiber cable and branching application. Material Polypropylene (PP) (in previous version it was: Polycarbonate (PC)) who creates the cover is made of high quality plastic, resistant to UV RAYS, low (-40°C) and high (+60°C) temperature, and chemicals, making it suitable for installation of overhead and to canalization and to ground. Designed to easy and simple installation. Fiber organization in fiber optic splice closures is easier because you can install fiber trays, which can be purchased separately, and allowing the customers to decide whether they need and in what quantity. All metal components of fiber optic splice closure are made of corrosion-resistant materials. Equipped with a grounding element and installed in splice closure valve for pressure control.

Kit contains:

• 1pcs. bracket for fixing on the pole/wall/other object
• Tube for sealing the cable bushing
• Fiber fusion Splice Protection Sleeves
• Protection tube for the distribution fibers
• Self-adhesive aluminium tape for cable protection during welding shrink tape
• Sandpaper
• Cleaning wipes

Accessories need to purchase: Optical fiber trays (per table)

Technical specification:

Height:	410mm
Weight:	1,49kg
Splice tray (fibers):	P010 (12/24)
Maximum capacity of fibers (trays):	48/96(4)
Grounding:	Yes
Sealing:	mechanical
Number of round ports:	4 pcs. (18,5mm)
