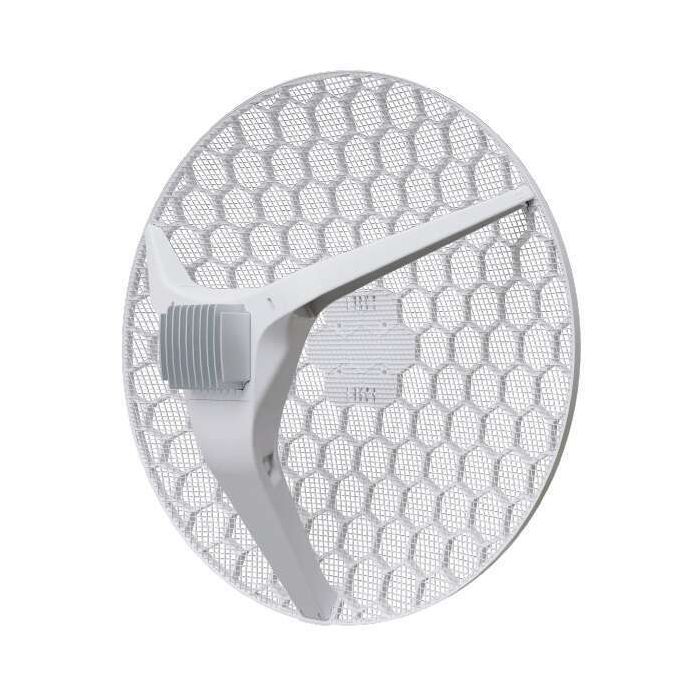

Mikrotik LHG XL 52 ac (RBLHGG-5HPacD2HPnD-XL)
| Manufacturer SKU | RBLHGG-5HPacD2HPnD-XL |
|---|---|
| EAN | 4752224003980 |
| Manufacturer | Mikrotik |
| PCS in collective packaging | 3 |
The LHG XL 52 ac is extremely powerful dual-band backbone/CPE for long-distance connection without downtime
Easy setup the 5 GHz channel as the main one with speed up to 600 Mbps and use the 2.4 GHz channel as an automatic backup connection with speed up to 260 Mbps.
The powerful 27 dBi 5GHz / 18 dBi 2.4 GHz antenna will provide connection with link distance up to 40 km. The grid design ensures protection against wind, it can withstand temperatures from -40 C° to +70 C°. Antenna element is built into the wireless unit – no loss on cables. This device can handle the heaviest loads thanks to the impressive quad-core CPU and 256 MB of RAM. It has a Gigabit Ethernet port, an SFP port, and it is 802.3af/at compliant – you can power it with the smart switches!
Technical Specification:
| CPU nominal frequency | 716 MHz |
| CPU core count | 4 |
| Size of RAM | 256 MB |
| Storage | 16 MB Flash |
| 10/100/1000 Ethernet ports | 1 |
| 1G SFP ports | 1 |
| Wireless | 2.4 GHz 802.11b/g/n 5 GHz 802.11a/n/ac, dual-chain |
| Wireless regulations | Specific frequency range can be limited by country regulations |
| Operating frequency | 2.4 GHz 2412 - 2484 MHz 5 GHz 5150 - 5875 MHz |
| Antenna gain | 2,4 GHz 18 dBi 5GHz 27 dBi |
| Antenna beam width | 2,4 GHz 15° 5GHz 7° |
| PoE in | 802.3af/at |
| Supported input voltage | 12 V - 57 V (802.3af/at and passive PoE) |
| Wind loading | 186N @ 205 km/h |
| Operating temperature | -40 to 70° C |
| Dimensions | dia. 550 x 291 mm |
| Max Power consumption | 15 W |
| License level | 3 |
| Manufacturer SKU | RBLHGG-5HPacD2HPnD-XL |
|---|---|
| EAN | 4752224003980 |
| Manufacturer | Mikrotik |
| PCS in collective packaging | 3 |
