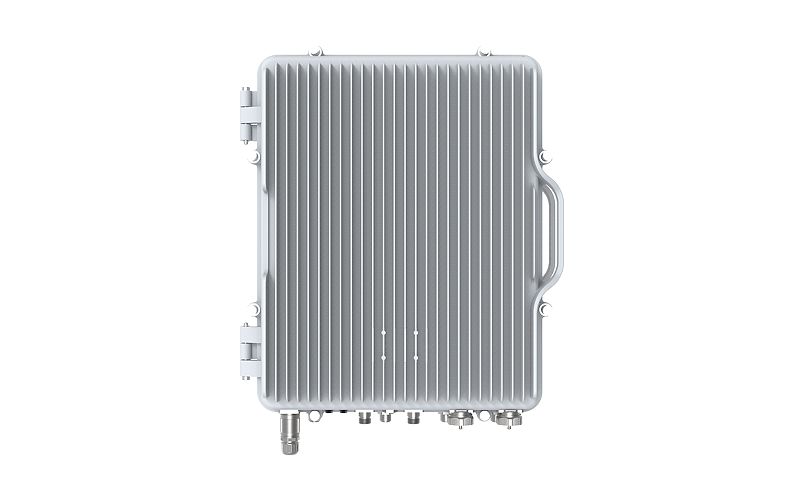

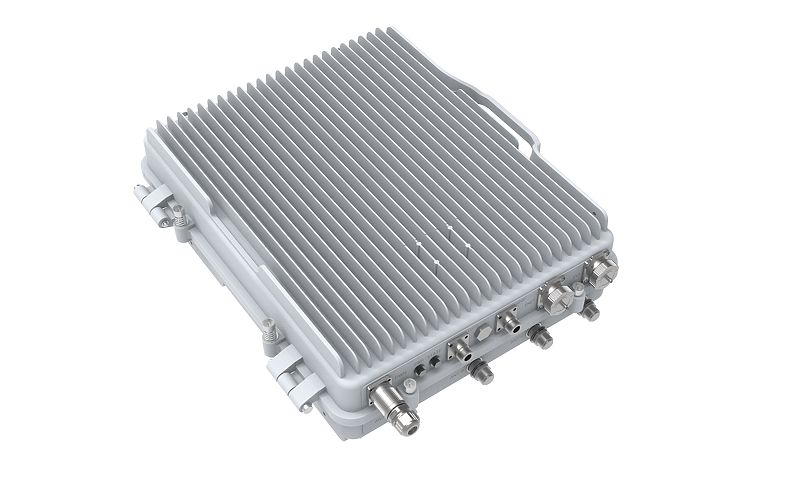

Mikrotik Intercell 10 B38+B39 - outdoor TDD-LTE base station 2x10W (P02003-B38B39-10W)
| Manufacturer SKU | P02003-B38B39-10W |
|---|---|
| Manufacturer | Mikrotik |
| PCS in collective packaging | 1 |
The MikroTik Intercell 10 B38+B39 is a dual-carrier TDD-LTE (3GPP Rel. 12) outdoor base station operating in the 2.6 GHz and 1.9 GHz bands. With 2x 10W of power, carrier aggregation, and SON features, it provides an efficient infrastructure with up to 280 Mbps DL capacity for 192 users.
MikroTik Intercell 10 B38+B39 – Outdoor TDD-LTE Dual-Carrier Base Station
MikroTik Intercell 10 B38+B39 (P02003-B38B39-10W) is an advanced base station designed to operate in the TDD-LTE standard, dedicated to building wireless infrastructure in the B38 (2570–2620 MHz) and B39 (1880–1920 MHz) bands. The device uses a dual-carrier architecture, offering 2x output power (2x 10W), with each RF channel supporting 2x2 MIMO technology. Thanks to the implementation of the 3GPP Release 12 standard and support for carrier aggregation, the unit enables throughputs of up to 280 Mbps downlink (DL) and 60 Mbps uplink (UL) with a 20 MHz channel width.
The system is equipped with an OCXO with frequency stability of ±0.05 ppm and supports multi-level synchronization via GPS, IEEE 1588v2, and Network Listening. A key software element is the SON (Self-Organizing Network) function, which automates frequency configuration, PCI, PRACH, ANR, and TPM, MRO/MLB/TPM parameter optimization, and self-healing mechanisms. The device supports up to 2*192 connected RRC users and 2*96 active users, while also supporting VoLTE, ESRVCC, and CSFB voice services.
The IP66-rated housing guarantees reliable operation in harsh outdoor conditions, within a wide temperature range of -40°C to +55°C. Communication interfaces include a gigabit Ethernet port (RJ45) and an SFP slot, providing flexibility in choosing the transmission medium for the bus. Power is supplied via a standard -48V DC connector, and network management is implemented using the TR069 protocol, which allows for full diagnostics and remote configuration of radio and network parameters.
Key features:
-
Operating standard: TDD-LTE, 3GPP Release 12.
-
Supported bands: B38 (2.6 GHz) and B39 (1.9 GHz).
-
Output power: Maximum 40±1 dBm per antenna (2x 10W).
-
Bandwidth (CA 20 MHz): DL 280 Mbps (256QAM), UL 60 Mbps (64QAM).
-
Channel width: 5, 10, 15, 20 MHz.
-
RF connectors: 6 ports (4x ANT, SNF GPS/BD), 50 Ω impedance.
-
Synchronization: GPS, 1588v2, Network Listening; OCXO oscillator (±0.05 ppm).
-
Power supply: -48V DC; power consumption below 200 W.
-
Ingress protection class: IP66.
-
Operating conditions: Temperature from -40°C to +55°C; Humidity 0% to 95%.
-
Network Features: SON, LIPA, RAN Sharing, QoS (3GPP QCI).
-
Reliability: MTBF 150,000 hours.
Technical Specifications
Hardware Specifications |
|
| LTE Mode | TDD |
| Frequency Bands | B38: 2570 MHz - 2620 MHz / B39: 1880 MHz - 1920 MHz |
| Channel Bandwidth | 5/10/15/20 MHz |
| DPD Support | Yes |
| Accuracy Frequency Range | ±0.05 ppm (OCXO) |
| Synchronization | GPS, 1588v2, Network Listening |
| Backhaul Network | 1x RJ45 Ethernet (10/100/1000) and 1x optical SFP |
| Number of RF Ports | 6 RF (4*ANT SNF GPS/BD) |
| Characteristic Impedance connectors | 50Ω |
| In-band input reflection rejection | ≥ 15dB |
| Maximum output power | 40 ± 1dBm / antenna |
| Target Rx sensitivity | ≤ -104dBm (25RBs, QPSK 1/3 as defined in 3GPP TS 36.141) |
| Adjacent Channel Leakage Ratio (ACLR) | < - 45dBc |
| Maximum Tx EVM (64 QAM) | < 4.5% |
Software Specifications |
|
| LTE Standard | 3GPP Release 12 |
| Peak Data Rate (20 MHz BW) per Carrier | DL: 140Mbps (256QAM, SF2) / UL: 30Mbps (64QAM, SF1) |
| Peak Data Rate (20 MHz BW) with Aggregation Carriers | DL: 280Mbps (256QAM, SF2) / UL: 60Mbps (64QAM, SF1) |
| Modulation | DL: QPSK, 16QAM, 64QAM, 256QAM / UL: QPSK, 16QAM, 64QAM |
| Maximum number of users | 2 * 192 connected RRC users / 2 * 96 active users |
| Voice solutions | VoLTE, eSRVCC, CSFB |
| SON Features | Self-Configuration: Frequency Selection/PCI/PRACH, ANR, TPM Self-Optimization: MRO, MLB, TPM Self-Healing |
| Network Management Interface | TR069 |
| Traffic Offload | Local IP Access (LIPA) |
| RAN Sharing | Yes |
| QoS | Standard 3GPP QCI |
| S1 Congestion Resolution | Yes |
| Maintenance | Local or Remote Maintenance / Configuration Management / Performance Management / Fault Management / Software Upgrade / Tracking and Logging |
| MTBF | ≥ 150,000 hours |
| MTTR | ≤ 1 hour |
Power Supply |
|
| Power Type (AC or DC) | - 48V DC |
| Power Consumption | < 200 W |
Other |
|
| Volume | < 22.2L |
| Weight | < 25 kg |
| Installation | Pole-mounted, wall-mounted |
| Operating temperature | -40ºC to +55ºC |
| Storage temperature | -40ºC to +75ºC |
| Operating humidity | 0% to 95% |
| Ingress protection class (IP Rating | IP66 |
| Power Interface Protection | GB/T 17626.5, IEC61000-4-5 |
| Manufacturer SKU | P02003-B38B39-10W |
|---|---|
| Manufacturer | Mikrotik |
| PCS in collective packaging | 1 |
| GPSR contact | Mikrotikls SIA Unijas iela 2, LV-1039 Riga, Latvia support@mikrotik.com |
