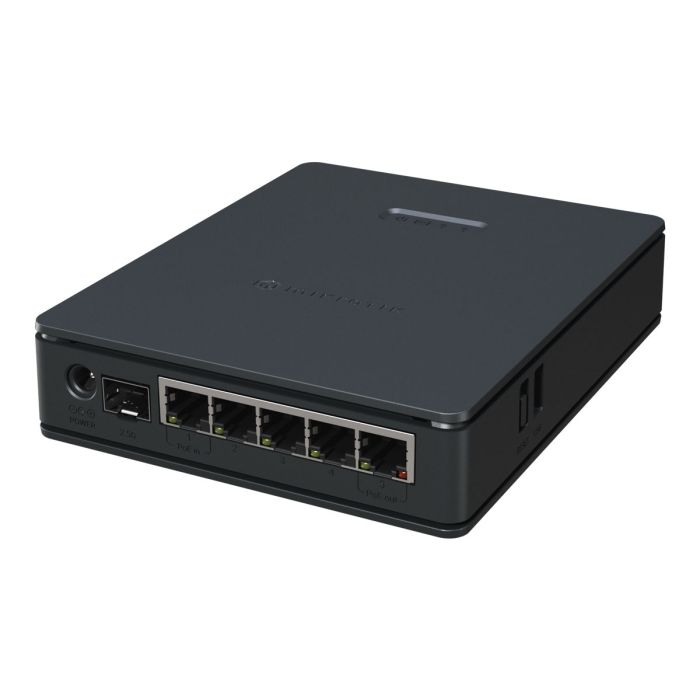

MikroTik hAP ax S - E62iUGS-2axD5axT

hAP ax S – Dual-Band Wi-Fi 6 Router, 5x GbE, 2.5G SFP, Triple-Chain 5 GHz

The hAP ax S is a dual-band Wi-Fi 6 router operating in the 802.11ax standard, utilizing 2x2 data streams in the 2.4 GHz band and 3x3 data streams in the 5 GHz band, providing a real throughput of approximately 800–900 Mbit/s in the 5 GHz range. It features integrated antennas with gains of 5.5 dBi (2.4 GHz) and 8 dBi (5 GHz), ensuring solid Wi-Fi coverage in small homes or apartments. The Wi-Fi 6 access point hAP ax S is equipped with 5 Gigabit Ethernet ports, with port 5 supporting Passive PoE-Out to power external devices. Additionally, it includes an SFP slot supporting modules up to 2.5 Gb/s.

The device runs RouterOS v7 (license level 4), offering advanced features such as VLAN configuration, firewalls, VPN tunnels, traffic shaping, automation scripts, and SMS management.

The hAP ax S router can be powered in two ways: via a DC jack (12–28 V) or through an Ethernet port using Passive PoE-In (18–28 V). Ethernet port 5 supports Passive PoE-Out.

Main Features of hAP ax S

• Dual-band Wi-Fi 6 (802.11ax): 2x2 in 2.4 GHz, 3x3 in 5 GHz.
• Five Gigabit Ethernet ports + SFP 1G slot supporting up to 2.5G.
• Passive PoE-In and Passive PoE-Out (Ether5).
• RouterOS v7 (L4) – VLAN, firewall, VPN, QoS, scripting.
• Dual-core ARM CPU 950 MHz, 512 MB DDR3 RAM, 128 MB NAND.
• Operating temperature range: −40 °C to +70 °C.

Technical Specification – hAP ax S

Identification

Model	hAP ax S
Product code	E62iUGS-2axD5axT
Operating system	RouterOS v7, License level 4

Processor and Memory

CPU	Dual-Core EN7562CT, 950 MHz
CPU architecture	ARM 32-bit
RAM	512 MB DDR3
Storage	128 MB NAND
Switch chip	EN7562CT

Interfaces

Ethernet	5 × 10/100/1000Base-T (RJ45)
SFP	1 × SFP 1G (supports up to 2.5G)
USB	1 × USB Type-A
Wireless interfaces	2.4 GHz and 5 GHz (Wi-Fi 6)

Power

Number of power inputs	2 (DC jack, PoE-In)
DC input voltage range (jack)	12–28 V
PoE-In voltage range	18–28 V
PoE-In standard	Passive PoE
PoE-Out	Passive PoE (Ether5 port)
Max current per PoE-Out port	0.6 A (input < 30 V)
Total PoE-Out power output	up to 16.8 W
Max power consumption (without accessories)	11 W
Max total power consumption	34 W
Included power adapter	24 V / 1.5 A

Wi-Fi

2.4 GHz standards	IEEE 802.11b/g/n/ax
2.4 GHz radio chip	MT7916
2.4 GHz chains	2
2.4 GHz antenna gain	5.5 dBi
5 GHz standards	IEEE 802.11a/n/ac/ax
5 GHz radio chip	MT7976
5 GHz chains	3
5 GHz antenna gain	8 dBi
Approx. throughput	~800–900 Mbit/s (5 GHz)

Radio parameters – 2.4 GHz (TX / sensitivity)

1 Mbit/s	24 dBm / −100 dBm
11 Mbit/s	24 dBm / −94 dBm
6 Mbit/s	23 dBm / −96 dBm
54 Mbit/s	21 dBm / −80 dBm
MCS0	22 dBm / −96 dBm
MCS7	20 dBm / −75 dBm
MCS9	19 dBm / −70 dBm
MCS11	15 dBm / −67 dBm

Radio parameters – 5 GHz (TX / sensitivity)

6 Mbit/s	23 dBm / −96 dBm
54 Mbit/s	21 dBm / −81 dBm
MCS0	23 dBm / −96 dBm
MCS7	20 dBm / −77 dBm
MCS9	20 dBm / −72 dBm
MCS11	18 dBm / −69 dBm

Enclosure and Environment

Dimensions	156 × 127 × 36 mm
Operating temperature	−40 °C to +70 °C

Package Contents

Accessories

24 V / 1.5 A power adapter
