Mikrotik Chateau LTE6 (D53G-5HacD2HnD-TC&FG621-EA)
Manufacturer SKU | D53G-5HacD2HnD-TC&FG621-EA |
---|---|
EAN | 4752224008879 |
Cable lenght | 1m |
Manufacturer | Mikrotik |

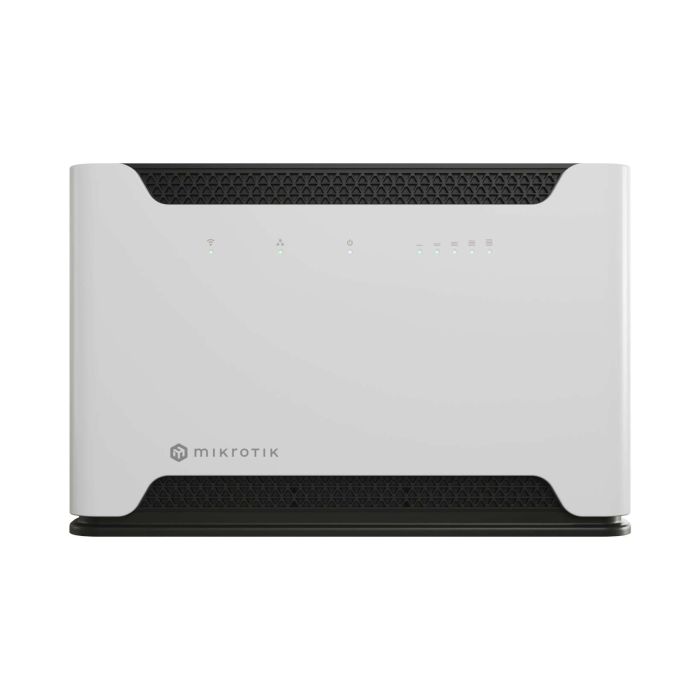

MikroTik Chateau LTE6 (S53UG+5HaxD2HaxD-TC&FG621-EA)
MikroTik Chateau LTE6 is a fast and efficient router designed primarily for home users and small offices. The device is equipped with a quad-core ARM processor and 256MB of RAM.
Chateau LTE6 has 5 Gigabit Ethernet ports (10/100/1000Mbps). Wireless connectivity is provided by two independent modules connected to the 2x2 MIMO antenna. One of them works in the 2.4GHz band (802.11b/g/n) and offers speeds up to 300Mbps, the other in the 5GHz band (802.11a/n/ac) and can work at speeds up to 867Mbps.
The LTE modem works in CAT6 mode, for its needs the device has one Micro SIM slot.
Main features:
- LTE CAT6 modem
- 5 x Gigabit Ethernet ports
- WiFi 2.4GHz 2x2 MIMO 802.11n, WiFi 5GHz 2x2 MIMO 802.11ac
- USB 2.0 port
Technical specification:
Product code | D53G-5HacD2HnD-TC&FG621-EA |
CPU | Quad-Core IPQ-4019 716 MHz |
CPU architecture | ARM 32bit |
Size of RAM | 256 MB |
RAM type | DDR3L |
Storage | 16 MB, Flash |
Number of 1G | Ethernet ports 5 |
USB port | 1 (2.0 type A) |
Switch chip model | IPQ-4019 |
Wireless interface model | IPQ-4019 (2.4 GHz), IPQ-4019 (5 GHz) |
Wireless | 2.4 GHz 802.11b/g/n dual-chain, 5 GHz 802.11a/n/ac dual-chain |
Antenna gain | 2.4 GHz - 2 dBi, 5 GHz - 4 dBi |
LTE category | 6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
LTE modem | FG621-EA |
TAC | 86335904 |
MIMO DL | 2x2 |
LTE FDD | bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) Suitable for the EMEA/APAC/Australia regions. |
LTE TDD | bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
3G Category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
3G Bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
Dimensions | 240 x 156 x 44 mm |
Operating system | RouterOS v7, License level 4 |
Operating temperature | -40°C to +70°C |
Manufacturer SKU | D53G-5HacD2HnD-TC&FG621-EA |
---|---|
EAN | 4752224008879 |
Cable lenght | 1m |
Manufacturer | Mikrotik |
