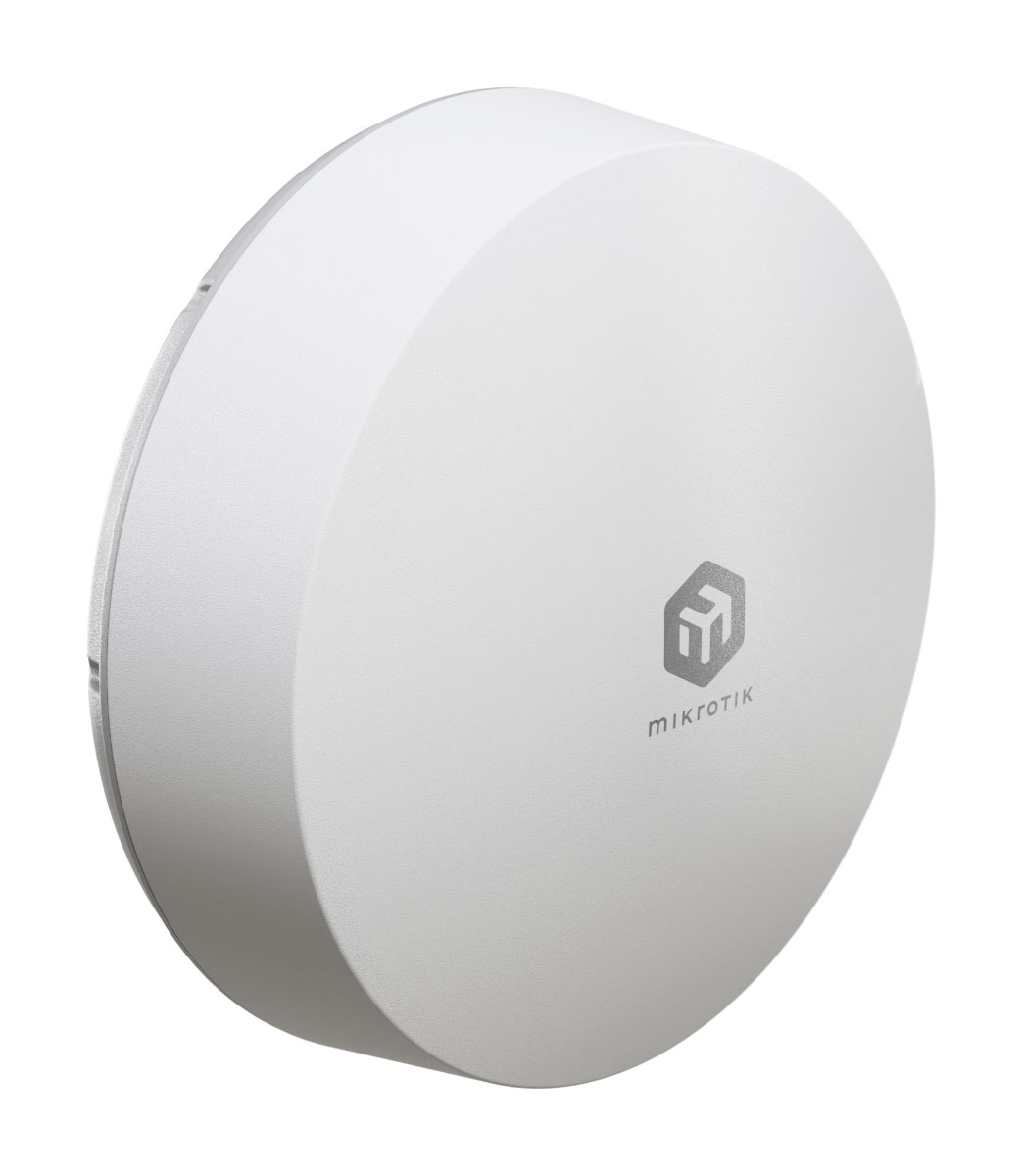

MikroTik ATL 5G R16 (ATLGM&RG520F-EU)
| Manufacturer SKU | ATLGM&RG520F-EU |
|---|---|
| Manufacturer | Mikrotik |
| PCS in collective packaging | 3 |
MikroTik ATL 5G R16 (ATLGM&RG520F-EU)
Product Description
The MikroTik ATL 5G R16 is an outdoor LTE/5G CPE designed to deliver instant and reliable mobile connectivity in even the most remote or harsh environments. It features a 5G/LTE Cat 20 modem with 4x4 MIMO and Band 28 support, combined with a high-gain 16 dBi directional antenna to ensure stable connections and extended range.
This unit includes a built-in eSIM solution with MikroTik Connectivity, making it possible to go online instantly with a pre-activated data plan. Alternatively, it supports standard micro SIM cards and allows seamless switching between multiple profiles. Whether in rural or urban locations, ATL 5G delivers dependable performance, thanks to support for key 5G and LTE bands.
With its IP66-rated enclosure, the ATL 5G is snow-resistant, dust-tight, and designed to withstand strong water jets. This rugged design makes it ideal for outdoor installations in cold or humid climates. The device is powered via PoE (12–56V) for a simplified one-cable setup and includes a Gigabit Ethernet port for high-speed backhaul.
Key Features
- 5G + LTE Cat 20 modem with 4.2 Gbps downlink and 900 Mbps uplink (SA)
- Built-in MikroTik Connectivity eSIM support, plus micro SIM slot
- 4x4 MIMO with high-gain 16 dBi directional antenna
- Supports Band 28 and a wide range of FDD and TDD bands
- PoE-in and Gigabit Ethernet for easy installation and high-speed networking
- IP66-rated housing, snow-resistant and weatherproof
Technical Specifications
Mechanical
| Dimensions | 311 x 311 x 179 mm |
| Operating Temperature | -40°C to +70°C |
| Enclosure | IP66-rated, outdoor-capable |
Hardware
| CPU | Dual-Core 88F3720 800 MHz |
| RAM | 512 MB |
| Storage | 32 MB Flash |
| Networking Interfaces | 1x 1G Ethernet, PoE-in (802.3af/at) |
| SIM slots | 1x micro SIM, eSIM built-in |
| Modem | 5G SA/NSA, LTE Cat 20, 3G R8 |
| Antenna Gain | 16 dBi directional |
| Powering | PoE 12–56V, max. consumption 10 W |
| Operating System | RouterOS v7, License level 3 |
| Included Accessories | PoE injector, 24 V 0.8 A adapter, hose clamp |
Summary
ATL 5G R16 offers powerful 5G and LTE performance with extreme reliability in remote and demanding outdoor scenarios. Its combination of directional antenna design, rugged housing, and flexible SIM/eSIM options make it the ideal choice for rural access, backup links, and industrial IoT deployments.
| Manufacturer SKU | ATLGM&RG520F-EU |
|---|---|
| Manufacturer | Mikrotik |
| PCS in collective packaging | 3 |
| GPSR contact | Mikrotikls SIA Unijas iela 2, LV-1039 Riga, Latvia support@mikrotik.com |
