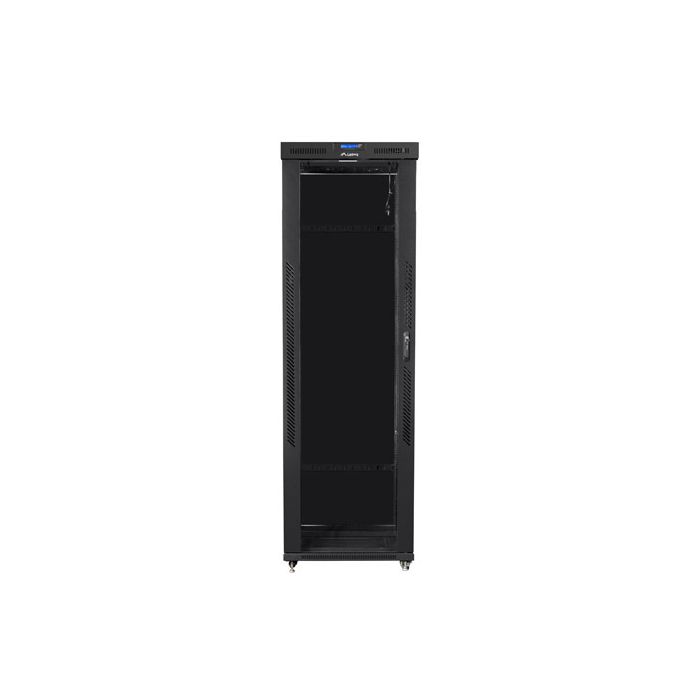

Lanberg :: Szafa stojąca jednosekcyjna Lanberg FF01-8047-12B to rozwiązanie przeznaczone do budowy sieci, montażu okablowania oraz sprzętu w rozmiarze 19” o maksymalnym łącznym udźwigu do 800 kg

Features:

• Cabinet type: Freestanding
• Body color: Black RAL9004
• Height: 47U
• Cabinet dimensions (W x D x H): 800x1000x2270 mm
• Height (top panel - bottom panel): 2191 mm
• Height (top panel - ground): 2264 mm
• Height (top panel - ground including screws): 2270 mm
• Packaging dimensions (W x D x H): Top & Bottom - 83x103x12 cm, Doors - 83.5x212.5x9.5 cm, Frame - 80.5x218x25 cm, Vertical cable management - 19x212x11.5 cm
• Floor panel: 4 castors with brake + adjustable legs
• Internal width spacing between rack rails: 450 mm
• Width of the spacing between holes of rack rails: 465 mm
• External width spacing between rack rails: 500 mm
• Loading capacity: To 800 KG
• Degree of protection: IP20
• Top with fan tray: included 4 fans 230V in top cover
• Doors type: Front - Temper glass, Rear - Steel
• Standard: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI
• Material: High grade cold rolled steel, powder coated
• Glass thickness: 5.0 mm
• Sheet thickness: vertical mounting rails - 2,00 mm; mounting profile - 2,00 mm; others - 1,50 mm - 1,20 mm
• Cable entry panel: Top, Bottom (adjustable)
• Packaging includes: Accessory bag, locks for front and rear doors and two side panels, 20 cage nuts M6, 2 vertical cable management panels
