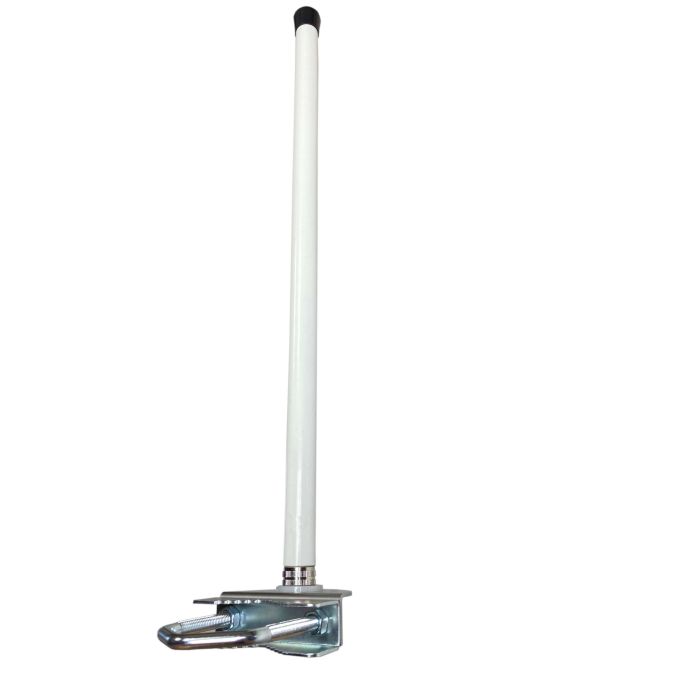

Interline Horizon Helium M 5dBi 868MHz LoRaWan
€46.60 €37.89
Out of stock
SKU
INT-IH-G05-F8688-V-M
| Manufacturer SKU | IH-G05-F8688-V-M |
|---|---|
| Manufacturer | Interline |
| PCS in collective packaging | 4 |
Interline IH-G05-F8688-V-M Helium M 868, Omnidirectional Antenna, Outdoor, Band 868MHz, Gain 5dBi, N
Product discontinued (End of Life), replaced by
Interline HORIZON 868 Helium M LoRaWan
IH-G05-F8688-V-M
Designed for IoT M2M ( Machine to Machine ) systems like Lora, Sigfox, XBee, RFID. Horizon 868 MHz is carefully designed omnidirectional antenna working in the unlicensed 867-870MHz band. Typical applications are monitoring and digital transmission of small amounts of data (up to 40 kbps)
Electrical specification:
| Frequency (min) | 860MHz |
| Frequency (max) | 880MHz |
| Gain | 5dBi |
| VSWR (max) | 2.00:1 |
| Polarization | Vertical |
| Half Power Beam Width (-3dB) - horizontal | 360° |
| Half Power Beam Width (-3dB) - vertical | 40° |
| XPD (Cross Polarization Discrimination) | >20dB |
| Max Composite Power | 500W |
| DC Ground | yes |
| Impedance | 50Ω |
Mechanical specification:
| Connector | N female |
| Mounting Diameter | ø 38 ... 51mm |
| Dimensions (excl. mount) | 540x26 |
| Weight (incl. mount) | 0,49kg |
| Manufacturer SKU | IH-G05-F8688-V-M |
|---|---|
| Manufacturer | Interline |
| PCS in collective packaging | 4 |
