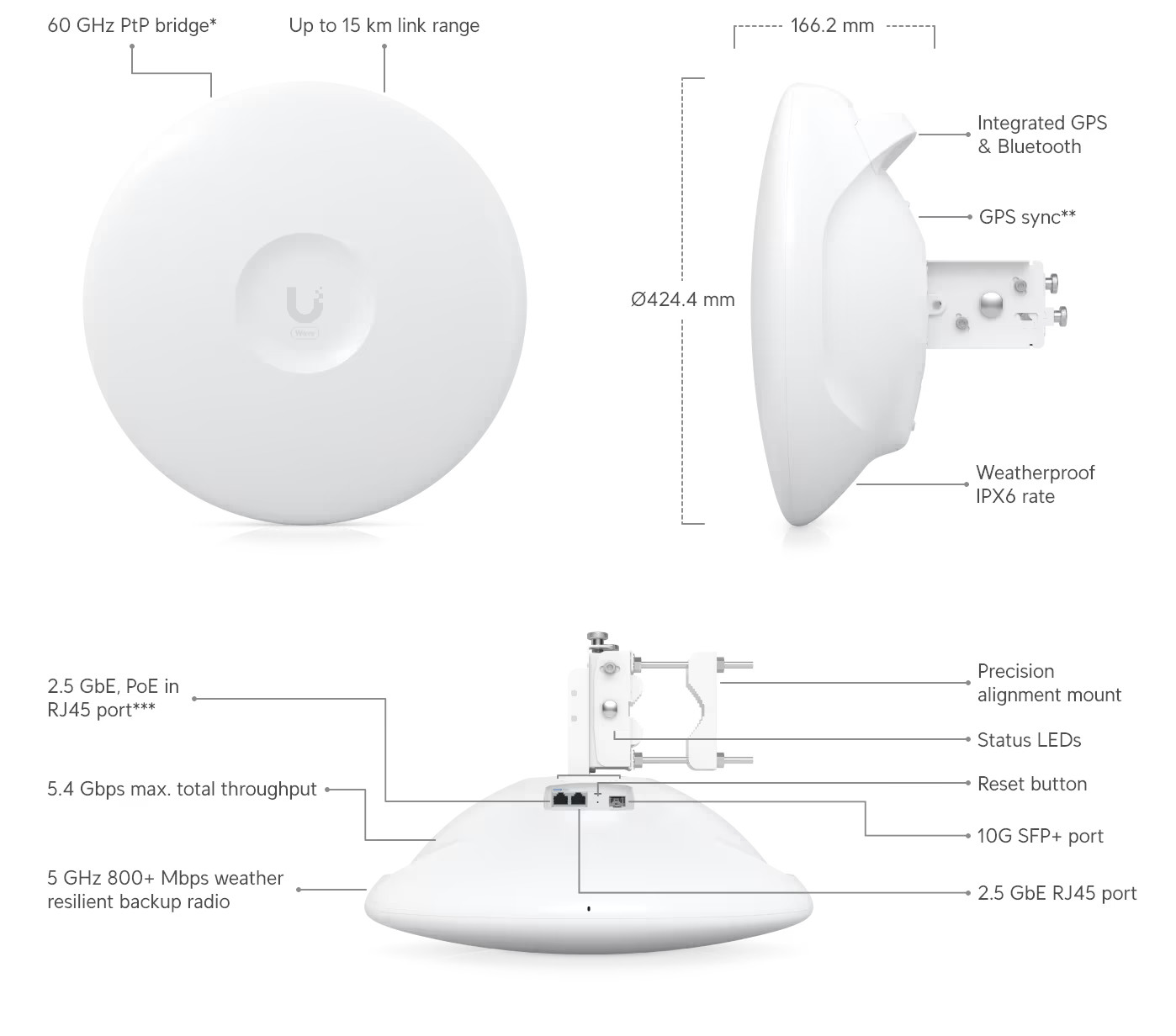

Ubiquiti Wave Pro (Wave-Pro)
2 770,34 zł 2 252,31 zł
W magazynie
SKU
UBIQUITI-WAVE-PRO
| Kod producenta | Wave-Pro |
|---|---|
| EAN | 810084690284 |
| Długość przewodu | 1m |
| Producent | Ubiquiti |
| Ilość sztuk w opakowaniu zbiorczym | 1 |
Stacja PtMP 60 GHz z technologią Wave.
Może łączyć się z punktem dostępowym Wave i zapewniać całkowitą przepustowość 2 Gb/s (w dupleksie 1 Gb/s). Wave Nano jest wyposażony w wysokowydajne zapasowe radio 5 GHz, które zapewnia nieprzerwane połączenie, oraz radio Bluetooth, które upraszcza konfigurację za pomocą aplikacji mobilnej UISP®.
FCechy:
- Radio zapasowe 5 GHz
- Długość linku: 5 km
- Obsługa trybu routera
- Zintegrowana antena GPS
- Wsparcie planowania łączy za pośrednictwem ISP Design Center
Zarządzane za pomocą aplikacji UISP: wersja 1.4.5 i nowsza
| Mechanical | ||
| Dimensions | Ø256.5 x 113.5 mm (Ø10.1 x 4.5") | |
| Weight | Without mount: 932 g (2.1 lb) With mount: 1.2 kg (2.6 lb) |
|
| Enclosure materials | Aluminum alloy, UV stabilized plastic | |
| Mount materials | Aluminum alloy, UV stabilized plastic | |
| Pole mount diameter | 25 to 63.5 mm (1 to 2.5") on pipe outer diameter | |
| Wind loading | 127 N at 200 km/h (28.6 lbf at 125 mph) | |
| Weatherproofing | IPX6 | |
| Hardware | ||
| Processor | Dual ARM® Cortex®-A53 cores at 1 GHz | |
| Memory | DDR3L 512 MB | |
| Networking interface | (1) GbE RJ45 port | |
| Max. power consumption | 18W | |
| Power method | 48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-) 24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) |
|
| Power supply | 48V DC, 0.65A gigabit PoE adapter (included) Can be powered by a UISP Router or UISP Switch |
|
| GPS | Yes | |
| Button | Factory reset | |
| LEDs | Power, Ethernet, GPS, link | |
| Operating temperature | -40 to 60° C (-40 to 140° F) | |
| Operating humidity | 5 to 95% noncondensing | |
| Certifications | FCC, IC, CE | |
| Software | ||
| OS | airOS® | |
| Operating mode | PtMP station | |
| Ubiquiti specific features | Wave AI, discovery protocol | |
| Services | UISP, ping watchdog, NTP client, SNMP | |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test | |
| Network | Bridge/Router mode | |
| Software management | Bluetooth management for easy setup over UISP app WEB UI |
|
| Minimum software requirements | Any modern web browser/iOS™ or Android™ based smartphone | |
| System | ||
| Total throughput | 2 Gbps (1 Gbps duplex) | |
| Maximum range | 5+ km | |
| Encryption | WPA2-PSK (AES) | |
| RF | ||
| Operating frequency* | 57 to 71 GHz *Depends on regulatory region. |
|
| Channel bandwidth | 2160, 1080 MHz | |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. |
|
| Modulation | 16QAM, QPSK | |
| Antenna gain | 41 dBi | |
| Beamwidth | 3 dB: 1° 6 dB: 1.4° |
|
| Back-Up RF | ||
| WiFi standard | 802.11ax (WiFi 6) | |
| Operating frequency* US/CA |
U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz |
|
| Worldwide | 5150 - 5875 MHz *Depends on regulatory region. |
|
| Channel bandwidth | 20, 40, 80 MHz | |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) | |
| Antenna gain | 19 dBi | |
| Polarization | Dual-linear | |
| Cross-pol isolation | 20 dB | |
| Beamwidth | Azimuth: 3 dB BW 14 to 17° Elevation: 3 dB BW 14 to 17° |
|
| Azimuth and elevation beamwidth | 3 dB: 14 to 17° | |
| LEDs | ||
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
|
| Ethernet | Flashing blue: Ethernet traffic detected | |
| GPS | Blue: receiving at least (4) GPS satellite signal | |
| Links | White: 5GHz link Blue: 60GHz link |
|
| Kod producenta | Wave-Pro |
|---|---|
| EAN | 810084690284 |
| Długość przewodu | 1m |
| Producent | Ubiquiti |
| Ilość sztuk w opakowaniu zbiorczym | 1 |
