Ubiquiti Wave Pro (Wave-Pro)
688,10 € 559,43 €
Disponibile
SKU
UBIQUITI-WAVE-PRO
| SKU del produttore | Wave-Pro |
|---|---|
| EAN | 810084690284 |
| Produttore | Ubiquiti |
| In un imballaggio collettivo | 1 |

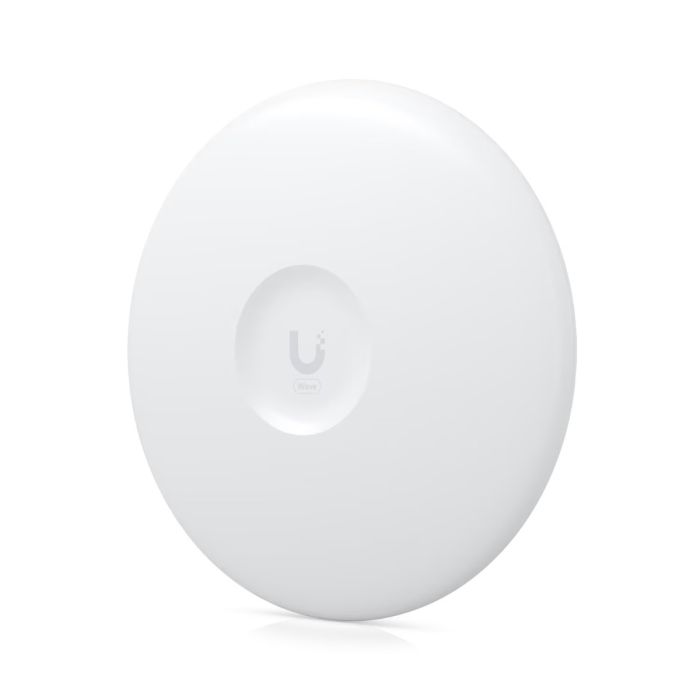

Ubiquiti UISP Wave Pro 60 GHz radio (Wave-Pro)
60 GHz High-capacity radio that supports up to 15km bridge PtP connections and point to multipoint connections (PtMP) up to 8km. The link can be paired with Wave AP (8km) or with Wave AP Micro (6km). Maximum 60GHz radio throughput is 5.4Gbps (2.7 Gbps duplex). Equipped with 2x 2.5 Gigabit Ethernet ports and 1x 10G SFP+ port. Included mounting allows precise alignment.

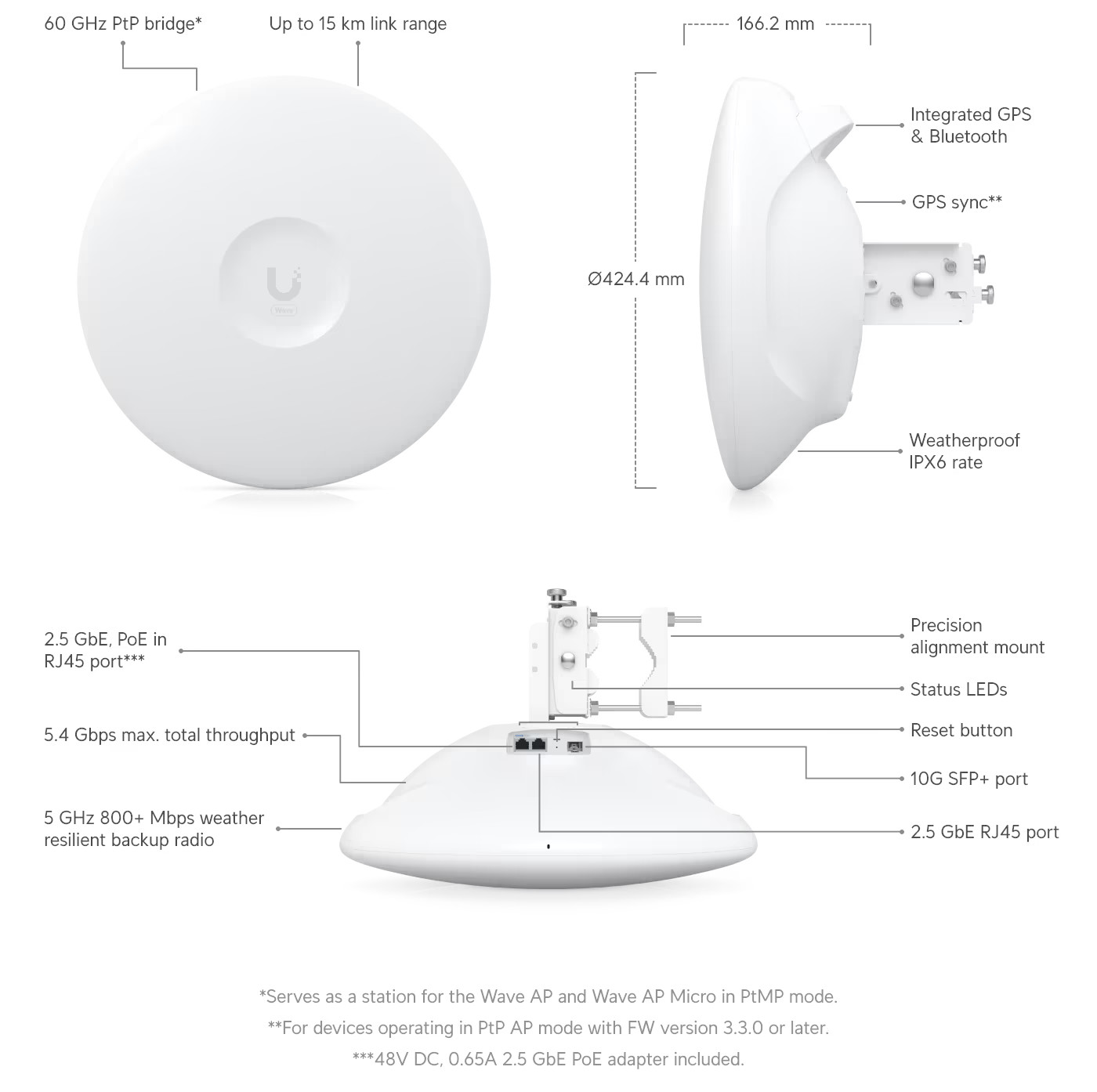

Features:
- Compatibility and supported distances:
— PtP: Up to 15 km
— PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro) - 60 GHz primary radio with 5.4 Gbps (2.7 Gbps duplex) maximum throughput
- 5 GHz 800+ Mbps weather-resistant backup radio
- (2) 2.5 GbE and (1) 10G SFP+ ports
- Ergonomic transportation handle
- Precision alignment mount
- Integrated GPS & Bluetooth
| Meccanico | ||
| Dimensioni | Ø256.5 x 113.5 mm (Ø10.1 x 4.5") | |
| Peso | Without mount: 932 g (2.1 lb) With mount: 1.2 kg (2.6 lb) |
|
| Materiali dell'involucro | Aluminum alloy, UV stabilized plastic | |
| Materiali di montaggio | Aluminum alloy, UV stabilized plastic | |
| Diametro di montaggio su palo | 25 to 63.5 mm (1 to 2.5") on pipe outer diameter | |
| Wind loading | 127 N at 200 km/h (28.6 lbf at 125 mph) | |
| Protezione dalle intemperie | IPX6 | |
| Hardware | ||
| Processore | Dual ARM® Cortex®-A53 cores at 1 GHz | |
| Memoria | DDR3L 512 MB | |
| Interfaccia di rete | (1) GbE RJ45 port | |
| Consumo massimo di energia | 18W | |
| Metodo di alimentazione | 48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-) 24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) |
|
| Alimentazione | 48V DC, 0.65A gigabit PoE adapter (included) Can be powered by a UISP Router or UISP Switch |
|
| GPS | Yes | |
| Pulsante | Factory reset | |
| LED | Power, Ethernet, GPS, link | |
| Temperatura di esercizio | -40 to 60° C (-40 to 140° F) | |
| Umidità di esercizio | 5 to 95% noncondensing | |
| Certificazioni | FCC, IC, CE | |
| Software | ||
| OS | airOS® | |
| Modalità operativa | PtMP station | |
| Ubiquiti specific features | Wave AI, discovery protocol | |
| Servizi | UISP, ping watchdog, NTP client, SNMP | |
| Strumenti | Antenna alignment, discovery utility, ping, trace route, speed test | |
| Rete | Bridge/Router mode | |
| Gestione del software | Bluetooth management for easy setup over UISP app WEB UI |
|
| Minimum software requirements | Any modern web browser/iOS™ or Android™ based smartphone | |
| Sistema | ||
| Produzione totale | 2 Gbps (1 Gbps duplex) | |
| Maximum range | 5+ km | |
| Crittografia | WPA2-PSK (AES) | |
| RF | ||
| Frequenza operativa* | 57 to 71 GHz *Depends on regulatory region. |
|
| Channel bandwidth | 2160, 1080 MHz | |
| Canali operativi* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. |
|
| Modulazione | 16QAM, QPSK | |
| Guadagno dell'antenna | 41 dBi | |
| Larghezza di fascio | 3 dB: 1° 6 dB: 1.4° |
|
| RF di riserva | ||
| Standard WiFi | 802.11ax (WiFi 6) | |
| Frequenza operativa* US/CA |
U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz |
|
| In tutto il mondo | 5150 - 5875 MHz *Depends on regulatory region. |
|
| Channel bandwidth | 20, 40, 80 MHz | |
| Modulazione | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) | |
| Guadagno dell'antenna | 19 dBi | |
| Polarizzazione | Dual-linear | |
| Cross-pol isolation | 20 dB | |
| Larghezza di fascio | Azimuth: 3 dB BW 14 to 17° Elevation: 3 dB BW 14 to 17° |
|
| Larghezza di fascio in azimut e in elevazione | 3 dB: 14 to 17° | |
| LED | ||
| Potenza | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
|
| Ethernet | Flashing blue: Ethernet traffic detected | |
| GPS | Blue: receiving at least (4) GPS satellite signal | |
| Links | White: 5GHz link Blue: 60GHz link |
|
| SKU del produttore | Wave-Pro |
|---|---|
| EAN | 810084690284 |
| Produttore | Ubiquiti |
| In un imballaggio collettivo | 1 |
| GPSR contatto | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
