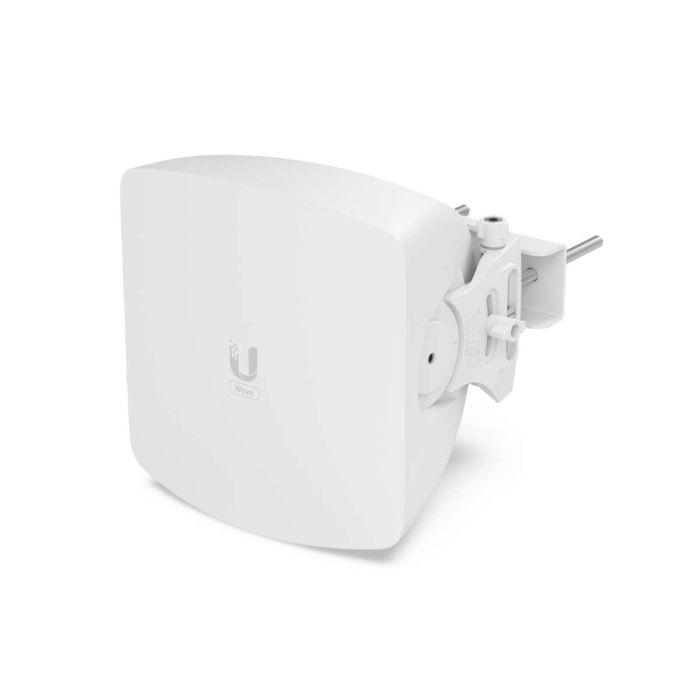

Ubiquiti UISP Wave Access Point (Wave-AP)
Kod producenta | Wave-AP |
---|---|
EAN | 810010078742 |
Długość przewodu | 1m |
Producent | Ubiquiti |
Ilość sztuk w opakowaniu zbiorczym | 4 |
60 GHz PtMP punkt dostępowy 60 GHz PtMP z technologią Wave.
Do Wave Access Point można połączyć do 15 stacji i zapewnić łączną przepustowość do 5,4 Gb/s (2,7 Gb/s w dupleksie). Jest wyposażony w wysokowydajne zapasowe radio 5 GHz, które zapewnia nieprzerwane połączenie, a także radio Bluetooth, które upraszcza konfigurację w aplikacji mobilnej UISP.
Cechy:
- Radio zapasowe 5 GHz
- Obsługiwane stacje i odległości:
- Wave Long Range: do 8 km
– Wave Nano: do 5 km
- Porty WAN: (1) 10G SFP+, (1) 2,5 GbE
- Zintegrowana antena GPS
- Wsparcie planowania łączy za pośrednictwem ISP Design Center
Zarządzane za pomocą aplikacji UISP: w wersji 1.5.7 i nowszej
Dane Techniczne:
Mechanical | ||
Dimensions | 212 x 205 x 187 mm (8.3 x 8.1 x 7.4") | |
Weight | 2.3 kg (5.07 lb) | |
Enclosure materials | Aluminum alloy, UV stabilized polycarbonate | |
Pole mount diameter | 25 to 76 mm (1 to 3") on pipe outer diameter | |
Wind loading | 98 N at 200 km/h (22 lbf at 125 mph) | |
Weatherproofing | IPX6 | |
Hardware | ||
Processor | Quad ARM® Cortex®-A53 cores at 1.4 GHz | |
Memory | DDR3L 512 MB | |
Networking interface | (1) 2.5GbE RJ45 port (100/1000/2500)* (1) 10G SFP+ port (1/10) * Active only when SFP+ port is down. |
|
Max. power consumption | 24W | |
Power method | 48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-) 24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) |
|
Power supply | 48V DC, 0.65A 2.5GbE PoE adapter (included) | |
GPS | Yes | |
Button | Factory reset | |
LEDs | Power, Ethernet, GPS | |
Operating temperature | -40 to 60° C (-40 to 140° F) | |
Operating humidity | 5 to 95% noncondensing | |
Certifications | FCC, IC, CE | |
System | ||
Total throughput | 5.4 Gbps (2.7 Gbps duplex) | |
Supported clients count | 15 | |
Range | Connecting to a Wave Long-Range: up to 8 km Connecting to a Wave Nano: up to 5 km |
|
Encryption | WPA2-PSK (AES) | |
RF | ||
Operating frequency* | 57 to 71 GHz *Depends on regulatory region. |
|
Channel bandwidth | 2160, 1080 MHz | |
Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. |
|
Modulation | 16QAM, QPSK | |
Antenna gain | 24 dBi | |
Polarization | Vertically linear | |
Beamwidth | Azimuth: 30° Elevation: 3 dB 3°, 6 dB 4° |
|
Electrical downtilt | 0° | |
Back-Up RF | ||
WiFi standard | 802.11ax (WiFi 6) | |
Operating frequency* US/CA |
U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz |
|
Worldwide | 5150 - 5875 MHz *Depends on regulatory region. |
|
Channel bandwidth | 20, 40, 80 MHz | |
Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) | |
Antenna gain | 12 dBi | |
Cross-pol isolation | 10 dB | |
Electric downtilt | 0° | |
LEDs | ||
Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
|
Ethernet | Flashing white: Ethernet traffic detected Flashing blue: SFP+ traffic detected |
|
GPS | Blue: receiving at least (4) GPS satellite signal |
