OPTIX cable AirFlow S-QOTKSdD 4x9/125 ITU-T G.657A2 (SPAN 80m)

Name: OPTIX cable AirFlow S-QOTKSdD 4x9/125 ITU-T G.657A2 (SPAN 80m)
Brand: Optic
SKU: OPTIX-S-QOTKSDD-4J
Price: 0.28 PLN
Availability: InStock

1,27 zł 1,03 zł

W magazynie

SKU

OPTIX-S-QOTKSDD-4J

Więcej informacji
Producent	Optic
Ilość sztuk w opakowaniu zbiorczym	1000

Fiber optic cable AirFlow S-QOTKSdD 4x9/125 ITU-T G657A2

Szczegóły

Więcej informacji

OPTIX Cable AIRFLOW S-QOTKSdD 0.8kN (up to 80m SPAN – NESC Heavy)

FTTX CABLE

OPTIX Cable AIRFLOW S-QOTKSdD 0.8kN (up to 80m SPAN – NESC Heavy)

9/125 ITU-T G.657A2

FEATURES

Cable for outdoor / indoor installation
Span (NESC Heavy) up to 80 meters (0.8kN)
Fully dielectric construction
Resistance to high and low temperatures
Enhaced by high quality aramid yarns
Small diameter - 3mm
Reduced bend radius - G.657A2 fibres
Solid FR Polyurethane jacket

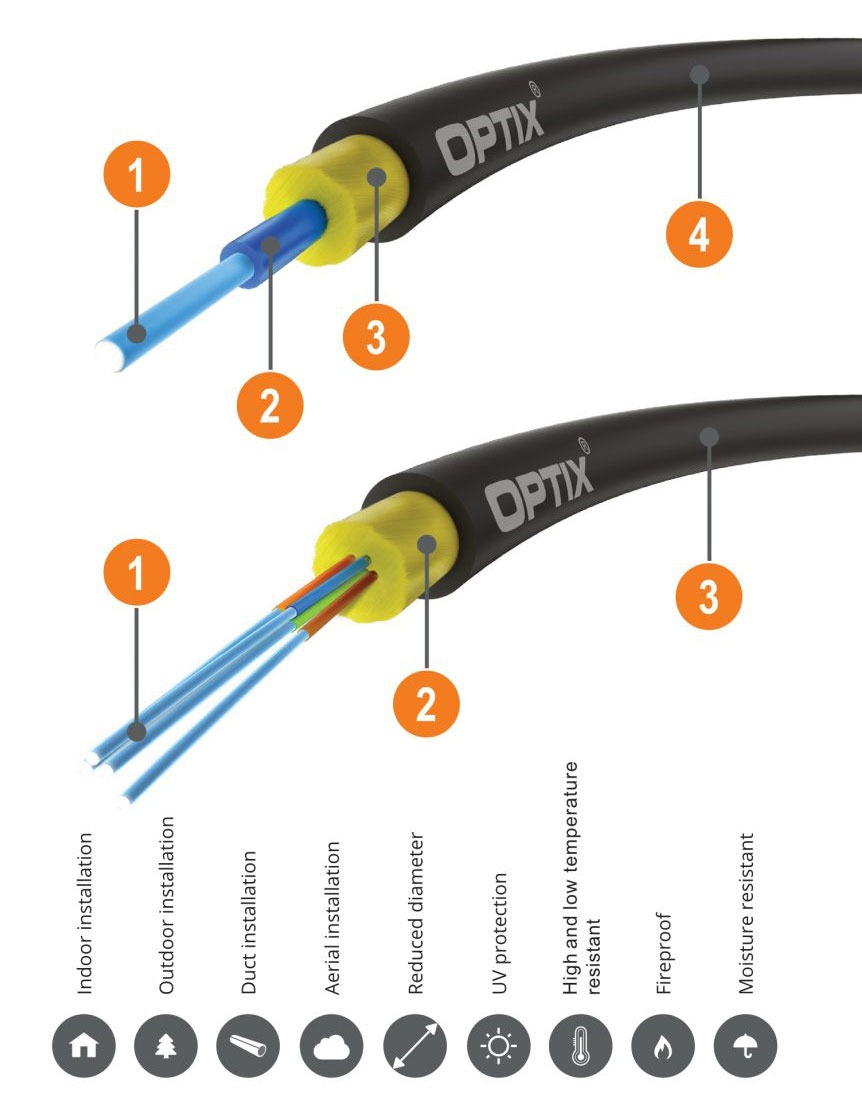

CABLE CONSTRUCTION 1F

Optical fibres in 0.25mm coating
Coloured buffer 0.9mm (semi-tight buffer)
Aramid yarns
FR Polyurethane outer jacket, UV Stabilized

CABLE CONSTRUCTION 2-12F

Optical fibres in 0.25mm coloured coating
Aramid yarns
FR Polyurethane outer jacket, UV Stabilized

The OPTIX AirFlow S-QOTKSdD cable is a universal (indoor-outdoor). round, self-supporting cable for usage in Fttx systems, strengthened by aramid yarns (supporting element in aerial installations), light construction with a diameter of ˜3mm, great flexibility and durability againstdragging, PU coat, UV resistant shell, fully dielectric, Installation tension strength:800N, temperature range between -20°C and +70°C, an equivalent to the S-QOTKSdD.

The construction has been designed for particularly good fibre protection and additionally for enabling easy leading and mounting of the cable. The G.657A2 fibres in use also offer a reduction of the bending radius (even up to 7.5mm). The cables are meant for aerial installation on a span of 80-100m and also in primary and secondary tele-technical canalisation by pneumatic (cable blowing) and mechanical (cable pulling) methods.

Product information
Cable version	The total amount of fibres [pcs]	Weight [kg/km] (±10%)	∅ Cable [mm] (±0.1)	∅ Tube	Supporting element/ Peripheral reinforcement	Reinforcing element	Coating material & thickness [mm] (±0.1)	Temp. range instalation	Temp. range operating transport	Minimum bending radius temporary permanent
OT1F	1	8.7	3.0	None	Aramid yarns		FR PU(0.75)	-10° to +60°C	-20° to +70°C	15D/10D
OT2F	2	7.5	3.0	None	Aramid yarns		FR PU(0.75)	-10° to +60°C	-20° to +70°C	15D/10D
OT4F	4	7.5	3.0	None	Aramid yarns		FR PU(0.75)	-10° to +60°C	-20° to +70°C	15D/10D
OT6F	6	8.0	3.2	None	Aramid yarns		FR PU(0.75)	-10° to +60°C	-20° to +70°C	15D/10D
OT12F	12	8.5	3.4	None	Aramid yarns		FR PU(0.75)	-10° to +60°C	-20° to +70°C	15D/10D

Mechanical parameters	EN standard	IEC standard	1F	2-4F	6-12F
Tensile Strength Installation(NESC Heavy)	EN187000	IEC 60794-1-2-E1	800N	800N	800N
Tensile Strength Operation(NESC Heavy)	EN187000	IEC 60794-1-2-E1	250N	250N	250N
Crushing resistance	EN187000, m.504	IEC 60794-1-2-E3	500N (100x100mm) for 60 sec.
Repeated bending	EN187000, m.507	IEC 60794-1-2-E6	30 cycles [(20xD), 1kg]

Więcej informacji
Producent	Optic
Ilość sztuk w opakowaniu zbiorczym	1000
GPSR kontakt	Inter Projekt S.A. Marszałkowska 68/72/26 00-545 Warszawa info@interprojekt.pl
