Name: Ubiquiti G2 Starter Kit Pro (UA-G2-SK-Pro)
Brand: Ubiquiti
SKU: UA-G2-SK-Pro
Price: 555.57 EUR
Availability: InStock

Detalles

Ubiquiti G2 Starter Kit Pro (UA-G2-SK-Pro)

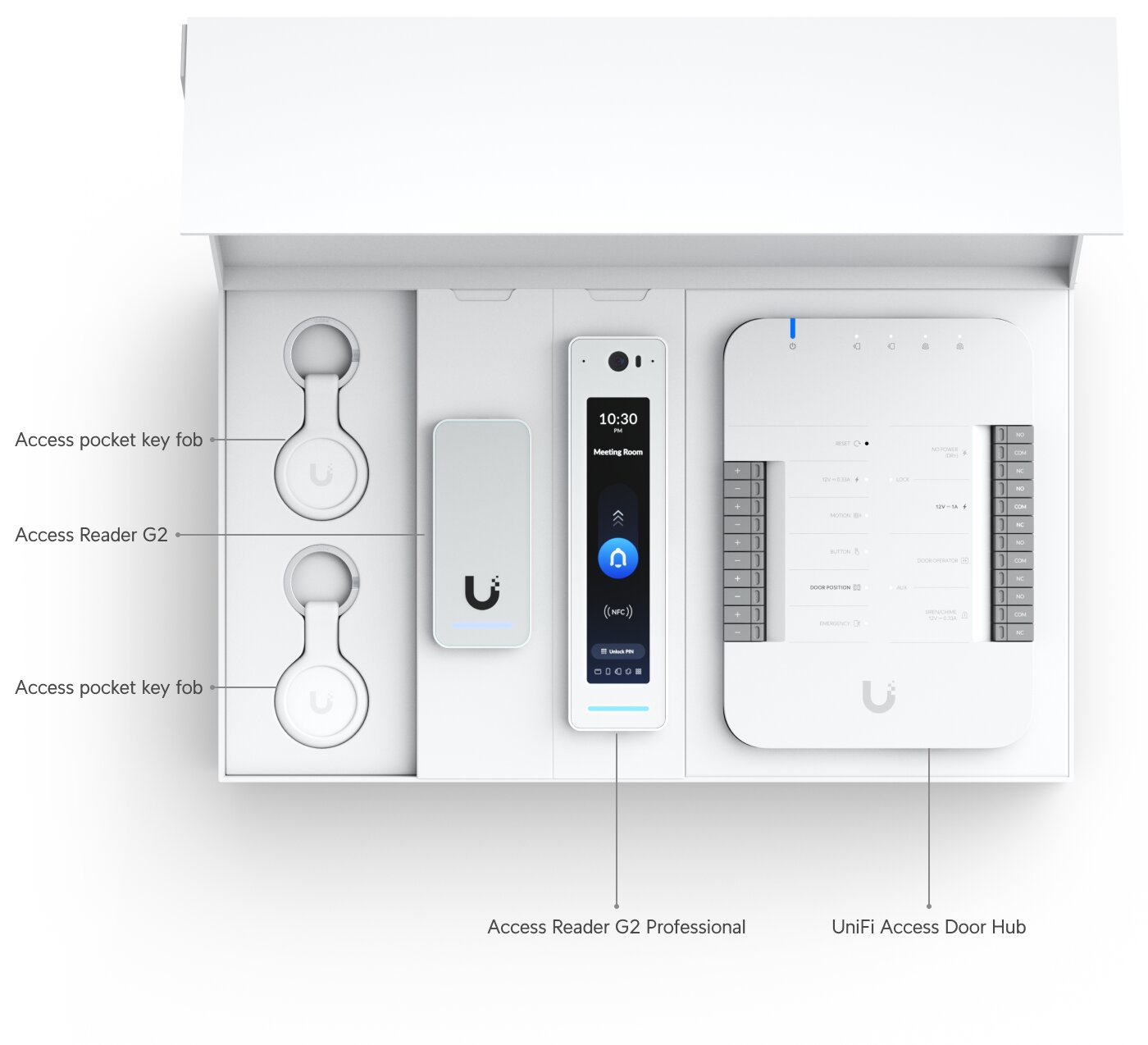

Starter kit providing full entry and exit control for a single door with two readers.

(1) Door Hub
(1) G2 Reader Pro
(1) G2 Reader for exit through door or entry through additional door (2nd Hub required)
(2) Pocket Keyfobs

Technical Specifications

UA-Hub-Door
Mecánica

Dimensiones

174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")

Peso

363 g (12.8 oz)

Material de cerramiento

Polycarbonate

Material de montaje

Polycarbonate

Hardware

Interfaz de red

(5) 10/100/1000 Base-T

Método Power

PoE++
UL 294 Power-limited Class 2 PSU
UL 60950/62368 LPS/PS2 PSU

Consumo máximo

Without PoE output: 30W
With PoE output: 50W

Entrada PoE

50V DC, 1A

PoE output

PoE passthrough, (4) PoE, 50V DC, total 20W

LEDs

White/blue (Learn more)

Botón

(1) Factory-reset

Entrada digital

Request to exit/request to enter/remote release/door position sensor

Relé de salida en seco

Lock: 30V DC, 1A
Aux: 30V DC, 1A

Relé de salida alimentado

Lock: 12V DC, 1A
Aux: 12V DC, 0.33A
12V DC, 0.33A

Entorno operativo

Indoor use only

Temperatura ambiente de funcionamiento

0 to 40° C (32 to 104° F)

Humedad ambiente de funcionamiento

5 to 95% noncondensing

Nivel UL 294

Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I

Declaración UL 294

Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grado

Grade assignment: 1

Certificaciones

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Número de documento y fecha de emisión y/o nivel de revisión

UA-Hub-Door002, V01

Wiring Information

Requisitos de calibre del cableado (AWG)

Longitud total hasta el dispositivo	Output load current at 12V DC
Longitud total hasta el dispositivo	100mA	250mA	500mA	1A
6.1 m (20 ft)	22	22	22	18
15.2 m (50 ft)	22	22	22	18
30.5 m (100 ft)	22	22	18	18

UACC-Cable-DoorLockRelay (18 AWG) is recommended.

Requisitos del cableado PoE

The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 24 AWG (0.21 mm ² ) for horizontal or riser cable.

UA-G2-Pro
Mecánica

Dimensiones

160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")

Peso

136 g (4.8 oz)

Material de cerramiento

Polycarbonate, glass

Material de montaje

Aluminum alloy

Montaje

Wall, gang box

Impermeabilización

IP55

Hardware

Interfaz de red

(1) GbE RJ45 port

Conectividad

BLE 4.2
NFC

Método Power

PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU

Rango de tensión soportado

48V DC

Consumo máximo

6W

ESD/EMP protection

Air: ±15kV, contact: ±8kV

Sensor

Proximity sensor

Camera view angle

H: 96.67°, V: 123.15°, D: 153.11°

Micrófono

Yes

Altavoz

(1) 4 ohm, 1.5W

LEDs

R/G/B/W/Amber (Learn more)

Botón

(1) Factory-reset

Frecuencia NFC

13.56 MHz

Alcance de lectura NFC

< 30 mm

Tecnología NFC

ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T

Entorno operativo

Outdoor use

Temperatura ambiente de funcionamiento

Device: -30 to 45° C (-22 to 113° F)
Display:* -10 to 45° C (14 to 113° F)
*The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v1.3.28)

Humedad ambiente de funcionamiento

5 to 90% noncondensing

Información sobre el software

The software version of a product can be checked at https://unifi.ui.com

Nivel UL 294

Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I

Declaración UL 294

Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

Requisitos del cableado PoE

Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm ² ) for patch cords; 24 AWG (0.21 mm ² ) for horizontal or riser cable.

CAN/ULC-60839-11-1 Grado

Grade assignment: I

Certificaciones

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Número de documento y fecha de emisión y/o nivel de revisión

UA-G2-Pro/UA-G2-Pro-Black, V02

UA-G2
Mecánica

Dimensiones

93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")

Peso

82 g (2.9 oz)

Material de cerramiento

Polycarbonate, glass

Montaje

In wall, gang box

Impermeabilización

IP55

Hardware

Interfaz de red

(1) 10/100 MbE RJ45 port

Conectividad

BLE 4.1

Método Power

PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU

Rango de tensión soportado

48V DC

Consumo máximo

5W

ESD/EMP protection

Air: ±15kV, contact: ±8kV

Sensores

Proximity sensor

Altavoz

(1) 8 ohm, 0.7W

LEDs

R/G/B/W

Botón

(1) Factory-reset

Frecuencia NFC

13.56 MHz

Alcance de lectura NFC

< 30 mm

Tecnología NFC

ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T

Entorno operativo

Outdoor use

Temperatura ambiente de funcionamiento

-30 to 45° C (-22 to 113° F)

Humedad ambiente de funcionamiento

5 to 90% noncondensing

Información sobre el software

The software version of a product can be checked at https://unifi.ui.com

Nivel UL 294

Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I

Declaración UL 294

Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

Requisitos del cableado PoE

Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm ² ) for patch cords; 24 AWG (0.21 mm ² ) for horizontal or riser cable.

CAN/ULC-60839-11-1 Grado

Grade assignment: I

Certificaciones

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Número de documento y fecha de emisión y/o nivel de revisión

UA-G2/UA-G2-Black, V02

UA-Pocket
Mecánica

Dimensiones

84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")

Peso

16 g (0.56 oz)

Material de cerramiento

Polycarbonate, stainless steel

Impermeabilización

IP54

Hardware

Frecuencia NFC

13.56 MHz

Tecnología NFC

ISO/IEC 14443 Type A
MIFARE DESFire EV3 4K
UniFi Access Proprietary Security Protocol

Temperatura ambiente de funcionamiento

-10 to 45° C (14 to 113° F)

Humedad ambiente de funcionamiento

10 to 90% noncondensing

Certificación

CE
